NT-201-G-WAN
NT-201-G-WAN
LoRaWAN Gateway
Features
- Built-in Media Tek smart 7688
- Open Source OpenWRT system
- Multi-Channels LoRaWAN gateway
- Support LoRaWAN station connection
- Supports Semtech Standard Packet Forwarder
- Managed and Configured by Web UI
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

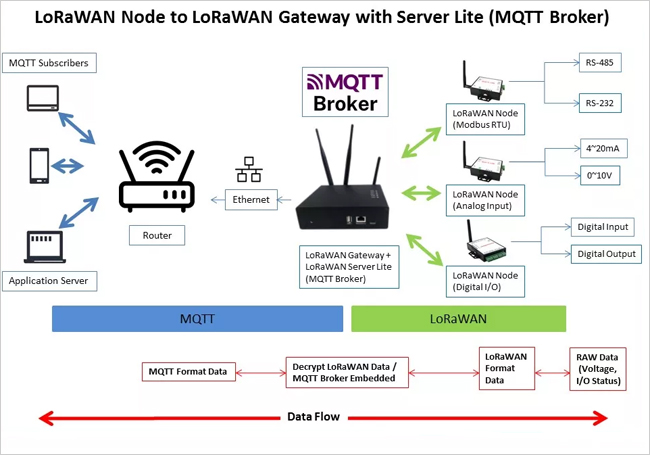

Application
Specification
| General | |
|---|---|
| System | CPU MT7688AN MIPS CPU, 580 MHz |
| RAM | 128M Bytes DDR2 RAM |
| ROM | 32M Bytes Flash ROM |
| Connectivity | |
| LoRa Interfaces | |
| Frequency Bands | US915, AU915, AS923, KR920 EU868, IN865, RU864, KZ865 |
| Sensitivity | -125dBm@125K/SF7 -139dBm@125K/SF12 |
| TX Power | Max. 27dBm |
| Ethernet |
10/100 M bps (Auto Detecting) Built-in 1.5KV Magnetic Isolation |
| Wi-Fi | 2.4G (AP modeforConfiguration only) |
| 4G LTE CAT1 or CAT4 (option) | LTE CAT1 module: SMICOM A7672SA 1.Data rate 1. Data rate :Uplinkupto 5Mbps, Downlink upto 10Mbps 2. LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 3. GSM/GPRS/EDGE 850/900/1800/1900mhZ LTE CAT4 module: SIMCOM SIM7500SA 1.Data rate: -Uplinkupto 50Mbps -Downlink upto 150Mbps 2.LTE-FDD B1/B3/B7/B8/B20 3.Dual-Band UMTS/HSDPA+ B1/B8 4.GSM/GPRS/EDGE 900/1800MHz Nano SIM socket x 1 Nano SD Card x 1 |
| Protocols | CP/IP, UDP, MQTT, Semtech UDP Packet Forwarder Supports DHCP, Static IP and DHCP Server Web browser for firmware upgrade, setting, management |
| Mechanical & Environment | |
| Operating Temperature | -10C~70C |
| Storage Temperature | :-20°C~80°C |
| Ambient Relative Humidit | 5%~95%, non-condensing |
| PCB Dimensions | 120mm x 90mm, Weight: 950gm |
| Power | DC-Jack, 12V/1A |
| LED | PWR/ST, LORA, WIFI, LTE, GPS |
| Warranty period: | 1 year |
| Order Information | LR-201-G-WAN: Gateway Model LR-201-G-WAN+4G: 4G Mode LR-201-SERVER-WAN: Gateway+Server Lite package |
