NT-201-DIO-U
NT-201-DIO-U
Digital Input/Output to LoRa
Features
- NT-201-DIO-WAN : LoRaWAN Digital I/O Controller
- CPU : 32 bits MCU, 160 MHZ, 400KB SRAM, 380KB Flash ROM
- Support : LoRaWAN 1.0.2col
- LoRa : Semtech SX1262
- Freq. : ISM band 8632 ~ 928MHz
- Receiver Sensitivity : -139 dBm
- Transmit Output Power : 22 dBm
- Deep Sleep Current : 10 uA
- TX current < 140 mA@20 dbm , RX current < 10 mA
- Antenna : SMA Type , 2 dBi , changeable
- Distance : Up To 1500 Meters in free space
- Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)
- Application mode : Star
- Introduction

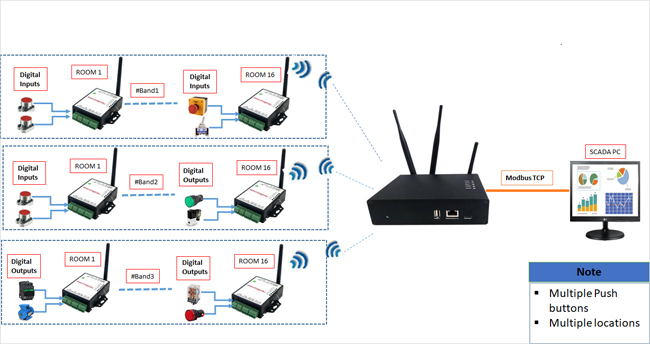

- Application
- Specification
- Download
- Get A Quote
Introduction
Application
Specification
| NT-201-DIO-WAN : LoRaWAN Digital I/O Controller | |
|---|---|
| General | |
| CPU | 32-bit MCU, 160 MHz, 400 KB SRAM, 380 KB Flash ROM |
| Protocol | Supports LoRaWAN 1.0.2 |
| LoRa Specifications | |
| Chipset | Semtech SX1262 |
| Frequency | ISM band 863 ~ 928 MHz |
| Receiver Sensitivity | -139 dBm |
| Transmit Power | 22 dBm |
| Deep Sleep Current | 10 µA |
| Current Consumption | TX < 140 mA @ 20 dBm, RX < 10 mA |
| Antenna | SMA type, 2 dBi, replaceable |
| Range | Up to 1500 m (free space) |
| Data Rate | 0.244 ~ 18.2 Kbps (LoRa) / 300 Kbps (FSK) |
| Application Mode | Star topology |
| Digital I/O | |
| Digital Input |
4 channels 3000 VDC isolation protection (Active High / Low selectable) Dry contact: 0 = close to GND, 1 = open Wet contact: 0 = 0 ~ 3 V, 1 = 10 ~ 30 V |
| Digital Output |
3 channels (relay, Active High / Low selectable) 120 VAC @ 0.5 A, 240 VAC @ 0.5 A, 24 VDC @ 1 A |
| Other Details | |
| Setup Tool | Windows utility |
| Power | DC 9 ~ 24 V / 150 mA @ 9 V, 60 mA @ 24 V |
| LED Indicators | SYS (red), Pairing (green), Rx (red), Tx (green) |
| Operating Temp | -10°C ~ 70°C |
| Storage Temp | -20°C ~ 85°C |
| Dimensions | 100 × 90 × 25 mm (W × D × H) |
| Weight | 150 g (excluding power) |
