NT-201-AIO-U
NT-201-AIO-U
LoRa to Analog Input + Output
Features
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

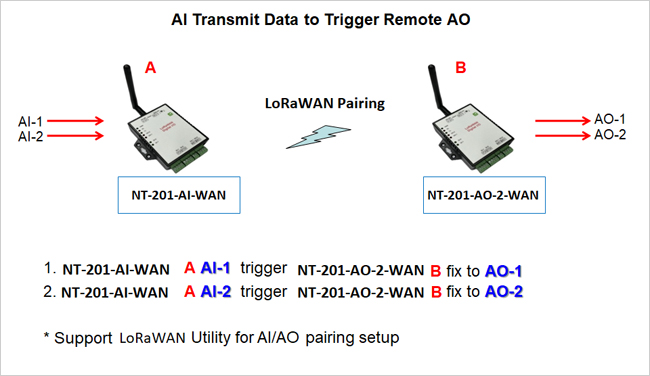

Application
Specification
| General | |
|---|---|
| CPU | ARM CORTEX M4 32-bits MCU, 200 MHz |
| ROM | 1024K Bytes Flash ROM |
| RAM | 512K Bytes SRAM |
| Connectivity - LoRa | |
|---|---|
| Module | Semtech LLCC68 |
| Frequency Bands | US915, AU915, AS923, KR920, EU868, IN865 |
| Sensitivity |
-129 dBm @125K/SF7 -137 dBm @125K/SF12 |
| Distance |
Up to 2–3 KM (free space, 3 dBi) 3–6 KM (9 dBi directional antenna) |
| Data Rate | 0.244 ~ 18.2 Kbps (LoRa) |
| TX Power | Max. 22 dBm |
| Current Consumption |
TX: < 140 mA @20 dBm RX: < 10 mA Deep Sleep: 3 µA |
| Antenna | SMA, 3 dBi, changeable |
| Topology | Star |
| Analog Input | |
|---|---|
| Input Channels | 8 |
| Input Range |
4 channels: 4–20 mA / 0–10V 4 channels: 0–10V |
| Resolution | 16 bits (TI chipset) |
| Sample Rate | 3 samples per second |
| Mechanical & Environment | |
|---|---|
| Operating Temperature | -10 ℃ ~ 70 ℃ |
| Storage Temperature | -20 ℃ ~ 80 ℃ |
| Dimensions | 100 mm × 90 mm × 25 mm |
| Weight | 130 g (excluding power) |
| Power | |
|---|---|
| DC Jack | 9 ~ 24V, 150 mA @12V, 60 mA @24V |
| LED | SYS (Green), Rx (Red), Tx (Green) |
| Warranty | |
|---|---|
| Warranty Period | 1 year |
| Order Information | NTS-201-AI-U |
