NT-201-AI-WAN
NT-201-AI-WAN
Analog Input To LoRaWAN
Features
- NT-201-AI-WAN : Analog Input To LoRaWAN
- Auto polling AnalogInput Sensor Data To LoRAWAN
- CPU : Xtensa@32-bit LX6 microprocessors 160M HX
- RAM :400K Bytes SRAM; ROM : 380K Bytes Flash ROM
- Support : LoRaWAN 1.0.2
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

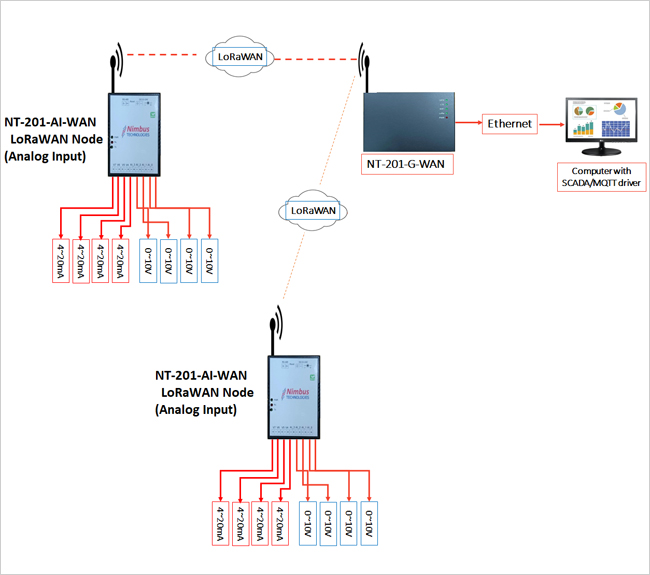

Application
Specification
| NT-201-AI-WAN : Analog Input to LoRaWAN | |
|---|---|
| General | |
| Features | Auto polling analog input sensor data to LoRaWAN |
| CPU | Xtensa® 32-bit LX6 microprocessor, 160 MHz |
| Memory | 400 KB SRAM, 380 KB Flash ROM |
| Protocol | Supports LoRaWAN 1.0.2 |
| LoRa Specifications | |
| Chipset | Semtech SX1262 |
| Frequency | ISM band 863 ~ 928 MHz |
| Receiver Sensitivity | -139 dBm |
| Transmit Power | 22 dBm |
| Deep Sleep Current | 10 µA |
| Current Consumption | TX < 140 mA @ 20 dBm, RX < 10 mA |
| Antenna | SMA type, 2 dBi, replaceable |
| Range | Up to 1500 m (free space) |
| Data Rate | 0.244 ~ 18.2 Kbps (LoRa) |
| Application Mode | Star topology |
| Analog Input | |
| Channels |
8 channels total: • 4 × (4–20 mA or 0–10 V selectable) • 4 × (0–10 V) |
| Resolution | TI chipset, 16-bit resolution |
| Sampling Rate | 3 samples/second (all 8 channels) |
| Other Details | |
| Setup Tool | Windows utility |
| Power | DC 9 ~ 24 V / 150 mA @ 9 V, 60 mA @ 24 V |
| LED Indicators | SYS (green), Rx (red), Tx (green), Paired (red) |
| Operating Temp | -10°C ~ 70°C |
| Storage Temp | -20°C ~ 80°C |
| Dimensions | 100 × 90 × 25 mm (W × D × H) |
| Weight | 150 g (excluding power) |
