NSM-316G
NSM-316G

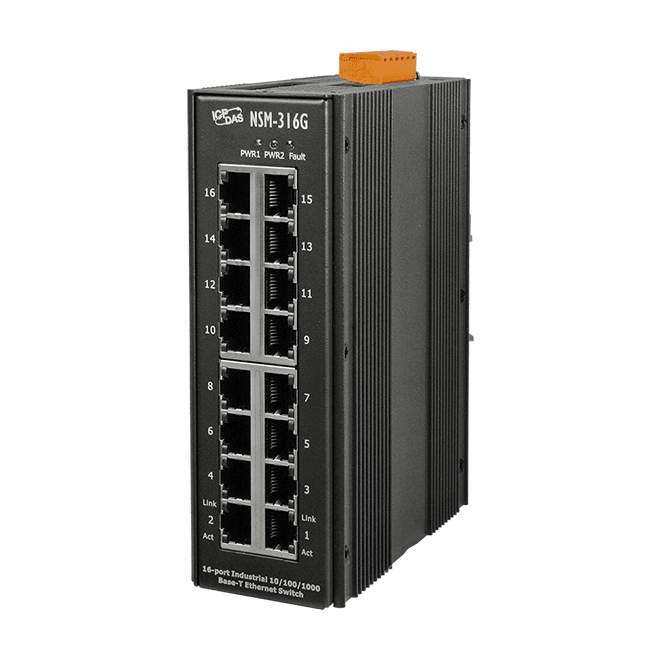

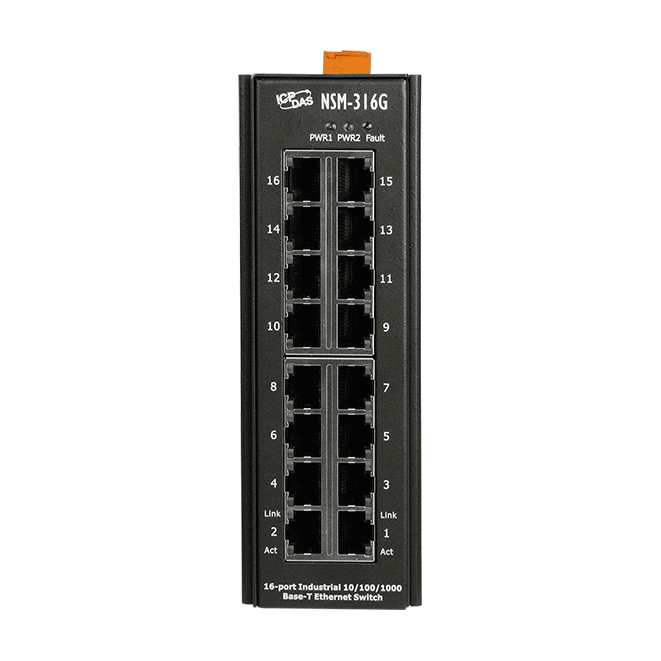

16-port GBE Ethernet Unmanaged Switch
Features
- Full Gigabit Ethernet ports
- Nonblocking architecture, line rate for all packet sizes
- Fully integrated packet buffer
- DIP switch alarm setting for Port’s break
- Power loss alarm
- Supports 9216 Byte jumbo frames
- Supports Auto Negotiation and Auto MDI/MDI-X
- Supports Dual +12 ~ 48 VDC power input and 1 relay output
- Supports operating temperatures from – 40 ~ +75°C
- DIN-Rail Mounting, Wall Mounting (optional)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NSM-316G is 16-port unmanaged full Gigabit Ethernet switch, Energy Efficient Ethernet™ (EEE) , Port’s loss link Break Alarm, Power loss Alarm.
Application
Specification
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, FAULT, Link, Act |
| Ethernet | |
|---|---|
| Ports | 16 x RJ-45, 10/100/1000Base-T |
| Standards |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; provides power savings during idle network activity |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 8 K |
| Frame Buffer Memory | 512 KByte |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Jumbo Frames | 9216 Byte |
| Isolation | 1500 Vrms, 1 minute |
| DIP Switch | Ports loss link alarm mask |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Console) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC |
| Redundant Power Inputs | Yes |
| Consumption |
0.20A @ 24VDC idle without loading; 0.43A @ 24VDC with full loading |
| Alarm Output | Yes, Relay 1 A @ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) |
DIN-rail mounting: 51 × 164 × 128 (W × L × H) Wall mounting: 51 × 202 × 120 (W × L × H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Ingress Protection Rating | IP30 |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
