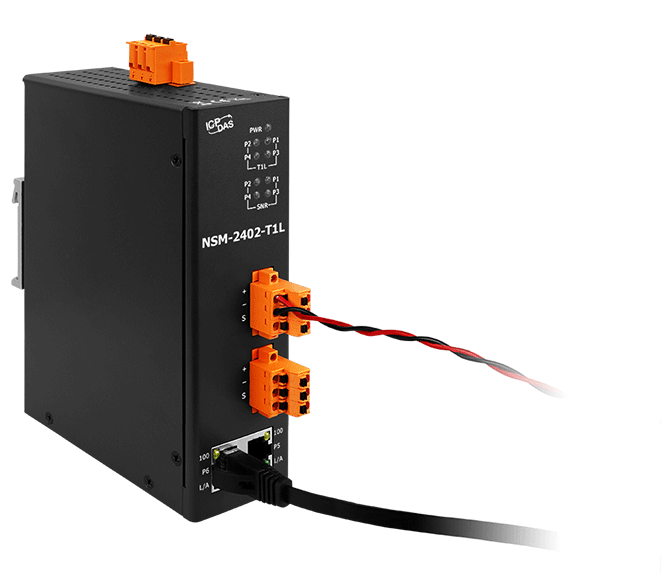

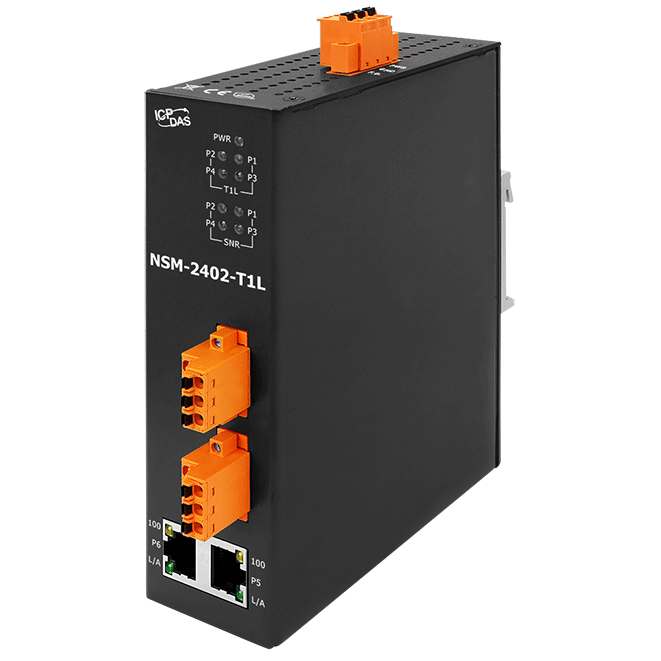

NSM-2402-T1L
NSM-2402-T1L
Unmanaged 2-port 100 Mbps and 4-port T1L Single Pair Ethernet Switch
Features
- 2-port RJ45 (10/100 Base-TX)
Supports Daisy-chain Topology
Supports LAN bypass - 4-port T1L (10 Base-T1L)
Independent LED indicators for SNR Quality
Up to 1000 m communication distance
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NSM-2402-T1L is a 2-port 10/100 Mbps and 4-port 10 Mbps T1L Ethernet Switch. The new architecture provides a communication distance far beyond that of traditional Ethernet, greatly expanding the scope of application.
Application
Specification
| LED Indicators | |
|---|---|
| Status | PWR, T1L L/A, T1L SNR |
| Ethernet | |
|---|---|
| Ports | 2 × 10/100Base-TX |
| Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX |
| LAN Bypass | Yes |
| T1L Communication | |
|---|---|
| Ports | 4 × 10Base-T1L |
| Standards | IEEE 802.3cg |
| Transmission Distance | 1000 m (max.) |
| Connector | 3-pin Spring Clamp |
| Cable Type | Shielded Twisted Pair (STP), 18 AWG ~ 24 AWG |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Consumption | 2.5 W (max.) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 44 × 172 × 139 (W × L × H) |
| Environment | |
|---|---|
| Operating Temperature | −25 °C ~ +75 °C |
| Storage Temperature | −40 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
