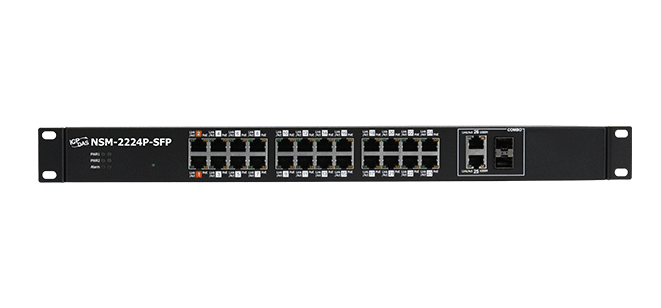

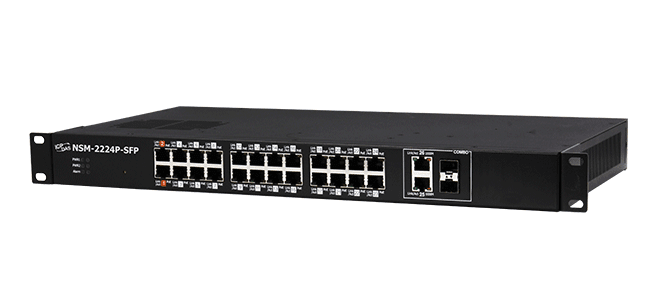

NSM-2224P-SFP

24-port 10/100 Mbps + 2 SFP Combo PoE (PSE) Ethernet Switch

Features

2x 100/1000 SFP /RJ45 Combo Port for Easy and Flexible Fiber Expansion.
24 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
Up to 30 watts per PoE port
1U Size
Ethernet Bypass for Port 1 & Port 2

Introduction
Application
Specification
Download
Get A Quote

Introduction

The NSM-2224P-SFP is 24-Port + 2G Combo PoE Ethernet Switch. Supports auto-negotiation, flow control and auto MDI/MDI-X function, providing up to 30W per port and independent PoE status LED can easily and quickly eliminate abnormalities.

Application

Specification

EMS Protection
EFT (IEC 61000-4-4)	± 1 kV
ESD (IEC 61000-4-2)	± 4 kV Contact

LED Indicators
Status	PWR1, PWR2, Fault, POE, Link/Act

Ethernet
Ports	24 × RJ-45, 10/100Base-TX 2 × 100/1000M Copper / SFP Combo
Standards	IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3x (Flow Control, Back Pressure Flow Control) IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet Energy Efficient Ethernet (EEE) as per 802.3az; provides power savings during idle network activity
Processing Type	Store & Forward
MAC Table	16K
Memory Bandwidth	4 Mbit
Frame Buffer Memory	1500 Vrms (1 minute)

PoE Technology
PoE Compliance	100% IEEE 802.3at compliant
PoE Power	Up to 30 watts per port
PoE Pin Assignments	V+ (pin 1, 2), V− (pin 3, 6), alternative A
PoE Voltage	+46 ~ +57 VDC depending on power input

Power
Reverse Polarity Protection	Yes
Input Range	48 ~ 57 VDC, Redundant Dual Input
Redundant Power Inputs	Yes
Consumption	0.25 A @ 48 VDC without PD loading, 21 A @ 48 VDC with PD full loading (30 W per port)
Alarm Output	Yes, Relay 1 A @ 30 VDC
