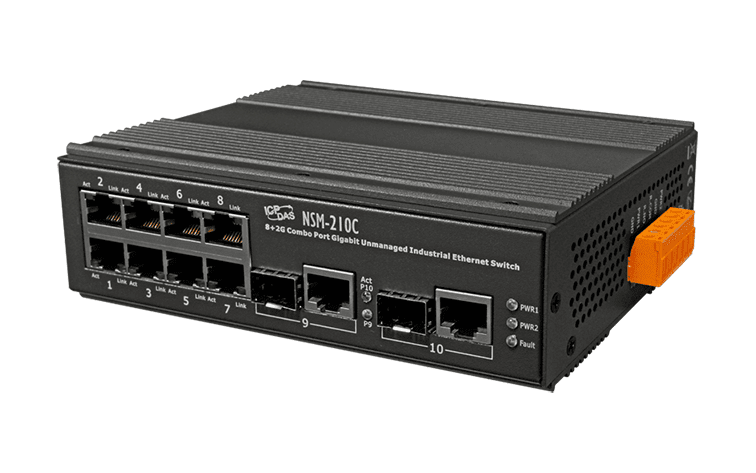

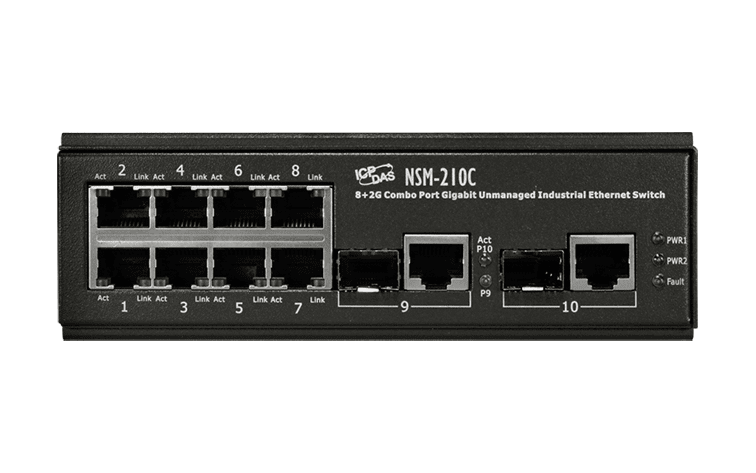

NSM-210C
NSM-210C
8 + 2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch
Features
- Up to 2 Gigabit uplinks and SFP slot for easy fiber expansion
- Supports Dual +12 ~ +48 VDC power input and 1 relay output
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NSM-210C is 8 Port 10/100 Base copper and 2 Gigabit fiber optic/copper combo port Ethernet Switch, Supports Auto Negotiation 、 Auto MDI/MDI-X 、high-speed(100 Mbps) and high-distance transmissions . Apart from this, NSM-210C supports dual power and provides a wide +12 VDC ~ +48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.
Application
Specification
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, FAULT, SFP & Gigabit Act, 8-Port 10/100 Link and Act |
| Ethernet | |
|---|---|
| Ports |
8 × RJ-45, 10/100Base-T(X) 2 × RJ-45 / SFP Slot Combo, 10/100/1000Base-T(X) |
| Standards |
IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3ab (1000Base-T) IEEE 802.3x (Flow Control) |
| MAC Table | 8 K |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x Flow Control, Back Pressure Flow Control |
| Isolation | 1500 Vrms (1 minute) |
| Fiber | |
|---|---|
| Ports | 2 × 1000 Mbps SFP Fiber Module Slots |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC (Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption |
0.15 A @ 24 VDC (Idle, without loading) 0.25 A @ 24 VDC (Full load) |
| Alarm Output | Yes, Relay 1 A @ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) |
DIN-rail mounting: 51 × 164 × 129 (W × L × H) Wall mounting: 51 × 202 × 122 (W × L × H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | −25 °C ~ +75 °C |
| Storage Temperature | −40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
