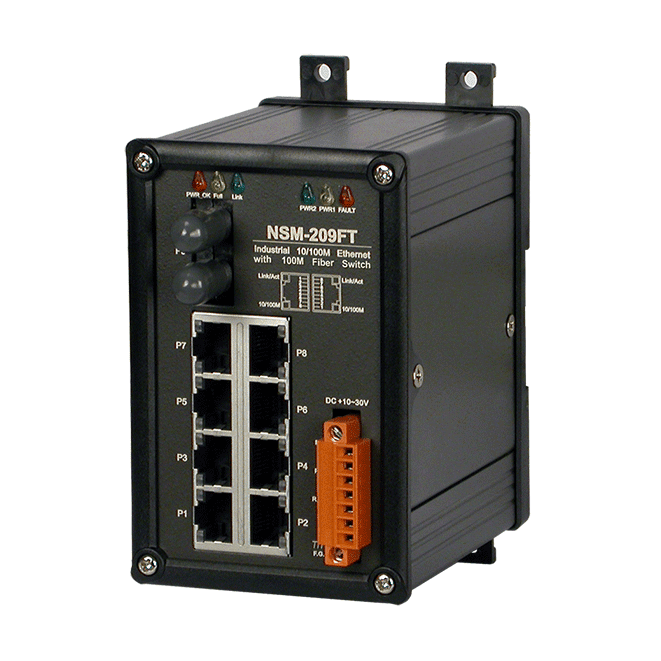

NSM-209FT
NSM-209FT
8-port 10/100 Mbps Ethernet with 1 fiber port Switch (Multi mode, ST connector) with metal case
Features
- Provides 1 x 100-FX fiber port plus 8 x Ethernet ports
- Each port supports both 10/100 Mbps speed auto negotiation
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Multi-mode, ST Connector Fiber supports
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NSM-209FT is a 8-port unmanaged Ethernet with 1 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions. The NSM-209FT provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
| Model | Fiber | Ethernet | Operation Temp. | Power Input | |||||
|---|---|---|---|---|---|---|---|---|---|
| Plastic Casing | Metal Casing | Mode | Port | Speed | Distance | Port | Speed | ||
| - | NSM-2105G-SFP
|
- | 1 x SFP LC |
100/ 1000M |
- | 5 | 10/100/ 1000 M |
-25 ~ +75 °C |
+12 ~ +48 VDC |
| NS-205FT
|
NSM-205FT
|
Multi-Mode | 1 x ST | 100 M | 2 km | 4 x RJ-45 | 10/100 M | 0 ~ +70 °C |
+10 ~ +30 VDC |
| NS-205FC
|
NSM-205FC
|
1 x SC | |||||||
| NS-205FCS
|
NSM-205FCS
|
Single-Mode | 15 km | ||||||
| NS-205AFT-T
|
NSM-205AFT-T
|
Multi-Mode | 1 x ST | 2 km | -30 ~ +75 °C |
+12 ~ +48 VDC |
|||
| NS-205AFC-T
|
NSM-205AFC-T
|
1 x SC | |||||||
| NS-205AFCS-T
|
NSM-205AFCS-T
|
Single-Mode | 30 km | ||||||
| NS-205AFCS-60T
|
NSM-205AFCS-60T
|
60 km | |||||||
| NS-206FT
|
NSM-206FT
|
Multi-Mode | 2 x ST | 2 km | 0 ~ +70 °C |
+10 ~ +30 VDC |
|||
| NS-206FC
|
NSM-206FC
|
2 x SC | |||||||
| NS-206FCS
|
NSM-206FCS
|
Single-Mode | 15 km | ||||||
| NS-206AFT-T
|
NSM-206AFT-T
|
Multi-Mode | 2 x ST | 2 km | -30 ~ +75 °C |
+12 ~ +48 VDC |
|||
| NS-206AFC-T
|
>NSM-206AFC-T
|
2 x SC | |||||||
| NS-206AFCS-T
|
NSM-206AFCS-T
|
Single-Mode | 30 km | ||||||
| NS-206AFCS-60T
|
NSM-206AFCS-60T
|
60 km | |||||||
| NS-209FT
|
>NSM-209FT
|
Multi-Mode | 1 x ST | 2 km | 8 x RJ-45 | -10 ~ +75 °C |
|||
| NS-209FC
|
NSM-209FC
|
1 x SC | |||||||
| NS-209FCS
|
NSM-209FCS
|
Single-Mode | 30 km | ||||||
| - | NSM-210C
|
- | 2 x RJ-45/ SFP LC |
100/1000M | - | -25 ~ +75 °C |
|||
Application
Specification
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, PWR_Fault, PWR_OK, Link/Act, 10/100M, Full duplex/Half duplex (Fiber Port) |
| Fiber | |
|---|---|
| Ports | 1 × 100 Base-FX, ST Connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125, or 100/140 µm |
| Distance | 2 km (62.5/125 µm recommended) for full duplex |
| Wavelength | 1300 or 1310 nm |
| TX Output |
−20 dBm (Min.) −14 dBm (Max.) |
| RX Sensitivity | −32 dBm |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Redundant Input) |
| Redundant Power Inputs | Yes |
| Consumption | 0.26 A @ 24 VDC |
| Alarm Output | Yes, Relay 1 A @ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 73 × 132 × 105 (W × L × H) |

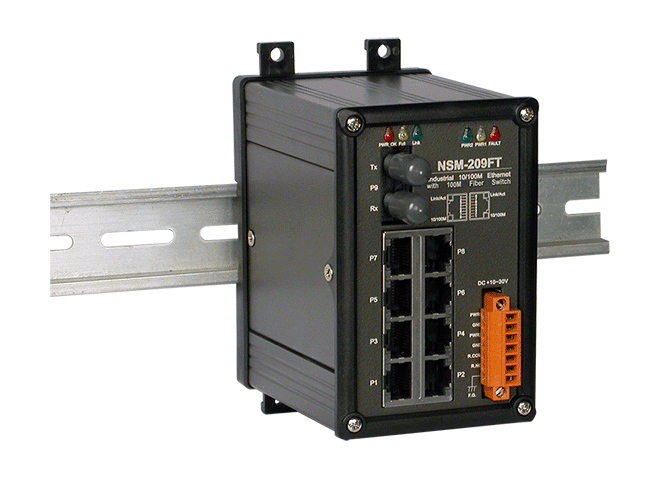

| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP20 |
| Environment | |
|---|---|
| Operating Temperature | −10 °C ~ +75 °C |
| Storage Temperature | −20 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
