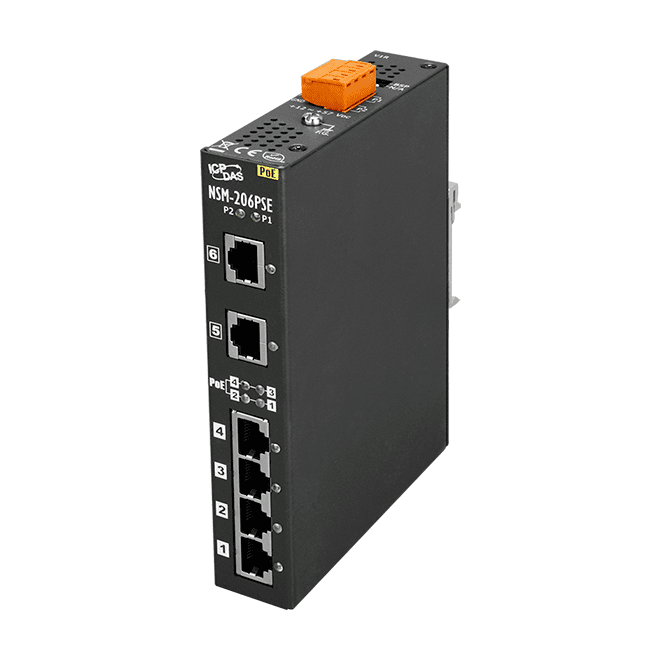

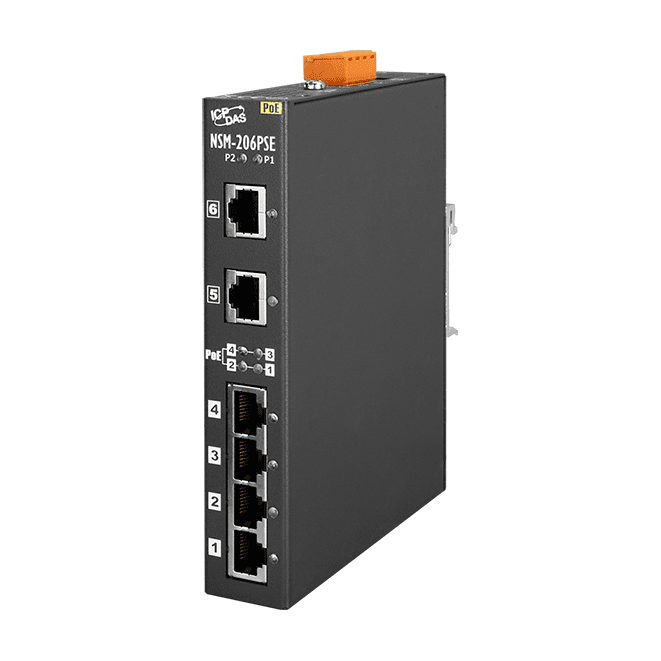

NSM-206PSE
NSM-206PSE
6-port 10/100 Mbps PoE(PSE) Ethernet、Power Supply Input +12 VDC ~ +57 VDC
Features
- 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
- IEEE 802.3af compliant PoE/PoE+PSE ports
- Supports 10/100 Mbps speeds per port Auto negotiation
- Broadcast Storm protection
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NSM-206PSE is 6-port unmanaged Ethernet switch supporting Power-over-Ethernet on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the NSM-206PSE enable centralization of the power supply, providing up to 30 watts. The NSM-206PSE can be used to power IEEE 802.3af/at standard devices (PD).
Application
Specification
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, POE, Link/Act, Speed |
| Ethernet | |
|---|---|
| Ports | 6 × RJ-45, 10/100Base-TX |
| Standards |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow Control / Back Pressure IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet (PoE+) IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Processing Type | Store & Forward; Wire-Speed Switching |
| MAC Table | 2048 Entries |
| Frame Buffer Memory | 768 Kbit |
| Isolation | 1500 Vrms (1 minute) |
| DIP Switch | Broadcast Storm Protection |
| PoE Technology | |
|---|---|
| PoE Compliance | 100% IEEE 802.3at Compliant |
| PoE Power | Up to 30 W per Channel |
| PoE Operation | Automatic Detection and Power Management |
| PoE Pin Assignments | V+ (Pin 1, 2), V− (Pin 3, 6) |
| PoE Disconnect Mode | DC Disconnect |
| PoE Voltage | +52 VDC |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 57 VDC, Redundant Dual Input |
| Redundant Power Inputs | Yes |
| Consumption |
0.125 A @ 12 VDC (without PD loading) 6.2 A @ 24 VDC (with PD full loading, 15.4 W per port) 0.15 A @ 24 VDC (without PD loading) 5.8 A @ 24 VDC (with PD full loading, 30 W per port) 0.10 A @ 48 VDC (without PD loading) 2.9 A @ 48 VDC (with PD full loading, 30 W per port) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) |
DIN-rail mounting: 28 × 160 × 119 (W × L × H) Wall mounting: 28 × 199 × 112 (W × L × H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, Non-condensing |
