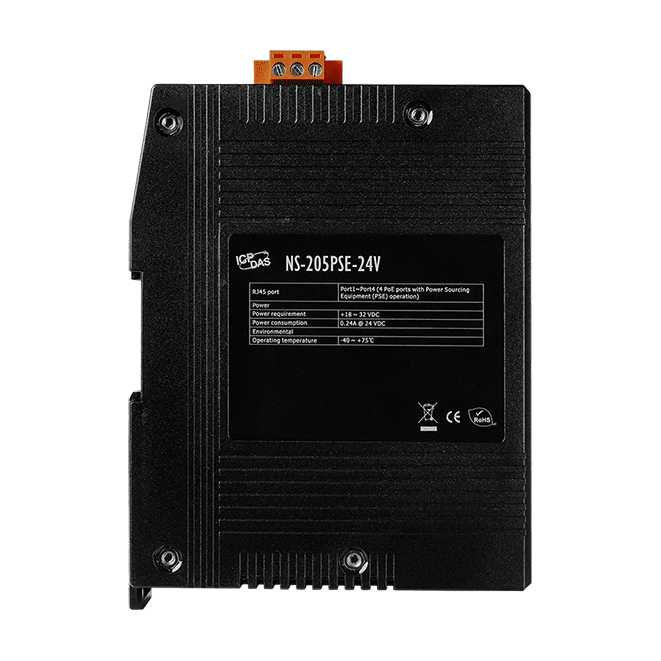

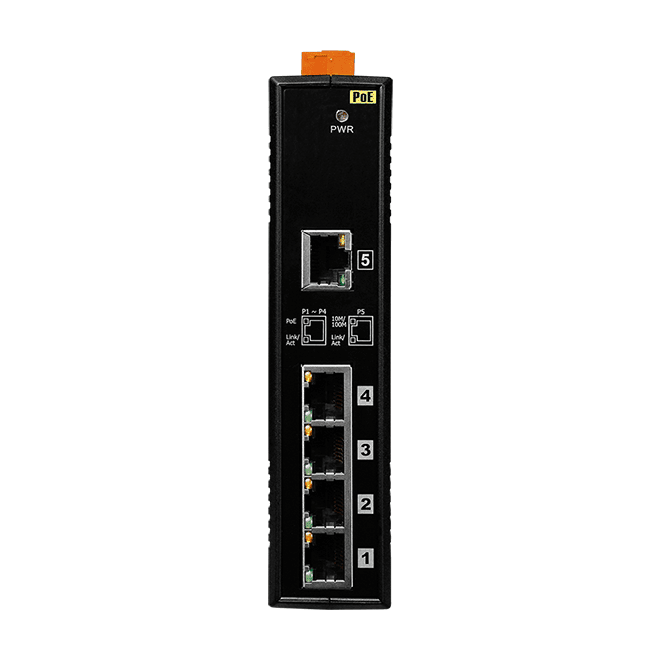

NS-205PSE-24V
NS-205PSE-24V
5-port 10/100 Mbps PoE (PSE) Ethernet Switch with +24 VDC Input
Features
- Provides 5 x 10/100Base-TX Ethernet ports
- 4 PoE/PoE+PSE ports, fully compliant with IEEE 802.3af/at standards
- Power Input +12 VDC ~ +32 VDC
- DIN-Rail Mounting
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NS-205PSE-24V is a 5-port unmanaged PoE (Power over Ethernet) Industrial Ethernet switch; it supports 4 PoE ports which are classified as power source equipment (PSE). The NS-205PSE-24V makes centralized power supply come true and provides up to 15.4 watts of power per PSE port. Ethernet switch are designed with boost for PoE application where +48 VDC power supply is not available.
| Unmanaged PoE Switch | ||||||
|---|---|---|---|---|---|---|
| Model | Ethernet | PoE | EN50155-certified | Power Input | ||
| Plastic Casing | Metal Casing | Port | Speed | |||
| NS-205PSE | - | 5 x RJ-45 | 10/100 M | 4 x PSE | - | +46 ~ +55 VDC |
| NS-105PSE | - | |||||
| NS-205PSE-24V | NSM-205PSE-24V | +12 ~ +32 VDC | ||||
Application
Specification
| LED Indicators | |
|---|---|
| Status | Power, Link/Act, 10/100M, Power Device is detected |
| Ethernet | |
|---|---|
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3af (Power over Ethernet) |
| Processing Type | Store & forward |
| MAC Table | 2K |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
|---|---|
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
| PoE Voltage | +48 VDC |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +32 VDC |
| Consumption |
0.24 A @ 24 VDC without PD loading 3.2 A @ 24 VDC with PD full loading |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
| Installation | DIN-rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
