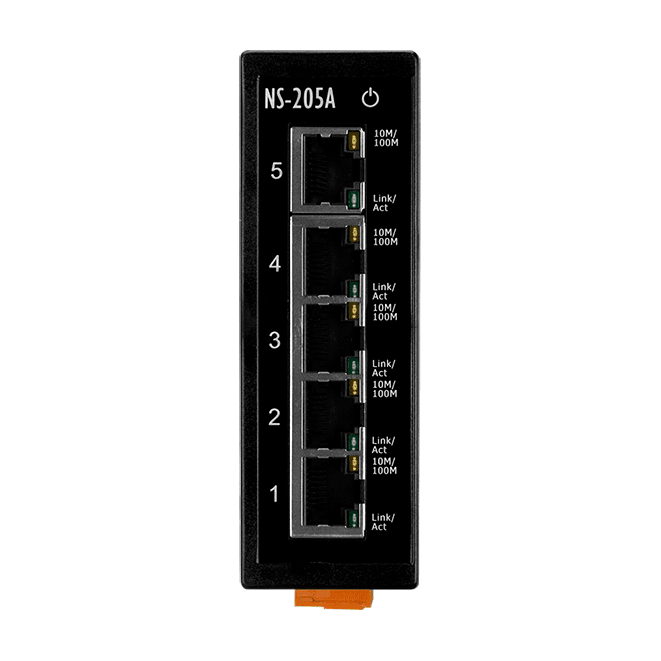

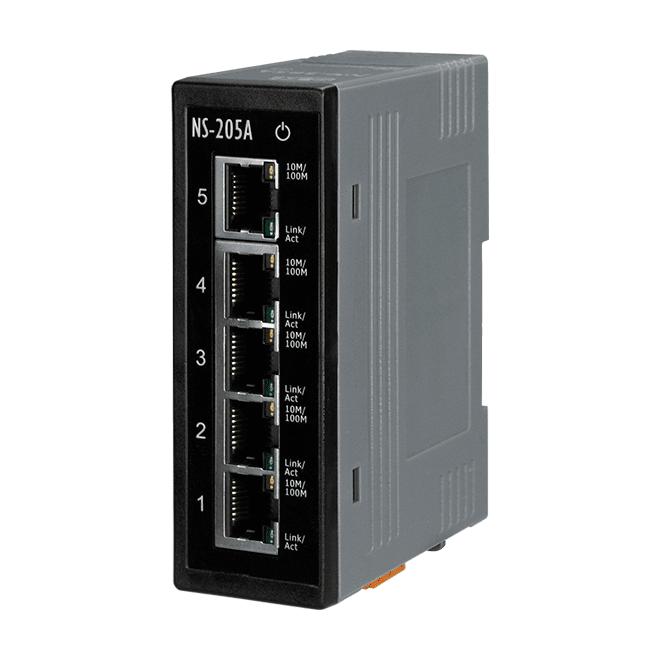

NS-205A
NS-205A
Unmanaged 5-port Industrial 10/100 Mbps Ethernet Switch, +12 VDC ~ +56 VDC
Features
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Slim packaging fits on your DIN-Rail Mounting
- Each port supports both 10/100 Mbps speed auto negotiation
- Supports +12 VDC ~ +56 VDC
- Supports operating temperatures from -40 °C ~ +75 °C
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
TThe NS-205A has 5 Ethernet Switching ports that support 10/100 Base-TX, with a 10/100M autonegotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45. It contains "soft start" function with overload protection, high-low voltage protection. The width of theNS-205A is just 33 mm, so it can be used where space is limited.
The NS-205A provides +12 VDC ~ +56 VDC power input to fit various power source.
| Unmanaged Switch | |||||
|---|---|---|---|---|---|
| Model | Ethernet | EN50155-certified | Power Input | ||
| Plastic Casing | Metal Casing | Port | Speed | ||
| NS-205-IP67 | - | 5 x IP67 RJ-45 | 10/100 M | - | +10 ~ +30 VDC (Isolated) |
| NS-205 | - | 5 x RJ-45 | +10 ~ +30 VDC | ||
| NS-205R (Note 1) | - | ||||
| NS-205A | - | +12 ~ +56 VDC | |||
| NS-105A | - | +12 ~ +53 VDC | |||
| NS-205G | - | 10/100/1000 M | +10 ~ +30 VDC | ||
| NS-205AG | - | +12 ~ +48 VDC | |||
Application
Specification
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ± 1 kV |
| ESD (IEC 61000-4-2) | ± 4 kV (Contact) |
| LED Indicators | |
|---|---|
| Status | Power, Link/Act, 10/100M |
| Ethernet | |
|---|---|
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 2048 |
| Frame Buffer Memory | 768 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +56 VDC (Non-isolated) |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
