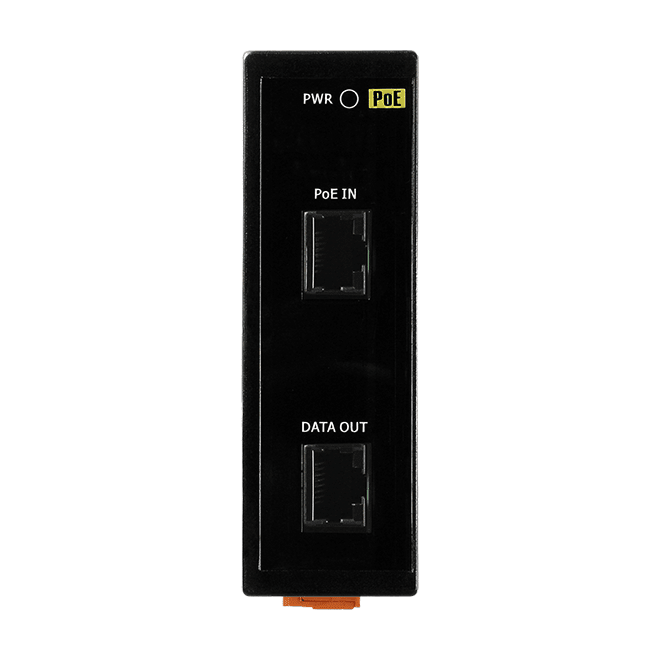

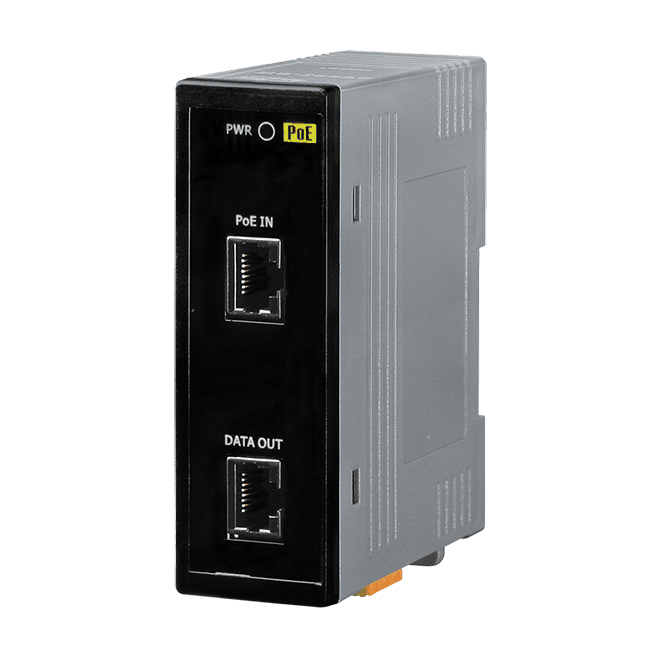

NS-200PS
NS-200PS
Industrial PoE Splitter
Features
- Supports 10/100/1000 Base-TX for PoE in and Data out
- IEEE 802.3af compliant split power/data from PoE equipment
- Power isolation and short circuit protection for power output
- Supports output power up to 10 W at 24 VDC
- Slim packaging fits on your DIN-Rail Mounting
- Supports operating temperatures from -40 °C ~ +75 °C
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NS-200PS plays the role of PD, and splits the data signal and power signal that are transmitted from the PSE. The NS-200PS plays a dual role of providing power to industrial devices, and enabling Ethernet connections.

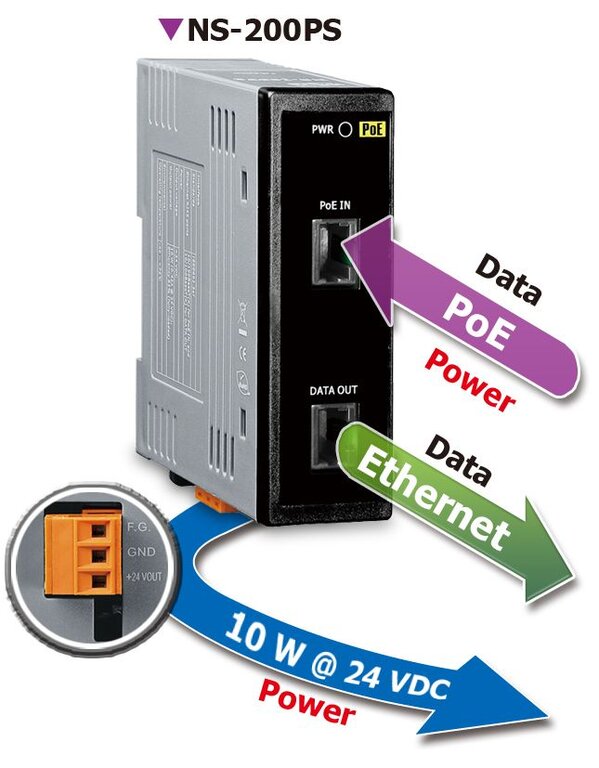

Application
Specification
| Ethernet | |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3af (Power over Ethernet) |
| PoE Technology | |
|---|---|
| Type | Powered Device (PD) |
| PoE Operation | Automatic detection and classification (power is accepted on either the signal or unused pairs) |
| PoE Voltage | +46 VDC ~ +54 VDC |
| Output | |
|---|---|
| DC Voltage | 24 VDC |
| Rated Power | 10 W |
| Rated Current | 0.42 A |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 × 107 × 78 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 % ~ 90 % RH, non-condensing |
