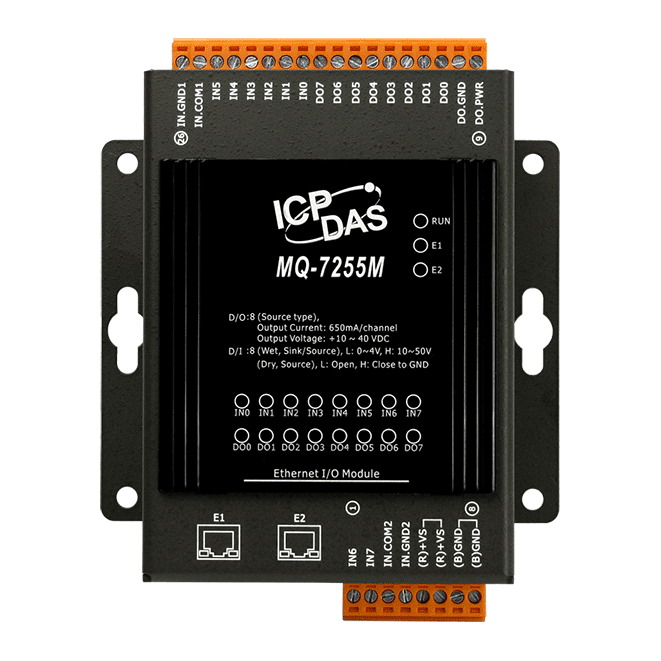

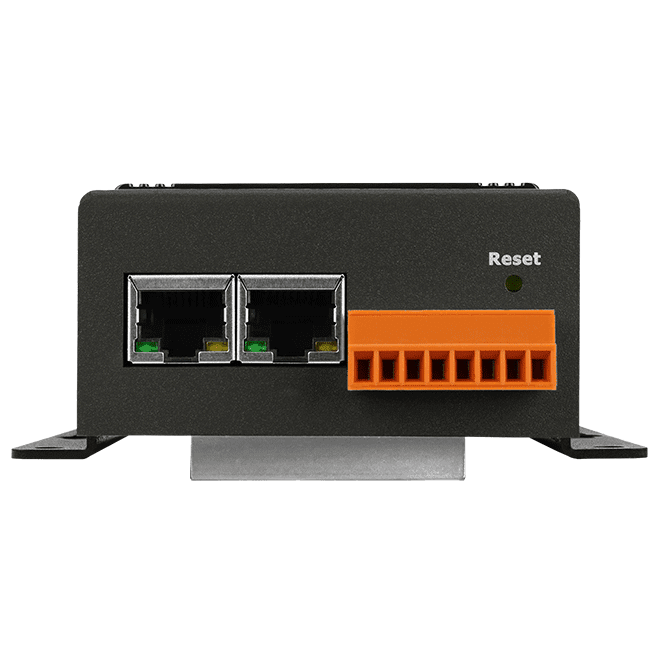

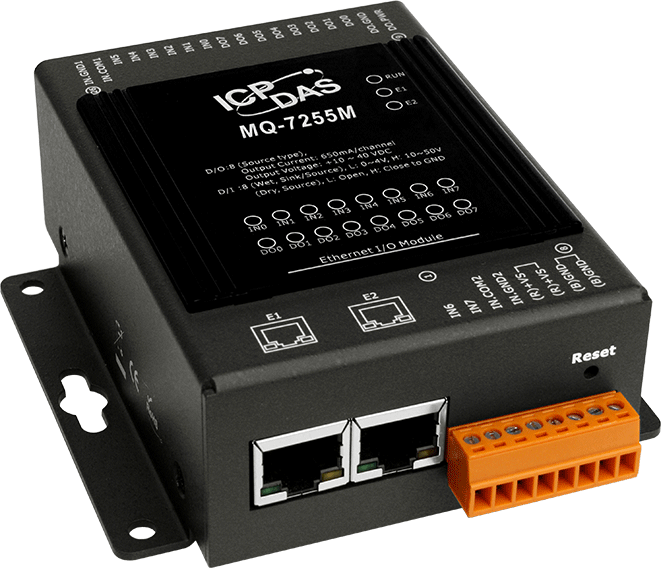

MQTT I/O Module with 8-ch DI (Dry, Wet) and 8-ch DO (Source)
Features
- Built-in Web Server
- Web HMI
- Support Modbus TCP and MQTT Protocols
- 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
- Dual Watchdog
- Built-in I/O
- DI: 8 Channels
- DO: 8 Channels
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

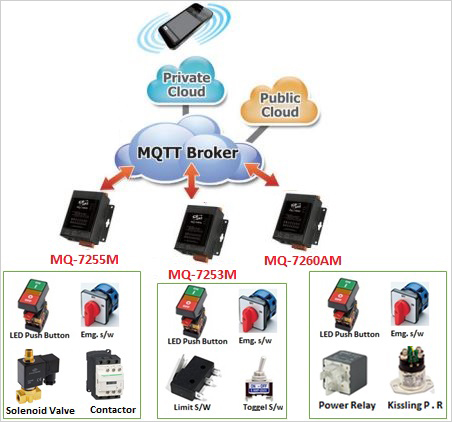

The MQ-7255M is an Ethernet I/O device equipped with 8-channel DI and 8-channel DO, as well as the MQTT and Modbus TCP protocols, which are supported for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. A web-based user interface is provided to configure the module, monitor the network connection status and I/O status, and control digital output channels on the module via a normal web browser on a mobile device or computer.
The MQ-7255M features optical isolation for 2500 VDC of transient overvoltage protection but doesn't provide channel-to-channel isolation. Each output channel can drive up to 650 mA load, together with configurable power-on value and safe value. It can safely be used in applications where hazardous voltages are present.
| Model | DI | DO | |||||
|---|---|---|---|---|---|---|---|
| Channels | Type | Sink/Source | Channels | Type | Sink/Source | Max. Load Current @ 25 °C | |
| MQ-7244M | 8 | Wet | Sink/Source | 8 | Open Collector | Sink | 650 mA/Channel |
| MQ-7252M | Wet | Source | |||||
| MQ-7255M | Dry, Wet | Source | |||||
| MQ-7251M | 16 | Wet | Sink/Source | – | – | – | – |
| MQ-7253M | Dry | Source | |||||
| MQ-7260AM< | 6 | Dry, Wet | Sink/Source | 6 | Power Relay | Form A | 5A |
