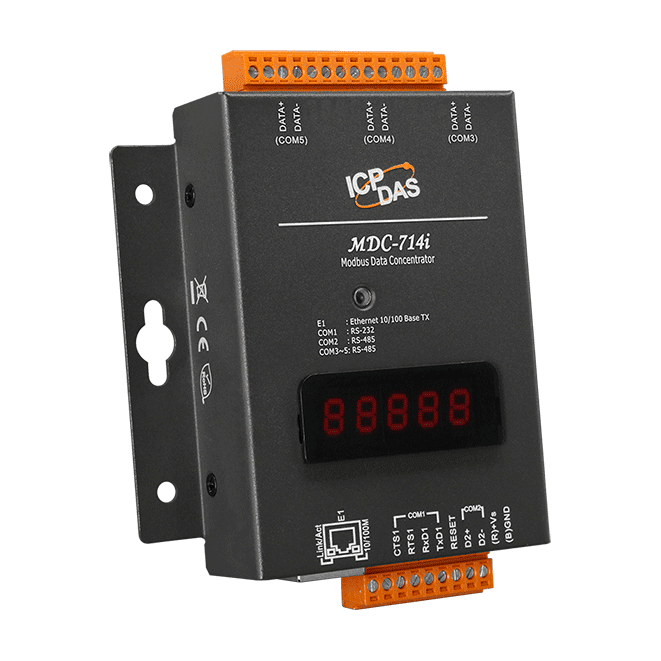

MDC-714 series
MDC-714 series
Modbus data concentrator with Ethernet, RS-232 and RS-485 interfaces
Features
- Supports Modbus master/slave on the serial port and Modbus TCP slave on the Ethernet interface
- Supports up to 8 simultaneous Modbus TCP connections at one time
- Data pool for up to 9600 registers
- Modbus polling commands for up to 250 definitions
- Easy configuration with a simple CSV file for quick start-up
- HTML5 Web-based user interface
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
MDC-700 provides Ethernet, RS-232 and RS-485 communication interfaces to integrate RS-232/RS-485 Modbus Slave devices into Ethernet. Through the user-defined command table, the MDC-700 will read the data of the devices connected to each COM port sequentially and merge them into a continuous address format, which is convenient for the host computer to read all the data at once.
| Modbus Data Concentrator | ||||||||
|---|---|---|---|---|---|---|---|---|
| Series | Model | Wireless | Data Logger | Wired | ||||
| Standard | Frequency | Special I/O | Data Logger | Ethernet | RS-232 | RS-485 | ||
| MDC-700 Series | MDC-711 | – | – | – | – | 10/100M | 1 | 1 |
| MDC-714 | – | – | – | – | 1 | 4 | ||
| MDC-714i | – | – | – | – | 1 | 1 (non-isolated) 3 (isolated) |
||
| MDC-741 | – | – | – | – | 4 | 1 | ||
| MDC-771 | – | – | – | – | 7 | 1 | ||

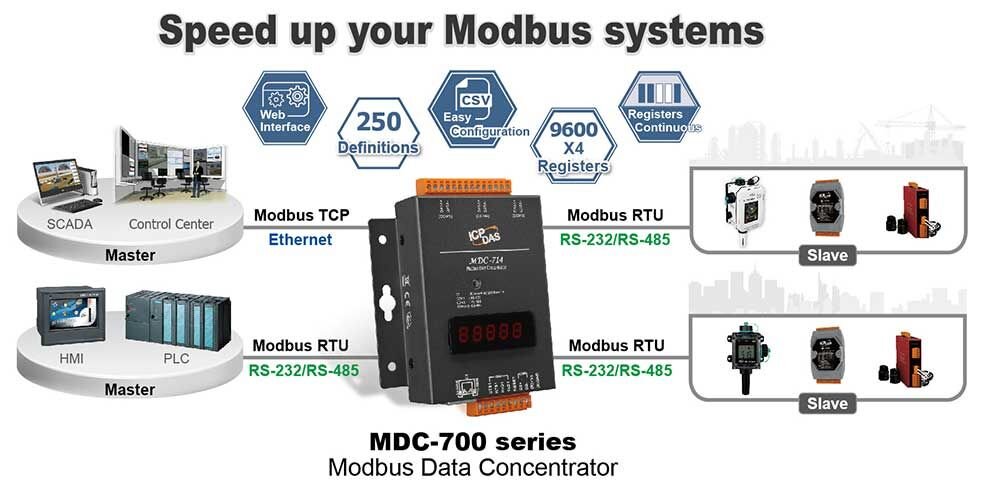

Application
Specification
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
|---|---|
| Status | 1 x System, to display heart beat |
| Ethernet | |
|---|---|
| Ports | x1, 10/100 Base-TX |
| Protocol | Modbus/TCP Slave |
| COM Ports | |
|---|---|
| Ports |
MDC-711: 1 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-714: 1 x 5-wire RS-232, 4 x 2-wire RS-485 MDC-714i: 1 x 5-wire RS-232, 1 x 2-wire RS-485, 3 x 2-wire RS-485 (2500 VDC Signal Isolation) MDC-741: 4 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-771: 1 x 5-wire RS-232, 6 x 3-wire RS-232, 1 x 2-wire RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master / Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-232/485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 102 mm x 125 mm x 28 mm (W x H x D) |

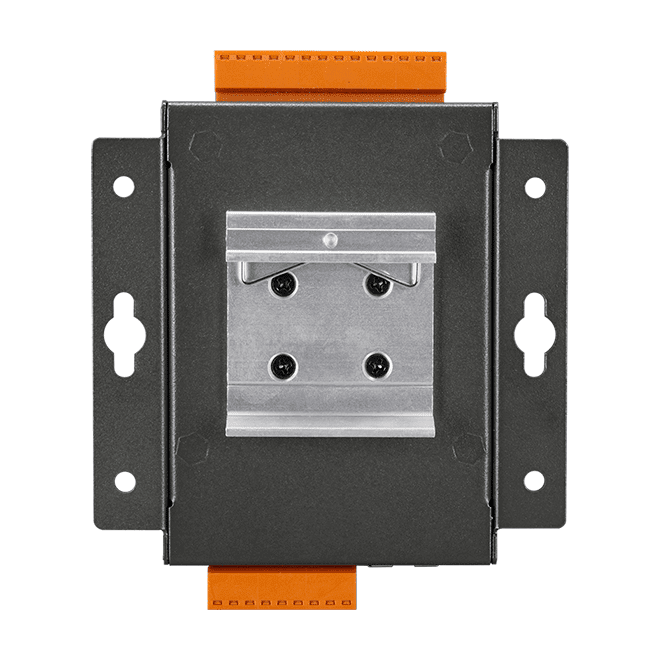

| Installation | Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
