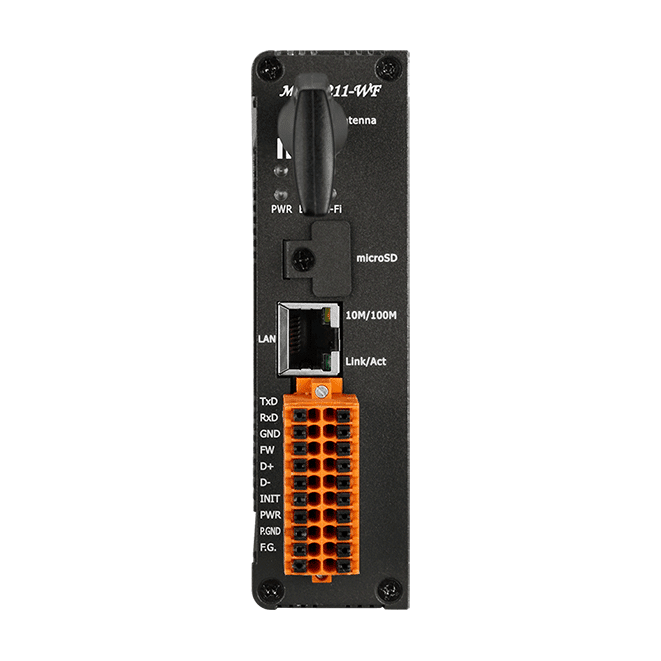

MDC-211-WF

MDC-211-WFP

Wi-Fi Modbus Data Concentrator (Asia Only)

Features
  • Compatible with IEEE 802.11 a/b/g/n standards
  • Support Infrastructure and Limit-AP mode
  • Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
  • Support Ethernet, RS-232/485 and Wi-Fi interfaces
  • Support Web-based UI Operations
  • Support the Modbus TCP/RTU protocol
  • Support 240 Modbus Polling Commands
  • Supports 9600 Modbus Registers for DI/DO/AI/AO

  • Introduction
  • Application
  • Specification
  • Download
  • Get A Quote

Introduction

MDC-211-WF Modbus data concentrator developed by ICP DAS, with Ethernet, WiFi Wireless, RS-232 and RS-485 communication interfaces, can link the Modbus RTU devices to the Ethernet network. MDC-211-WF can read the data of Modbus RTU device according to the user-defined command table, and integrate the data of different Modbus RTU devices into the format of the continuous address so that the remote monitor host can connect to MDC-211-WF from Ethernet to access the data of multiple Modbus RTU devices at once.


Application



PMD-2201-E

Specification



Wi-Fi
Standard IEEE 802.11a/b/g/n
Mode Limit-AP / Infrastructure
Frequency 2.4 GHz
5 GHz
Protocol Modbus TCP Slave
Encryption Open / WEP / WPA / WPA2
Channels 2.4 GHz: CH1–11
5 GHz: CH36, 40, 44, 48
Antenna Omni-Directional
3 dBi @ 2.4 GHz
5.5 dBi @ 5 GHz
Ethernet
Ports 1 × RJ-45, 10/100Base-T(X)
Protocol Modbus TCP Slave
Configuration Web-based User Interface
COM Ports
Ports 1 × RS-232
1 × RS-485
Baud Rate 1200 ~ 115200 bps
Protocol Modbus RTU Master / Slave
Polling Definition Up to 240 Modbus command definitions for all Wi-Fi / RS-232 / RS-485 ports
Power
Input Range +10 VDC ~ +30 VDC
Mechanical
Casing Metal
Dimensions (mm) 33 × 120 × 116 (W × L × H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

MDC-211-WF MDC-211-WF
