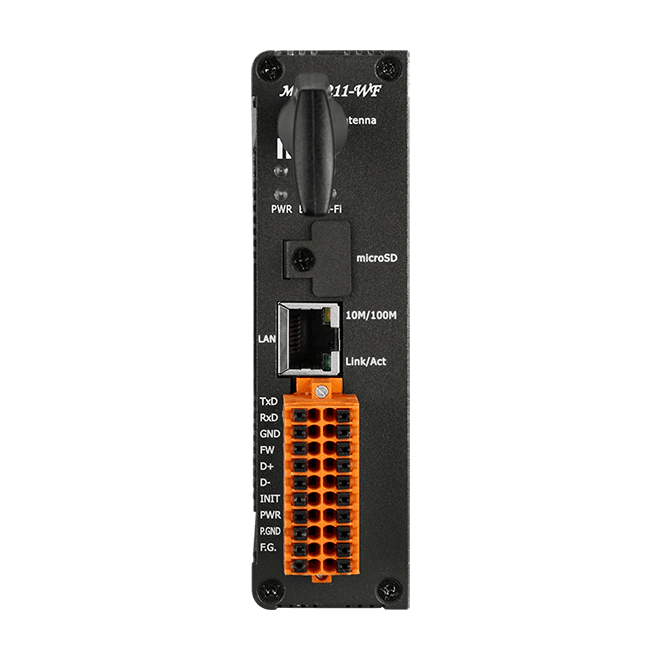

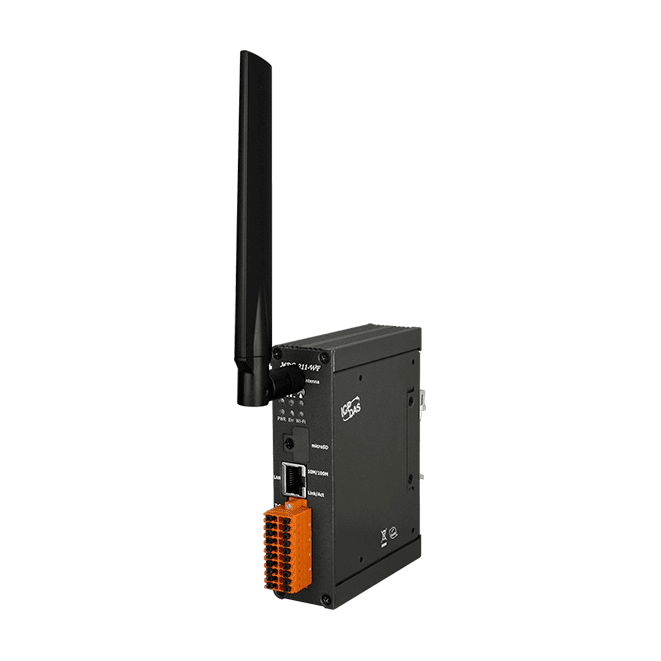

MDC-211-WF
MDC-211-WF
Wi-Fi Modbus Data Concentrator (Asia Only)
Features
- Compatible with IEEE 802.11 a/b/g/n standards
- Support Infrastructure and Limit-AP mode
- Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
- Support Ethernet, RS-232/485 and Wi-Fi interfaces
- Support Web-based UI Operations
- Support the Modbus TCP/RTU protocol
- Support 240 Modbus Polling Commands
- Supports 9600 Modbus Registers for DI/DO/AI/AO
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

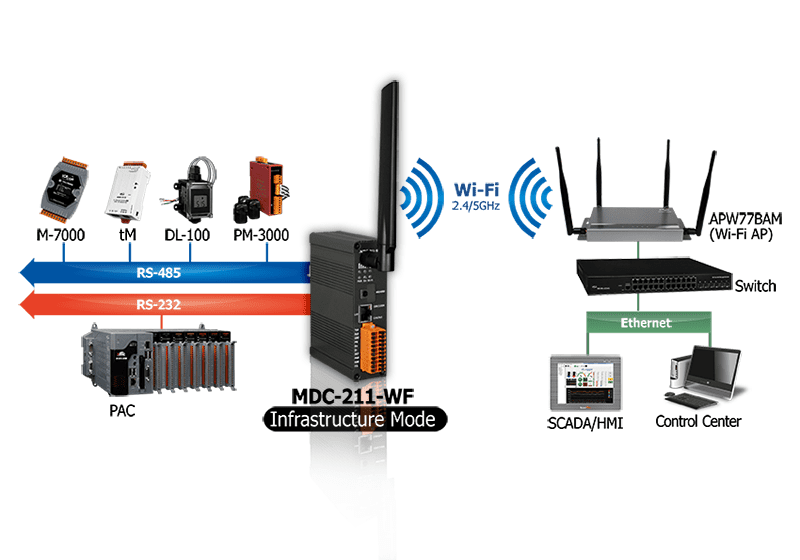

MDC-211-WF Modbus data concentrator developed by ICP DAS, with Ethernet, WiFi Wireless, RS-232 and RS-485 communication interfaces, can link the Modbus RTU devices to the Ethernet network. MDC-211-WF can read the data of Modbus RTU device according to the user-defined command table, and integrate the data of different Modbus RTU devices into the format of the continuous address so that the remote monitor host can connect to MDC-211-WF from Ethernet to access the data of multiple Modbus RTU devices at once.
| Modbus Data Concentrator | ||||||||
|---|---|---|---|---|---|---|---|---|
| Series | Model | Wireless | Data Logger | Wired | ||||
| Standard | Frequency | Specialized I/O Module | Data Logger | Ethernet | RS-232 | RS-485 | ||
| Wireless MDC | MDC-211-WF | Wi-Fi | 2.4 GHz 5 GHz |
- | - | 10/100M | 1 | 1 |
| MDC-211-ZT | ZigBee | 2.4 GHz | ZT-2000 series | - | 1 | 1 | ||
| MDC-211-433 | Radio | 433 MHz | - (Note1) | - | 1 | 1 | ||
| Note1: can connect regular RS-232/485 I/O modules through a radio to RS-232/485 converter, RFU-433. | ||||||||
Application
Specification
| Wi-Fi | |
|---|---|
| Standard | IEEE 802.11a/b/g/n |
| Mode | Limit-AP / Infrastructure |
| Frequency |
2.4 GHz 5 GHz |
| Protocol | Modbus TCP Slave |
| Encryption | Open / WEP / WPA / WPA2 |
| Channels |
2.4 GHz: CH1 ~ 11 5 GHz: CH36, 40, 44, 48 |
| Antenna |
Omni-Directional 3 dBi @ 2.4 GHz / 5.5 dBi @ 5 GHz |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Protocol | Modbus TCP Slave |
| Configuration | Web-based User Interface |
| COM Ports | |
|---|---|
| Ports | 1 × RS-232, 1 × RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | Modbus RTU Master / Slave |
| Polling Definition | Up to 240 Modbus command definitions for all Wi-Fi / RS-232 / RS-485 ports |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 33 x 120 x 116 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
