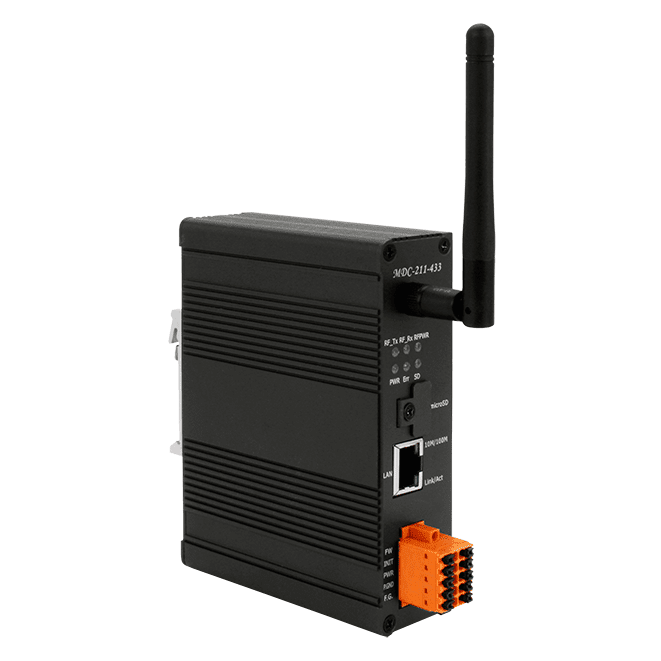

433 MHz Modbus data concentrator (Asia Only)

Features
  • 433MHz wireless frequency band
  • 16 wireless channels and 65536 group IDs
  • Support Modbus RTU/TCP communication protocols
  • Expand Ethernet connection capabilities for 433MHz/RS-232/RS-485 devices
  • Can execute up to 250 Modbus polling commands
  • Can collect and manage 9600 points of information each of DI/DO/AI/AO
  • Use CSV files to edit configuration settings and support export/import functions

  • Introduction
  • Application
  • Specification
  • Download
  • Get A Quote

Introduction

MDC-211-433 is a Modbus data concentrator developed by ICP DAS. It has Ethernet, 433MHz wireless communication, RS-232 and RS-485 communication interfaces, and can connect Modbus RTU devices to the Ethernet network. In addition, MDC-211-433 will sequentially read the data of Modbus RTU devices according to the user-defined command list, and integrate the data of different Modbus RTU devices into a continuous address format, so that the remote monitoring host can connect to MDC-211-433 via Ethernet to access the data of multiple Modbus RTU devices at one time. Therefore, through the Modbus data centralized management function of MDC-211-433 and the convenient connection and communication capabilities of Ethernet, a stable remote monitoring system can be quickly established, allowing users to greatly simplify the difficulty of data collection, and then reduce the traffic loading of the Ethernet network to improve system performance.

Application



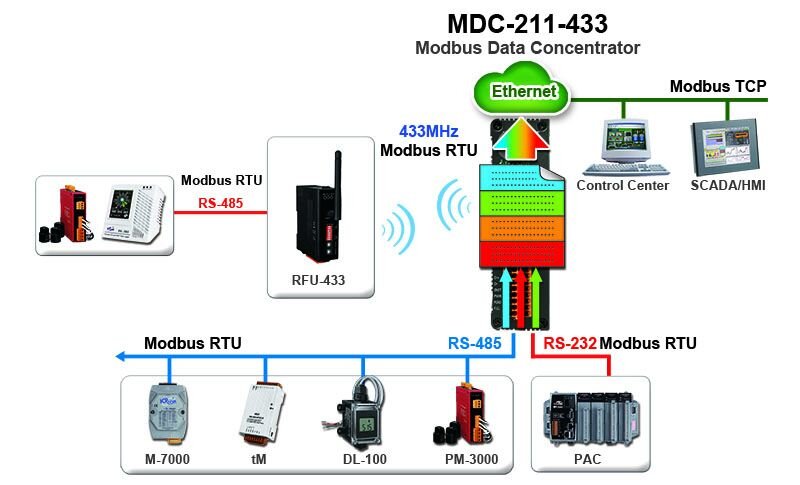

PMD-2201-E

Specification



RF
Antenna 0 dBi Omni-directional
Baud Rate 650, 1200, 2400, 4800, 9600, 19200, 38400, 57600 bps
Group ID 0 – 65535
Radio Frequency 433.1, 433.2, …, 434.5, 434.6 MHz
Transmission Power Default 10 dBm, max 19 dBm
Transmission Distance (LoS) 300 m (at 9600 bps RF rate and 10 dBm Tx power)
Ethernet
Ports 1 × 10/100Base-TX
Protocol Modbus/TCP Slave
COM Ports
Ports 1 × 3-wire RS-232
1 × 2-wire RS-485
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data Format N81, N82, O71, O81, E71, E81, S71, S81, M71, M81
Protocol Modbus RTU Master / Slave
Polling Definition 250 Modbus command definitions for all 433 MHz / RS-232 / RS-485 ports
Shared Memory 9600 registers each for AI, AO, DI, and DO data
Power
Input Range +10 VDC – +30 VDC
Consumption 5 W @ 24 VDC
Mechanical
Casing Metal
Dimensions (mm) 33 × 120 × 115 (W × L × H, excluding antenna)
Installation DIN rail
Environment
Operating Temperature −25 – +75 °C
Storage Temperature −30 – +80 °C
Humidity 10 – 90% RH, non-condensing

Download

MDC-211-433 MDC-211-433 Utility Tools
