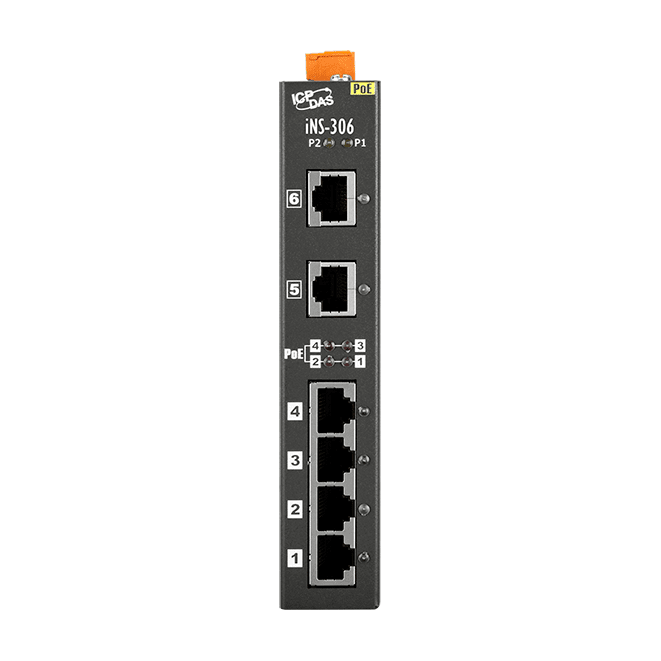

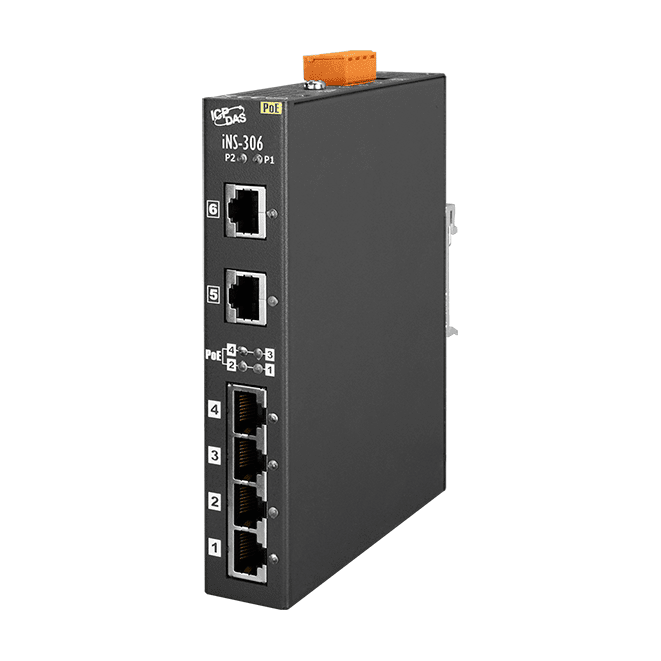

iNS-306
iNS-306
6-port 10/100 Mbps PoE(PSE) IoT Switch
Features
- 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
- Up to 30 watts per PoE port at 24 ~ 57 VDC Power Input
- Ethernet Bypass for Port 5 & Port 6
- Power Management and Schedule Control for each PoE port
- RTC (Real Time Clock) with NTP synchronized
- Web GUI configuration and management
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The iNS-306 is 6-Port IoT Switch supporting Power-over-Ethernet on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the iNS-306 switch enable centralization of the power supply, providing up to 30 watts. The iNS-306 can be used to power IEEE 802.3af/at standard devices (PD).
Support simple and friendly UI, the user can manage the power supply status of the PoE device through the web page remotely.
It also supports the power scheduling function so that the device will automatically turn off the power when it is not needed in order to achieve the purpose of energy saving.
| IoT Switch | |||||||
|---|---|---|---|---|---|---|---|
| Model | Ethernet | PoE | Web GUI | Power Input | |||
| Port | Speed | ||||||
| iNS-306 | 6 x RJ-45 | 10/100M | 4 x PSE, IEEE 802.3at |
PoE Monitoring, Power management & Schedule, Link Status |
+12 ~ +57 VDC | ||
| iNS-308 | 8 x RJ-45 | 10/100M | 8 x PSE, IEEE 802.3at |
PoE Monitoring, Power management & Schedule, Link Status |
+24 ~ +57 VDC | ||
| iNS-316 | 16 x RJ-45 | 10/100M | 16 x PSE, IEEE 802.3at |
PoE Monitoring, Power management & Schedule, Link Status |
+48 ~ +57 VDC | ||

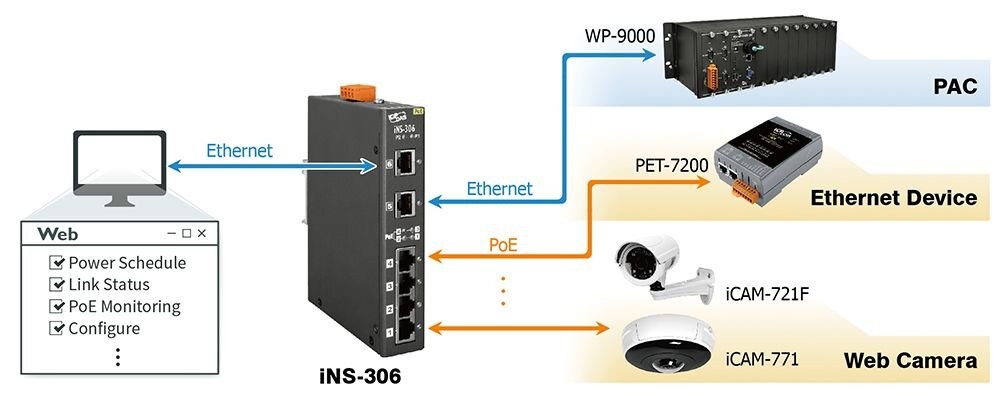

Application
Specification
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, POE, Link/Act, Speed |
| Ethernet | |
|---|---|
| Ports | 6 x RJ-45, 10/100Base-TX |
| Standards |
IEEE 802.3 for 10 Base-T IEEE 802.3u for 100 Base-TX IEEE 802.3x for Flow Control, Back Pressure Flow Control IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet Energy Efficient Ethernet (EEE) as per 802.3az (power saving during idle network activity) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 16K |
| Frame Buffer Memory | 4 Mbit |
| Isolation | 1500 Vrms (1 minute) |
| DIP Switch | Init |
| PoE Technology | |
|---|---|
| PoE Compliance | 100% IEEE 802.3at compliant |
| PoE Power | Up to 30 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (pin 1, 2), V− (pin 3, 6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +52 VDC |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +57 VDC (Redundant dual input) |
| Redundant Power Inputs | Yes |
| Consumption |
0.15 A @ 24 VDC without PD loading, 6 A @ 24 VDC with PD full loading (30 W per port) 0.10 A @ 48 VDC without PD loading, 3 A @ 48 VDC with PD full loading (30 W per port) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) |
DIN-rail mounting: 28 × 160 × 119 (W × L × H) Wall mounting: 28 × 199 × 112 (W × L × H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | −40 °C ~ +75 °C |
| Storage Temperature | −40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
