iSN-101/S2

The iSN-101 Liquid Leak Detection Module is a low-cost intelligent liquid leak detection device that can be used to directly control Relay Output. No additional conversion module is needed and the iSN-101 can be easily integrated with a variety of monitoring systems to achieve remote alarm and remote device control. The iSN-101 Liquid Leak Detection module can be used to monitor double-core leader cable lengths of up to 500 meters, and can be used with both the extended cable and its included liquid leak detection cable. If liquid is detected, the controller immediately activates the output relay - the normally open, normally closed passive output signal . The module can be easily integrated with other collection hosts connected to the network. The iSN-101 is suitable for real-time leak detection in critical locations, such as computer room base stations, warehouses, libraries, museums and industrial sites, and also for air handling equipment, refrigeration units, liquid containers, or pump tanks, etc., where there is a need to monitor any leakage of the equipment.

When required, communication with the iSN-101 can be programmed based on the Modbus RTU protocol, with the added benefi t that different addresses can be confi gured via hardware to allow for Modbus RTU communication.

Series	Model	Channel	Leader Cable	Detection Cable	Detection Probe	Relay Alarm	Interface	Mounting
iSN-101	iSN-101	1	-	-	-	Yes	RS-485, Modbus RTU, DCON	Wall Mount
	iSN-101/DIN							DIN-rail
	iSN-101/S	1	3 m	1 m	-			Wall Mount
	iSN-101/S/DIN							DIN-rail
	iSN-101/S2	1	3 m	3 m	-			Wall Mount
	iSN-101/S2/DIN							DIN-rail
	iSN-101/S3	1	-	-	Yes			Wall Mount
	iSN-101/S3/DIN							DIN-rail
iSN-104	iSN-104	4	-	-	-	-	RS-485, Modbus RTU, DCON	DIN-rail
	iSN-104-E	4	-	-	-	-	Ethernet, PoE	DIN-rail

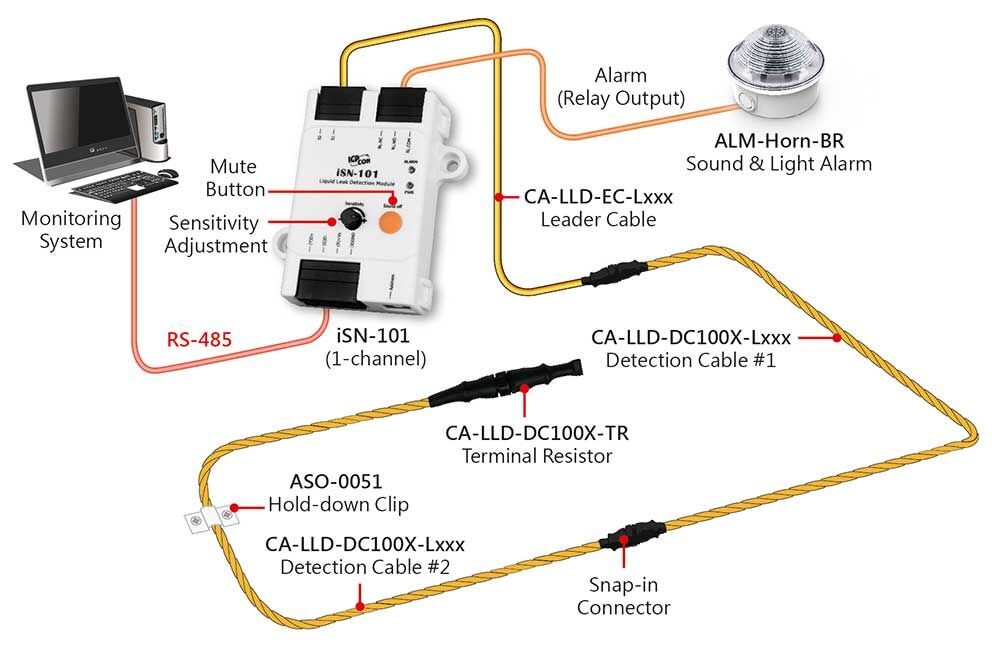

Applications
