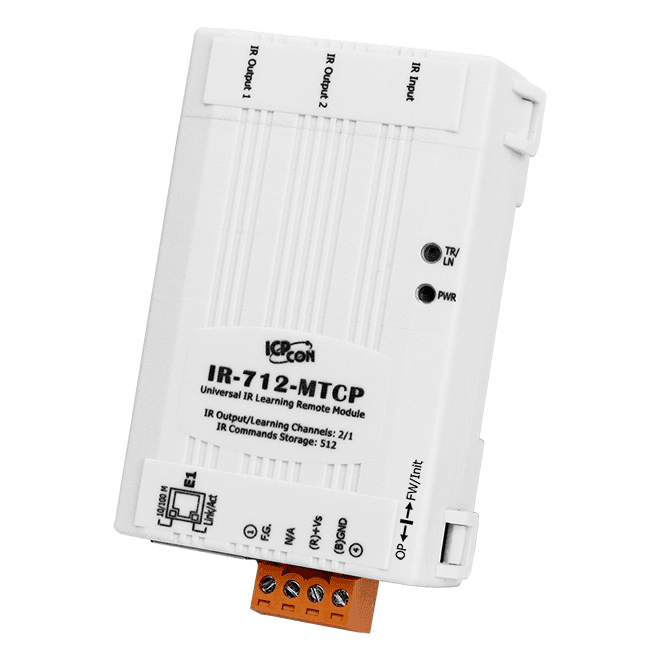

IR-712-MTCP
IR-712-MTCP
Universal IR Learning Module (2x IR outputs, 512x IR cmds)
Features
- 2 IR output channels.
- 1 IR learning input
- IR command capacity: 512
- Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
- Supports Ethernet interface.
- Supports Modbus TCP/UDP protocol to emit IR commands.
- PProvides ASCII String Command (DCON over TCP/UDP) to emit IR signal.
- Includes 2x CA-IR-SH2251 IR emitter cables.
(Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP and DCON protocols provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712-MTCP is well-suited for smart home and building automation.
| IR Learning Remote Module | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | IR Output Channels | IR Input Channels | IR Commands Storage | Supported IR Carrier Freq. | Serial Comm. Interface | Protocol | Accessories | |
| IR-712A | 2 | 1 | 224 | 33, 36, 37, 38, 40, 56 kHz | RS-232 × 1 RS-485 × 1 |
Modbus RTU (Slave) | CA-IR-SH2251 | |
| IR-712A-5 | CA-IR-SH2251-5 | |||||||
| IR-712-MTCP | 512 | Ethernet × 1 | Modbus TCP/UDP (Server) | CA-IR-SH2251 | ||||
| IR-712-MTCP-5 | CA-IR-SH2251-5 | |||||||
| IR-712P-MTCP | PoE, Ethernet × 1 | CA-IR-SH2251 | ||||||
| IR-712P-MTCP-5 | CA-IR-SH2251-5 | |||||||

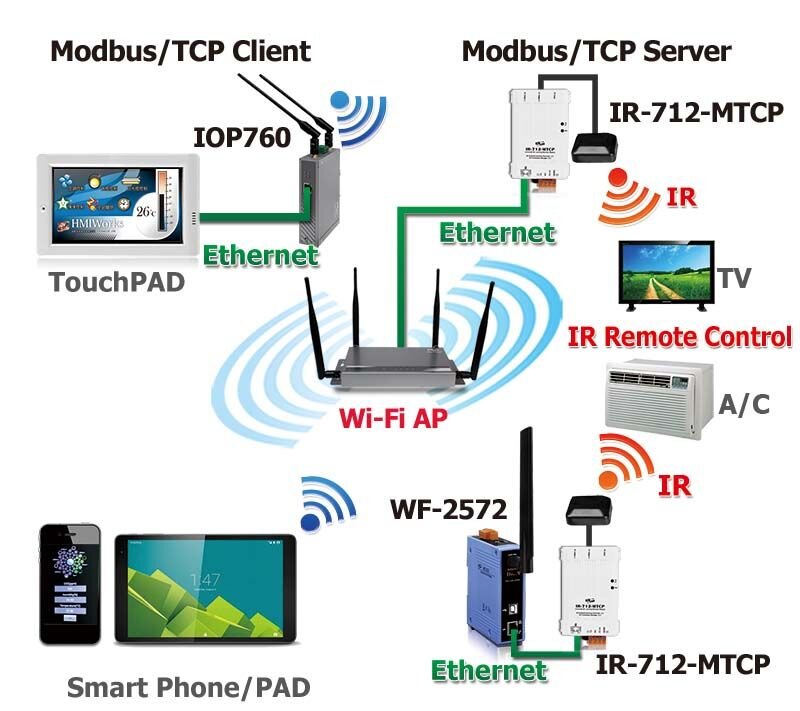

Application
Specification
| LED Indicators | |
|---|---|
| Status |
1 x TR/LN (IR Transmitting/Learning) 1 x PWR (Power) |
| Infrared | |
|---|---|
| IR Learning Input | 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz. |
| IR Output Channels | 2 channels with 3.5 mm audio jack |
| IR Remote Commands | Capacity: 512 |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| Protocol | Modbus TCP/UDP Server |
| Power | |
|---|---|
| Consumption |
Standby: 1.7 W Using 1 IR Output: 3.4 W Using 2 IR Outputs: 5.8 W (Max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 52 x 27 x 85 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | 25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
