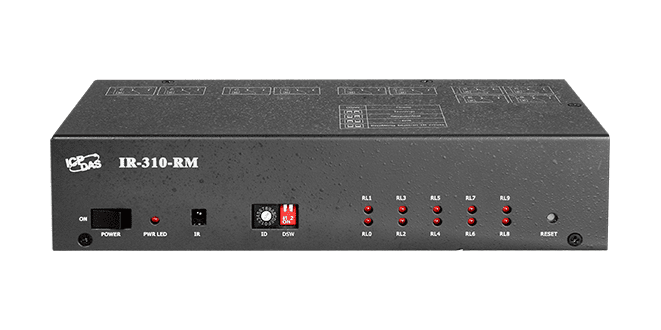

IR-310-RM
IR-310-RM
IR Controlled 10-channel High Power Relay Module
Features
- 10 channels high power relays: 10A x 4, 5A x 6
- Supports IR commands (custom:64, built-in:32) for relay control.
- NO & NC terminals for each channel
- Protection circuit for each channel
- Sequential relay control
- Supports maximum 5 sets of interlocked relay pairs (e.g. CW/CCW motor control)
- Power-on values and power failure memory
- RS-232 and RS-485 serial interface
- Supports Modbus/RTU protocol (Slave)
- Modbus Network IDs: 1 ~ 15 (HW); 1 ~ 247 (SW)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
IR-310-RM is a 10-channel high power relay module designed for the power control of various appliances. The relay module can switch up to 10 A loads. There are NO/NC switches and protection circuit for each channel. The relays can be controlled independently or sequentially by serial communication with Modbus RTU protocol, as well as by wireless IR remote control. There are also maximum 5 interlocked relay pairs for interlocked switching. The application field can be manual/automatic power switch, light scenario control and energy conservation etc.

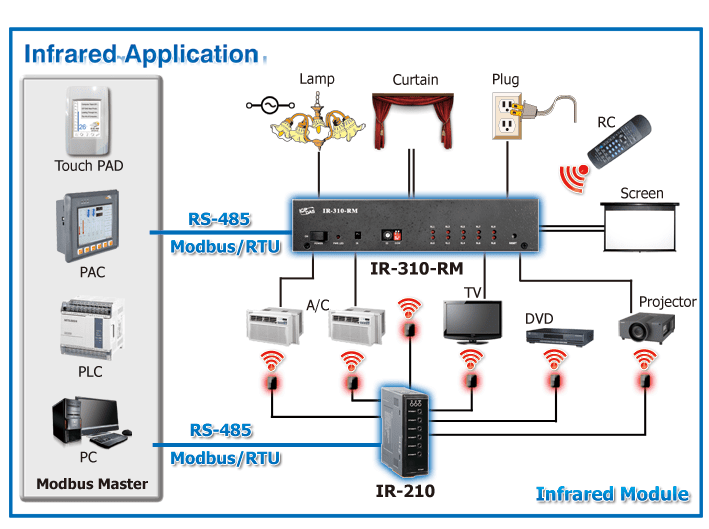

Application
Specification
| CPU Module | |
|---|---|
| NET ID |
Hardware: 1 ~ 15 Software: 1 ~ 247 |
| LED Indicators | |
|---|---|
| Status |
1 x Power Indication 10 x Relay Output Indicators |
| Infrared | |
|---|---|
| IR Remote Commands |
64 IR commands (#0 ~ #63) corresponding to self-defined relay states. 32 IR commands (#192 ~ #223) corresponding to built-in relay states. |
| IR Remote Input |
1 x On-board IR Receiver 1 x 3.5 mm Audio Jack (for CA-IR-001) |
| Relay Output | |
|---|---|
| Channels | 10 |
| Type | Form C Relay (SPDT) |
| Contact Rating |
5A @ 220VAC for RL0, RL1 & RL6 ~ RL9 10A @ 220VAC for RL2 ~ RL5 (Operating Temperature: 25°C) |
| Operate Time |
10 ms for RL0, RL1 & RL6 ~ RL9 15 ms for RL2 ~ RL5 |
| Release Time |
5 ms for RL0, RL1 & RL6 ~ RL9 10 ms for RL2 ~ RL5 |
| Electrical Endurance | 1 × 105 OPS |
| Mechanical Endurance | 1 × 107 OPS |
| COM Ports | |
|---|---|
| Ports |
RS-232 (TxD, RxD, GND) RS-485 (DATA+, DATA−) |
| Baud Rate | 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps |
| Data Format | 8 Data Bits, No Parity, 1 Stop Bit (8N1) |
| Protocol | Modbus RTU Slave |
| Power | |
|---|---|
| Consumption | 6.5 W (Max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 220 × 113 × 48 mm (W × L × H) |
| Environment | |
|---|---|
| Operating Temperature | −25 °C to +75 °C |
| Storage Temperature | −30 °C to +80 °C |
| Humidity | 10% to 95% RH (Non-condensing) |
