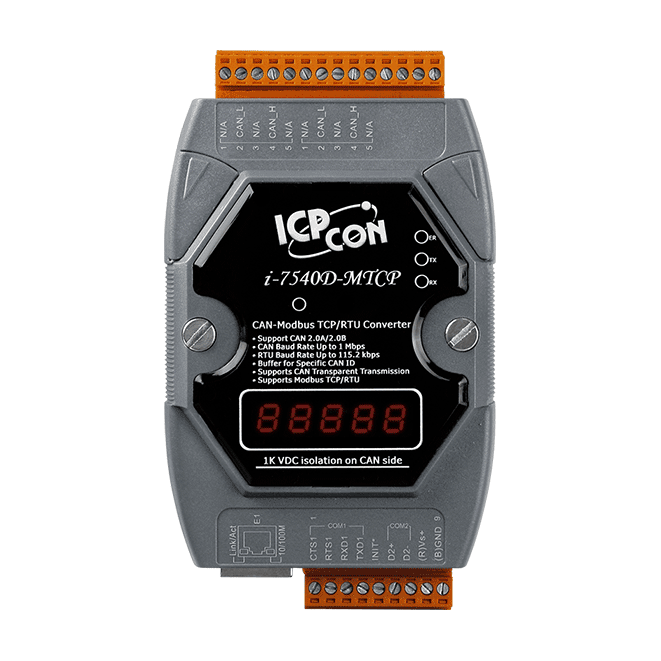

I-7540D-MTCP-G

I-7540D-MTCP-G

CAN to Ethernet/ Modbus Converter

Features
  • 80186-80 Embedded CPU, or compatible
  • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • Provide 200 CAN frames buffer in CAN to Modbus Mode
  • NXP 82C 250 CAN Transceiver
  • Support both CAN specification 2.0A and 2.0B
  • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
  • Max transmission distance of CAN over 1000m (follow CAN specification)
  • 7-segment LED display to Module IP, RS-232 baud rate, CAN configuration…
  • Software configurable CAN and RS-232 communication parameters
  • Firmware updated from COM1 or Ethernet port
  • Support Web Configuration
  • Support maximum 24 Ethernet clients connection
  • Support function code 0x03/0x04/0x10 of Modbus TCP/RTU command for reading and writing CAN message
  • Provide the transparent communication between the CAN devices via Ethernet
  • Support 30 specific CAN IDs in the Modbus TCP/RTU mode

  • Introduction
  • Application
  • Specification
  • Download
  • Get A Quote

Introduction

The I-7540D-MTCP is helpful for data exchanging between the Modbus devices and CAN devices. I-7540D-MTCP is a Modbus TCP server and acts as slave device in Modbus RTU network. It supports four communication modes: Modbus TCP, Modbus RTU, CAN-Ethernet Convert and Pair connection.

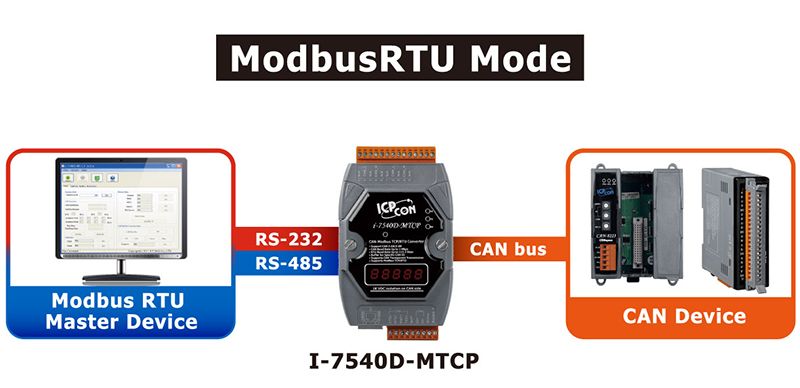

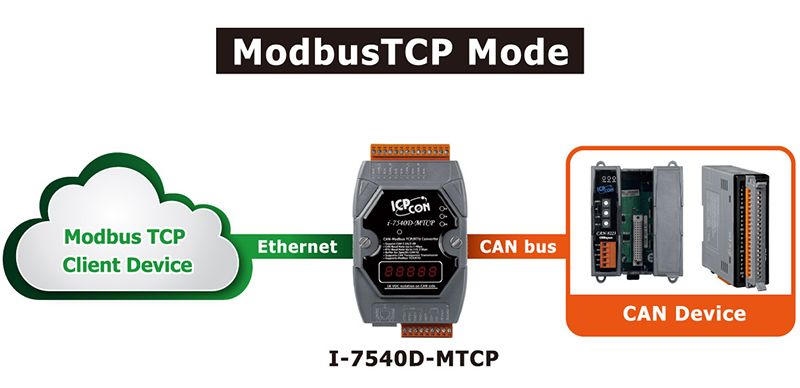

Modbus TCP / RTU

The major function of the I-7540D-MTCP is CAN to Modbus TCP/RTU gateway. It allows Modbus TCP/RTU device to communicate with CAN device on a CAN network. I-7540D-MTCP supports the function codes 0x03/0x04/0x10 of Modbus TCP/RTU for reading and writing CAN messages.


Model CAN to Ethernet Converter Series
Module Name I-7540D-G I-7540D-MTCP-G I-7540D-WF
I-7540D-UTA-G I-7540DM-MTCP
I-7540DM-UTA
CAN Interface
CAN Connector Screw terminal block Screw terminal block Screw terminal block
Channel Number 1 1 1
Baud Rate (bps) 10k ~ 1M (user-defined) 10k ~ 1M (user-defined) 5k ~ 1M
CAN Filter Yes Yes Yes
CAN Isolation 1000 VDC / 2500 Vrms 1000 VDC / 2500 Vrms 3000 VDC / 2500 Vrms
Terminal Resistor Built-in 120Ω Built-in 120Ω Built-in 120Ω
Max FPS (@1Mbps) 1852 – 2244 2118 – 2241 700
CAN FIFO 1000 frames 200 frames 256 frames
Ethernet Interface
Controller 10/100Base-TX (Auto-negotiating, Auto-MDIX) Wi-Fi (802.11b/g)
Protocol TCP / UDP Modbus TCP Server TCP (Client / Server)
Socket Clients 25 24 3
Features Virtual COM support Modbus RTU slave Infrastructure & Ad-hoc mode
Miscellaneous
CAN Transparent Communication One-to-One / One-to-Many

Application

I-7540D-MTCP-G
I-7540D-MTCP-G

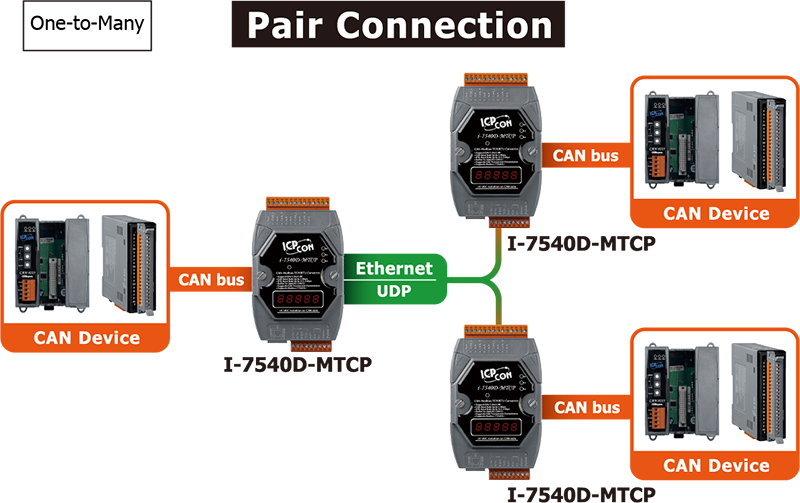

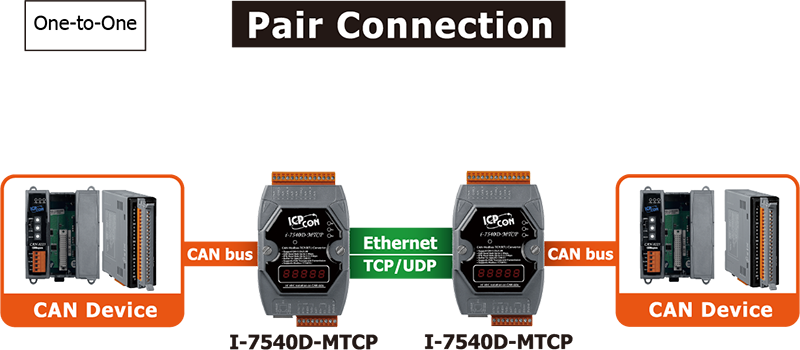

CAN Pair Connection Application:

The device supports a transparent, protocol-independent transfer of the CAN messages, thus allowing its implementation into a wide range of possible applications. Furthermore, the CAN-Modbus Converter can be used with various higher layer CAN protocols (e.g. CANopen, DeviceNet or other proprietary protocols).

I-7540D-MTCP-G

I-7540D-MTCP-G

Specification

LED Indicators
Status 1 x Power
3 x CAN status
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
COM Ports
Ports 1 x RS-232
1 x RS-485 (self-turner ASIC inside)
Baud Rate 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Specification ISO 11898-2, CAN 2.0A and CAN 2.0B
Baud Rate 10 k ~ 1 M bps
Isolation 1000 VDC (DC-to-DC), 2500 Vrms (photo-coupler)
Terminal Resistor Jumper-selectable 120 Ω terminal resistor
Filter Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.5 W
Mechanical
Casing Plastic
Dimensions (mm) 72 x 122 x 33 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

I-7540D-MTCP-G I-7540D-MTCP-G Utility Tools
