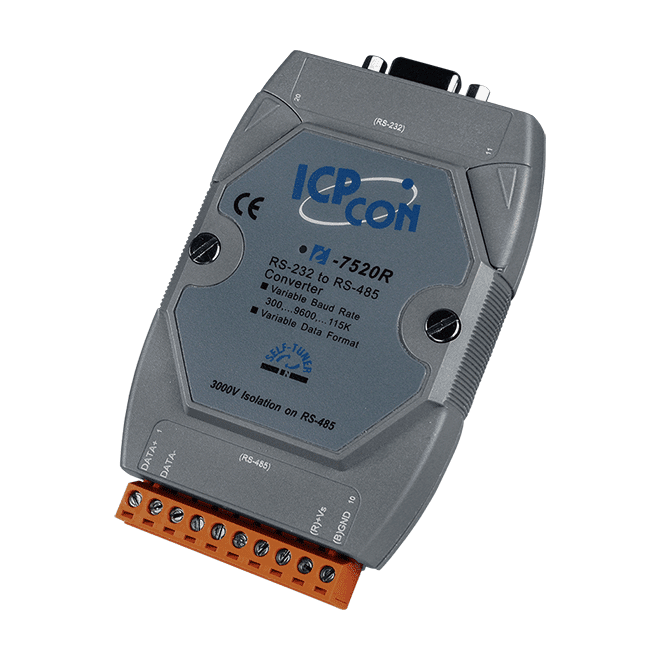

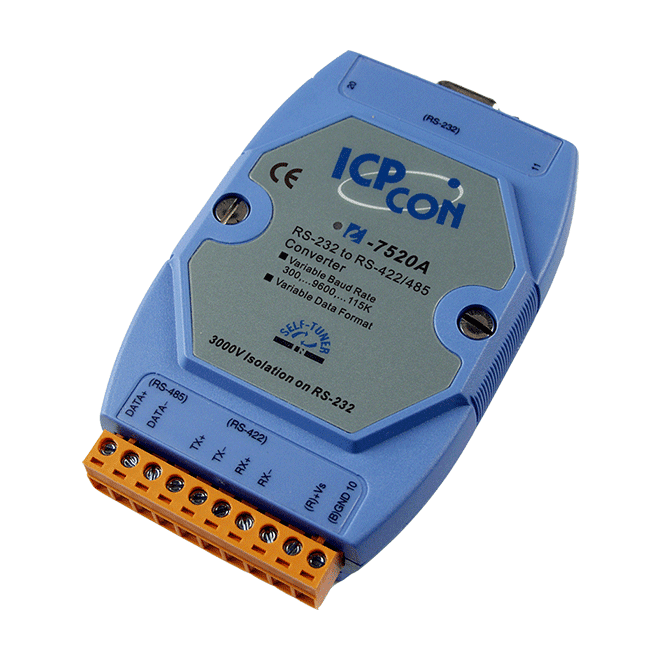

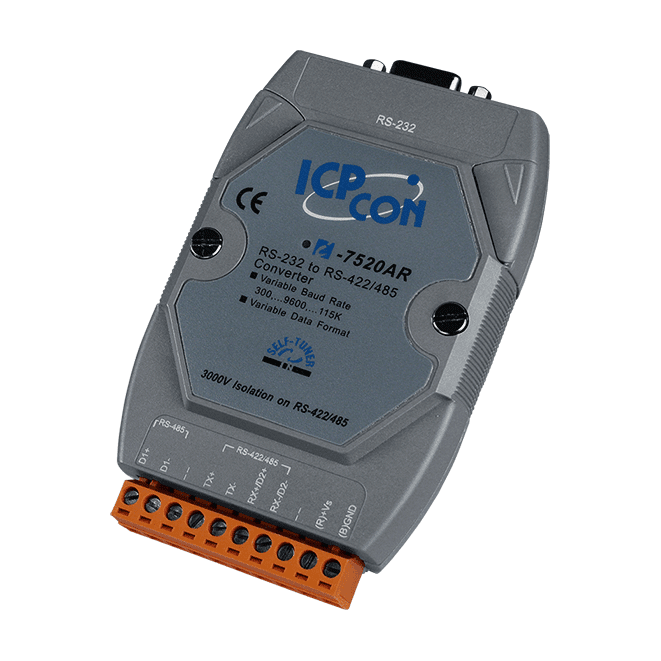

I-7520 series
I-7520 series
Isolated RS-232 to RS-485 Converter
Features
- Automatic RS-485 Direction Control
- ESD Protection for the RS-232/422/485 Data Line
- Transmission Speed of up to 115200 bps
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
Most industrial computer systems provide standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals, which transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. The I-7520 lets you easily build an industrial grade, long-distance communication system using standard PC hardware.
Application
Specification
| Isolation | |
|---|---|
| Intra-module Isolation |
I-7520 & I-7520A: 3000 VDC on RS-232 side I-7520AR: 3000 VDC on RS-422/485 side I-7520R: 3000 VDC on RS-485 side |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 × Power and Communication |
| COM Ports | |
|---|---|
| Ports |
I-7520 / I-7520R: 1 × RS-232 Input (Master), 1 × RS-485 Output (Slave) I-7520A / I-7520AR: 1 × RS-232 Input (Master), 1 × RS-422/485 Output (Slave) |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 × 35 × 118 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
