I-2542-B

I-2542-B

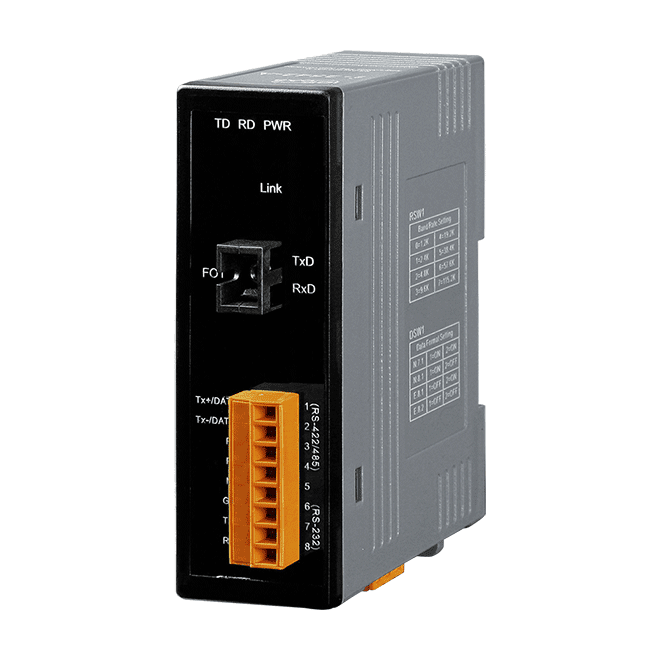

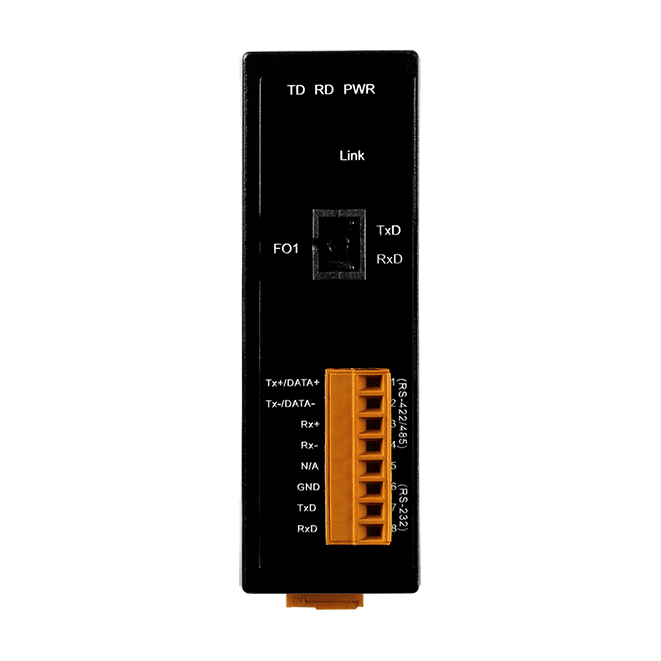

RS-232/422/485 to Single-Mode 15 Km, SC Fiber optic converter

Features
  • Automatic RS-485 Direction Control
  • Avoids lightning strikes and EMI/RFI interference
  • ESD Protection for the RS-232/422/485 Data Line

  • Introduction
  • Application
  • Specification
  • Download
  • Get A Quote

Introduction

The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.

Fiber Optics Converter
Model Function Interface Fiber Optics Connector Mode Communication Distance
I-2541 Converter RS-232/422/485 to Fiber Optics ST type Multi-mode 2 km
I-2542-A SC type Single-mode 15 km
I-2542-B
I-2542-A25 25 km
I-2542-B25
Note: You must purchase both I-2542-A + I-2542-B or I-2542-A25 + I-2542-B25 since these products work as a pair.

Application

Specification

EMS Protection
ESD (IEC 61000-4-2) Yes
LED Indicators
Status 1 × Power and Communication
COM Ports
Ports 1 x RS-232/422/485
Baud Rate 1200 ~ 115200 bps
Fiber
Ports Single-Mode; SC Connector × 1
Fiber Cable 8.3/125, 8.7/125, 9/125, or 10/125 µm
Wavelength TX: 1310 nm, RX: 1550 nm
Transmission Distance 15 km
Power
Input Range +10 VDC ~ +30 VDC (Non-isolated)
Consumption 2 W
Mechanical
Casing Plastic
Dimensions (mm) 33 × 89 × 107 (W × L × H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

I-2542-B I-2542-B Utility Tools
