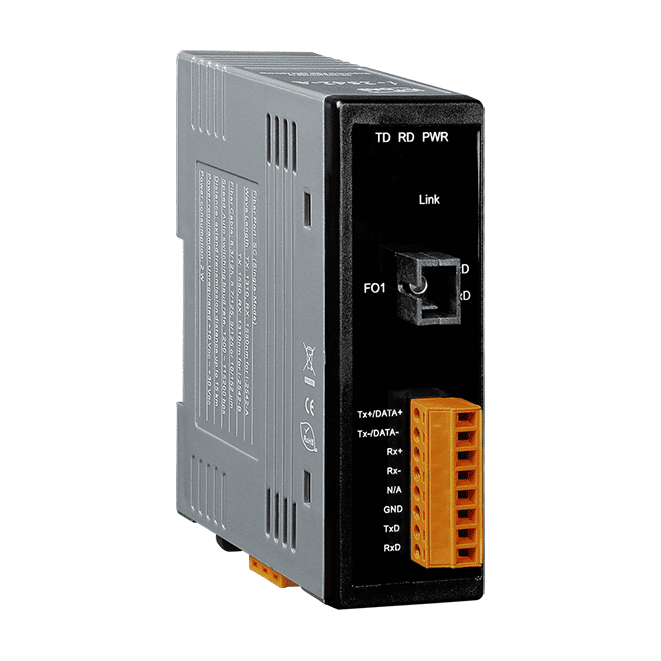

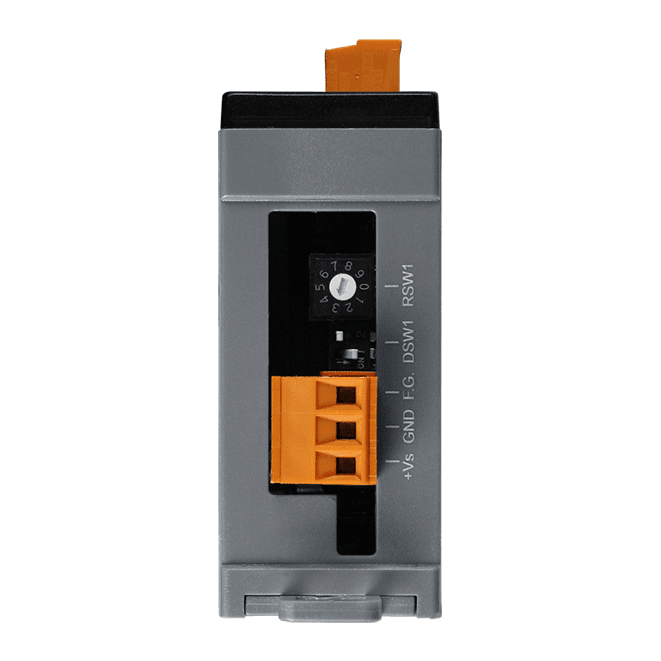

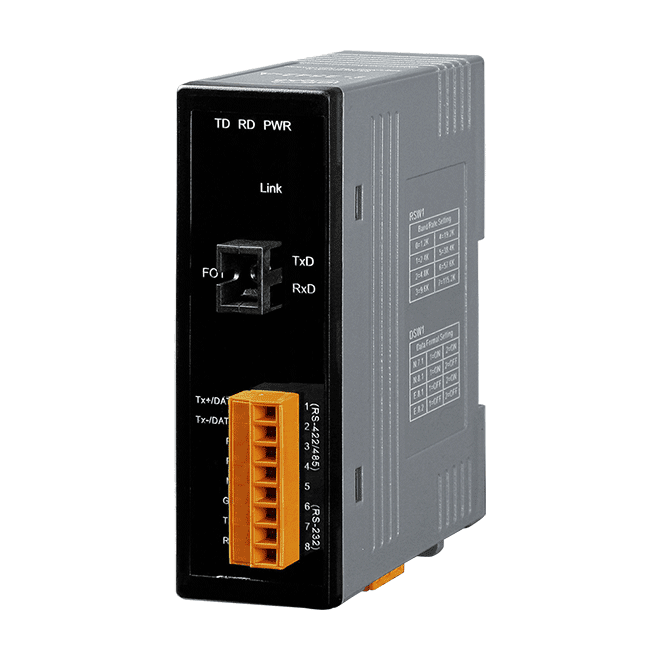

I-2542-A
I-2542-A
RS-232/422/485 to Single-Mode 15 Km, SC Fiber optic converter, TX 1310 nm, RX 1550 nm
Features
- Automatic RS-485 Direction Control
- Avoids lightning strikes and EMI/RFI interference
- ESD Protection for the RS-232/422/485 Data Line
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.
| Fiber Optics Converter | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Function | Interface | Fiber Optics Connector | Mode | Communication Distance | |||||||||||
| I-2541 | Converter | RS-232/422/485 to Fiber Optics | ST type | Multi-mode | 2 km | |||||||||||
| I-2542-A | SC type | Single-mode | 15 km | |||||||||||||
| I-2542-B | ||||||||||||||||
| I-2542-A25 | 25 km | |||||||||||||||
| I-2542-B25 | ||||||||||||||||
| Note: You must purchase both I-2542-A + I-2542-B or I-2542-A25 + I-2542-B25 since these products work as a pair. | ||||||||||||||||
Application
Specification
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 × Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 × RS-232 / RS-422 / RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Fiber | |
|---|---|
| Ports | Single-Mode; SC Connector × 1 |
| Fiber Cable | 8.3/125, 8.7/125, 9/125, or 10/125 µm |
| Wavelength | TX: 1310 nm, RX: 1550 nm |
| Transmission Distance | 15 km |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 × 89 × 107 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
