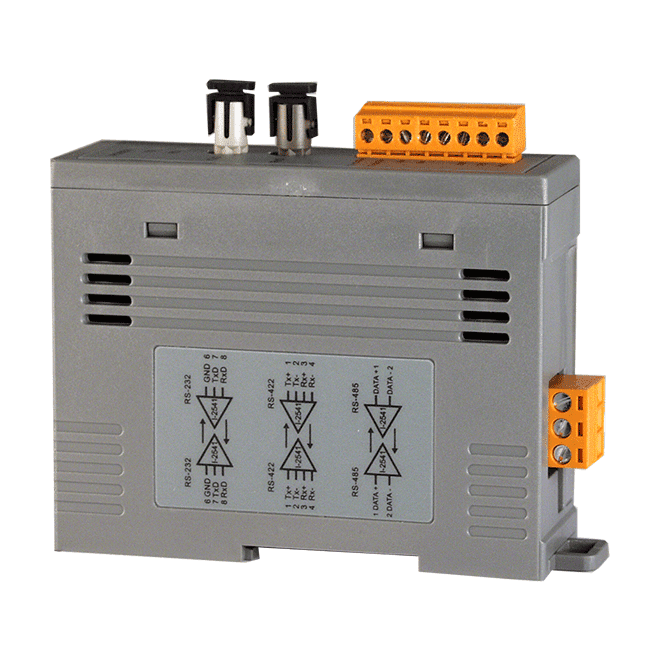

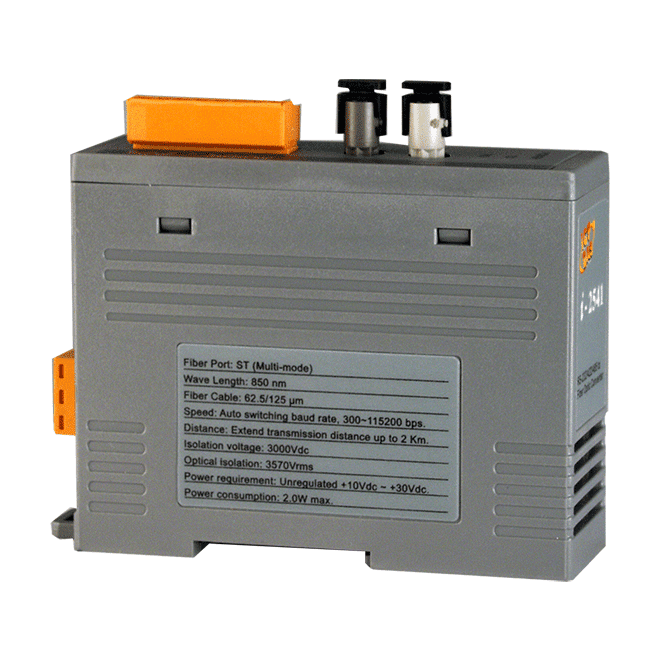

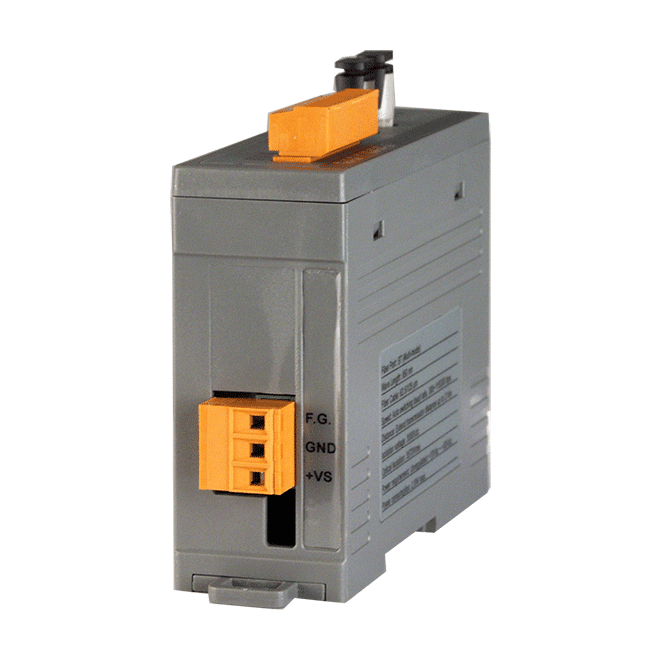

I-2541
I-2541
RS-232/422/485 to Mulit-Mode Fiber optic converter
Features
- Automatic RS-485 Direction Control
- Avoids lightning strikes and EMI/RFI interference
- ESD Protection for the RS-232/422/485 Data Line
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The I-2541 is an RS-232/422/485 to fiber optic converter that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. The I-2541 is used for RS-232/422 point-to-point connections and RS-485 multi-drop applications for transmitting a signal up to 2 km and is the perfect solution for applications where transmission must be protected from electrical exposure, surges or chemical corrosion.
Application
Specification
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 × Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 × RS-232 / RS-422 / RS-485 |
| Baud Rate | 300 ~ 115200 bps |
| Fiber | |
|---|---|
| Ports | Multi Mode; ST Connector × 1 |
| Fiber Cable | 50/125, 62.5/125, 100/140 µm |
| Wavelength | 850 nm |
| Transmission Distance | 2 km (62.5/125 µm recommended) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 × 89 × 107 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
