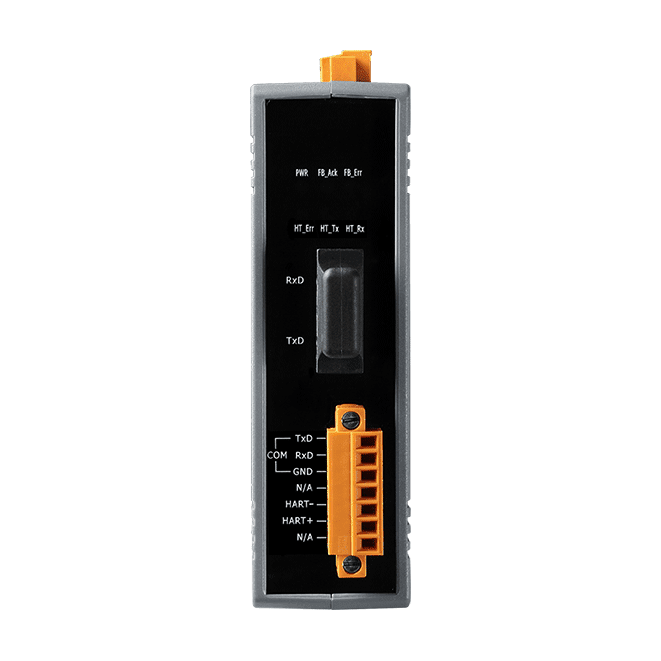

HRT-227CS
HRT-227CS
HART to Single Mode Fiber Converter
Features
- Support HART Short/Long frame
- Support HART Burst mode
- Support point-to-point or multi-drop HART mode
- Support connecting up to 15 HART slave devices
- Allow two HART masters
- Provide HC_Tool utility for module configuration
- Support firmware update via ComPort
- Fiber broken line detection
- Fiber Type: SC ; Single mode ; 100 Base-FX
- Fiber max. transmission distance up to 30 km
- 4KV ESD Protection
- Built-in Watchdog
- Selectable 250Ω loop resistor
- The HART port with the same Group ID can communicate with each other
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The HRT-227CS is a HART to Fiber converter paired used to extend HART communication distance via single mode fiber optic transmission medium. In order to solve the problem between HART and fiber transmission medium, HRT-227CS is specially designed for converting the HART signal to fiber optic cables. Built-in a HART 250 Ω loop resistor adjustable by dip switch. Therefore, users can make data collection and processing of HART network easier and quicker by applying HRT-227CS. In addition, we also provide the free HC_Tool utility for module configuration easily.

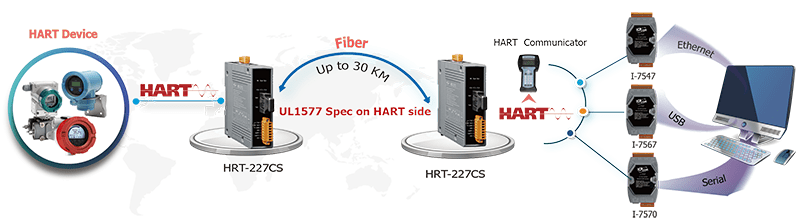

Application
Specification
| LED Indicators | |
|---|---|
| Status | PWR, FB_ACK, FB_ERR, HT_ERR, HT_TX, HT_RX |
| COM Ports | |
|---|---|
| Ports |
RS-232 (TXD / RXD / GND) for configuration 1200 bps, Odd parity, 8 data bits, 1 stop bit |
| Fiber | |
|---|---|
| Ports | SC duplex type; single-mode; 100BASE-FX |
| Fiber Cable | 8.3/125 µm, 8.7/125 µm, 9/125 µm, or 10/125 µm |
| Wavelength | 1310 nm |
| TX Output |
-15 dBm (min.) -8 dBm (max.) |
| RX Sensitivity | -34 dBm (max.) |
| RX Overload | -5 dBm (max.) |
| Budget | 19 dB |
| HART | |
|---|---|
| Ports | 1 |
| Data | Digital data only |
| Loop Resistor | Selectable 250 Ω loop resistor |
| Isolation | UL1577 specification |
| Protocol / Connector | 2-pin screw terminal block (HART+, HART−) |
| Power | |
|---|---|
| Reverse Polarity Protection | Power reverse polarity protection, over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33.0 × 126 × 101 mm (W × L × H) |
| Installation | DIN rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C (-13 ~ 167 °F) |
| Storage Temperature | -30 ~ +80 °C (-22 ~ 176 °F) |
| Humidity | 10% ~ 90% RH, non-condensing |
