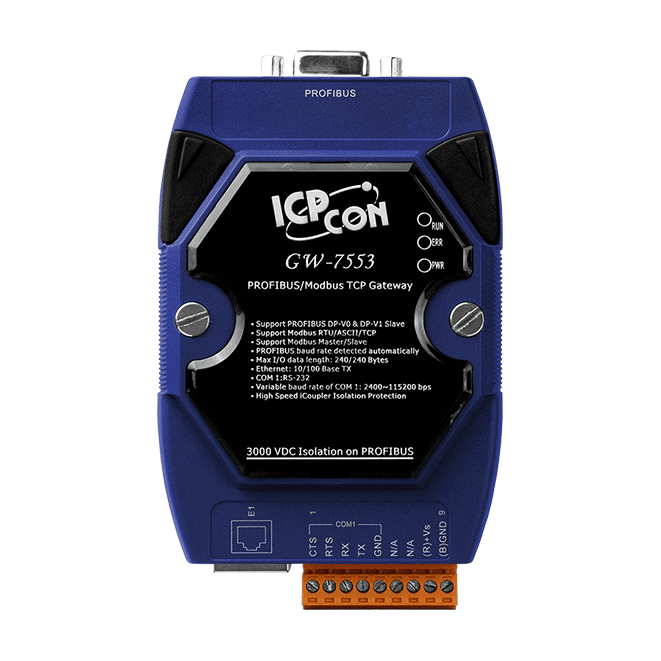

GW-7553-B
GW-7553-B
PROFIBUS to Modbus TCP Gateway
Features
- Protocol & Hierarchy : DP-V0 & DP-V1 Slave
- Transmission Rate Setting : detected automaticallyy
- Max Input Data Length : 240 Bytes
- Max Output Data Length : 240 Bytes
- Address Setting : 0~126 set by DIP switch or EEPROM
- Supports Modbus Mode : Master/Slave
- Supports Modbus Format : RTU/ASCII/TCP
- Supports COM 1 Data Format : 7/8 data bits, No/Odd/Even parity, 1/2 stop bit
- Network Isolation Protection : 2500 Vrms High Speed iCoupler
- DC Isolation Protection : 3000 VDC on PROFIBUS side
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The GW-7553 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the Modbus TCP devices. These Modbus devices may be a PLC, a sensor, the ICPDAS I-8KE4-MTCP module and so forth. In addition, the GW-7553 module built-in web server, the user can set the module by web browser. By using this module, users can put their Modbus TCP devices into PROFIBUS network very easily.

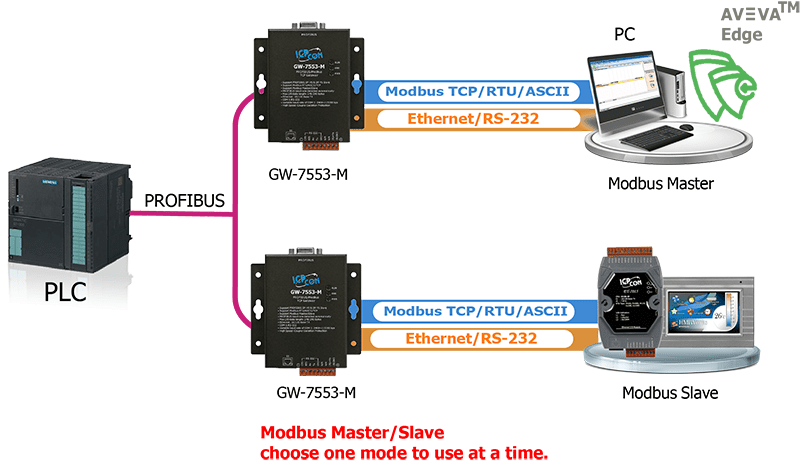

Application
Specification
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer |
Watchdog IC CPU Built-in |
| LED Indicators | |
|---|---|
| Status | PWR LED, RUN LED, ERR LED |
| Ethernet | |
|---|---|
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto-MDIX) |
| COM Ports | |
|---|---|
| Ports |
RS-232 (For firmware update and configuration) 5-pin screw terminal block (TxD, RxD, RTS, CTS, GND) |
| Baud Rate | 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Parity | None, Even, Odd |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| PROFIBUS | |
|---|---|
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 kbps, 19.2 kbps, 45.45 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps |
| Isolation | 3000 VDC (DC-to-DC), 2500 Vrms (bus-to-logic) |
| Protocol | DP-V0 & DP-V1 |
| Power | |
|---|---|
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 × 33 × 119 (W × L × H) |
| Installation | DIN Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 °C to +75 °C |
| Storage Temperature | -30 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
