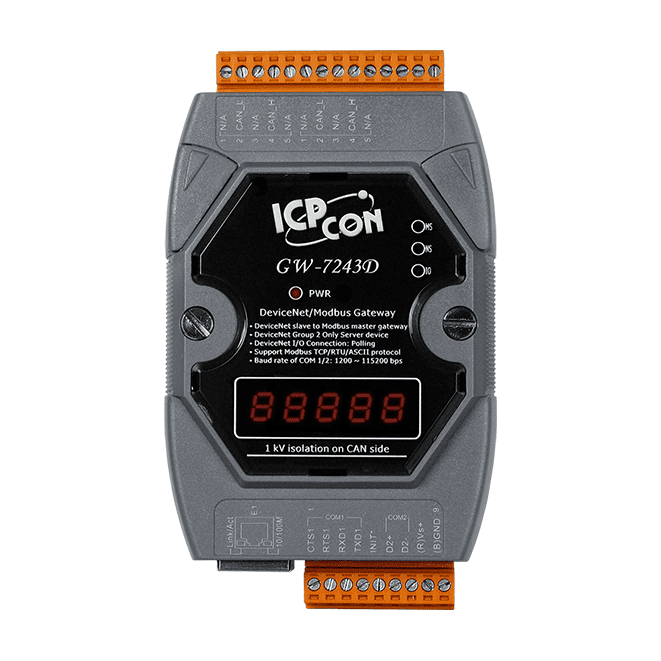

GW-7243D-G
GW-7243D-G
DeviceNet Slave to Modbus TCP/RTU/ASCII Master Gateway
Features
- DeviceNet Features
- • Comply with DeviceNet specification Volume I/II, Release 2.0
- • "Group 2 Only Server” DeviceNet subscriber
- • Support Offline Connection Set and Device Shutdown Message
- • Explicit & I/O length: 240 bytes max.
- • Connection supported: one “Explicit Connection”, one “Polled Command/Response” connection
- Modbus RTU Features
- • User can select the Modbus RTU/ASCII protocol for each COM port
- • Maximum support 10 Modbus RTU/ASCII commands for each COM port
- • Maximum support 1920 channels DI/O for a Modbus RTU/ASCII command
- • Maximum support 120 channels AI/O for a Modbus RTU/ASCII command
- • Maximum support 2048 channels DI, 2048 channels DO, 1024 channels AI and 1024 channels AO for each COM port
- Modbus TCP Features
- • Maximum support 4 Modbus TCP devices
- • Maximum support 5 Modbus TCP commands for each Modbus TCP device
- • Maximum support 1920 channels DI/O for a Modbus TCP command
- • Maximum support 120 channels AI/O for a Modbus TCP command
- • Maximum support 2048 channels DI, 2048 channels DO, 1024 channels AI and 1024 channels AO for each Modbus TCP device
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The GW-7243D offers the DeviceNet slave and Modbus master functions, and enables the DeviceNet master to access the Modbus slave devices. In the DeviceNet network, the module acts as a Group 2 Only Server device, and waits to build the connection with the DeviceNet master. In the Modbus network, the GW-7243D is a master device, and cyclically sends the commands to access the Modbus slave devices. Both the Modbus TCP client and Modbus RTU/ASCII master interfaces of the GW-7243D can work simultaneously. This feature means that users are able to integrate different kinds of Modbus slave devices together into the DeviceNet network no matter these devices provide Ethernet, RS-232 or RS-485 communication interfaces. In order to simplify the use of the GW-7243D, the GW-7243D Utility tool for confi guration and EDS file production is given. This is helpful to build the applications easily and quickly.
DeviceNet Gateway
| Specification | GW-7243D-G | GW-7434D-G |
|---|---|---|
| Product Description | DeviceNet Slave to Modbus TCP/RTU Master Gateway | Modbus TCP/RTU Slave to DeviceNet Master Gateway |
| DeviceNet Interface | ||
| Connector | 1 channel (CAN_H, CAN_L) + bypass | |
| Function | DeviceNet Slave | DeviceNet Master |
| Baud Rate | 125k, 250k, 500k bps | |
| Specification | DeviceNet Volume I/II, Release 2.0 | |
| I/O Operating Modes | Polling | Polling, Bit-Strobe, COS/Cyclic |
| Heartbeat | Yes | — |
| Shutdown Message | Yes | — |
| UART Interface | ||
| COM1 Connector | RS-232 (Non-isolated) | |
| COM1 Function | Configuration only | Modbus RTU Master/Slave, VxComm |
| COM2 Connector | RS-485 with Self-Tuner ASIC (Non-isolated) | |
| COM2 Function | Modbus RTU/ASCII Master | Modbus RTU Master/Slave, VxComm |
| Ethernet Interface | ||
| Ethernet |
10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
|
| Ethernet Function | Modbus TCP Client | Configuration, Modbus TCP Server, VxComm |
| Modbus Function Code | 01, 02, 03, 04, 05, 06, 15, 16 | |

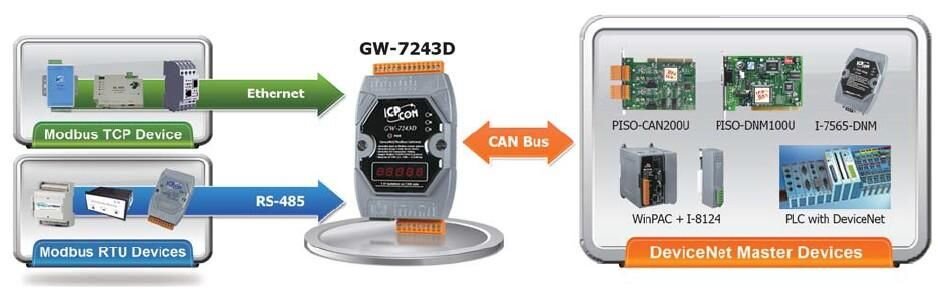

Application
Specification
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status |
1 × Power 2 × DeviceNet Status |
| Ethernet | |
|---|---|
| Ports | 1 × RJ-45, 10/100Base-T(X) (Auto-negotiating, Auto-MDIX) |
| Protocol | Modbus TCP |
| COM Ports | |
|---|---|
| Ports |
1 × RS-232 1 × RS-485 |
| Protocol | Modbus ASCII / Modbus RTU |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| DeviceNet | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Connection Supported |
1 connection for Explicit Messaging 1 connection for Polled I/O |
| Isolation | 1000 VDC (DC-to-DC), 2500 Vrms (Photo-coupler) |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0 |
| Shutdown Message | Yes |
| Heartbeat Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
|---|---|
| Input Range | +10 VDC – +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 × 122 × 33 (W × L × H) |
| Installation | DIN Rail |
| Environment | |
|---|---|
| Operating Temperature | −25 °C – +75 °C |
| Storage Temperature | −30 °C – +80 °C |
| Humidity | 10 – 90% RH, Non-condensing |
