GW-2139M
GW-2139M

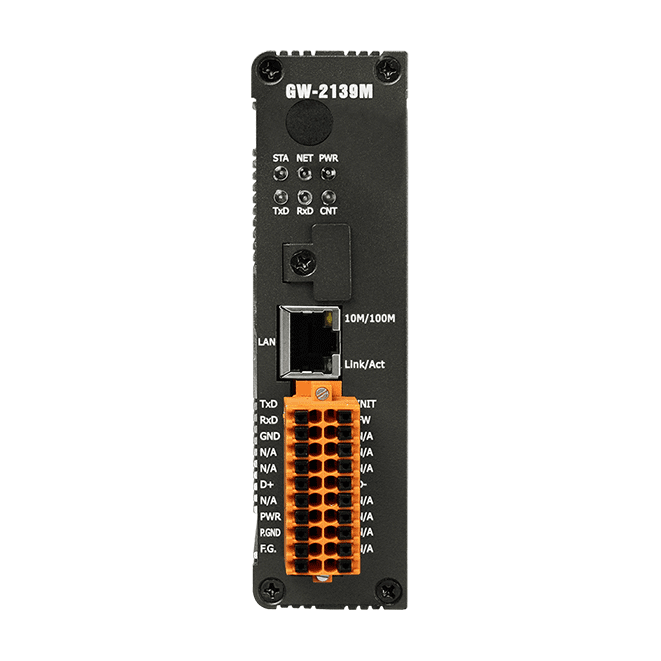

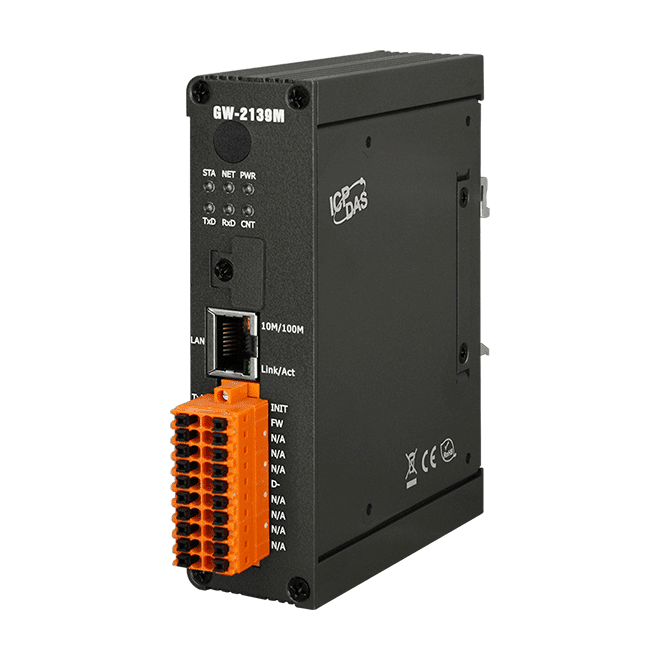

Modbus TCP to BACnet MS/TP Gateway
Features
- Read/Write standard BACnet objects via modbus
- Configurable BACnet MS/TP master
- Configurable Modbus TCP Server
- Simple data translation allows you to manipulate data as it passes between protocols
- Supports BACne AI, AO, AV, BI, BO, BV, MSI, MSO, MSV Object Types
- Supports Modbus “coils”, input registers, holding registers ‧BACnet object properties mapping configured via Modbus register
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
GW-2139M is a network gateway allowing Modbus TCP client devices to be accessed BACnet MS/TP network as a BACnet MS/TP master. The BACnet Master Slave Token Passing (MS/TP) protocol is used to relay and exchange information between building devices. GW-2139M contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus TCP registers to any combination of BACnet objects. BACnet interoperability building blocks (DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A) are Supported. All the data transfer is configurable using ICPDAS Utility.

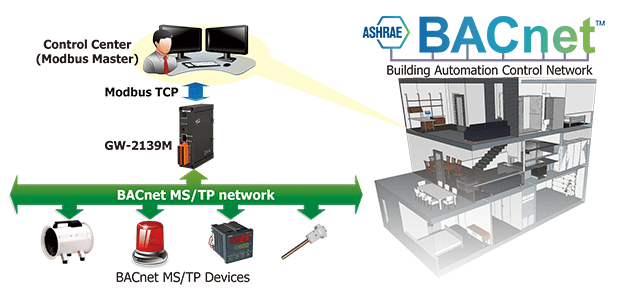

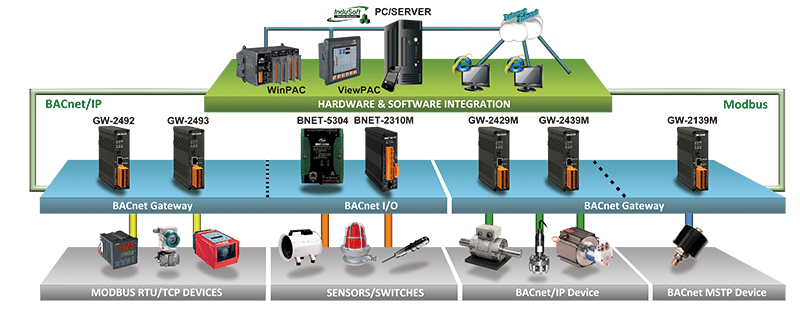

Application
Specification
| LED Indicators | |
|---|---|
| Status | Power (1), BACnet MS/TP Status (1), BACnet MS/TP Net (1), Modbus TCP TxD/RxD/Link (3), Ethernet Status (RJ-45) (2) |
| Ethernet | |
|---|---|
| Protocol | Modbus TCP Server |
| COM Ports | |
|---|---|
| Ports | Terminal block (D+, D-) |
| Baud Rate | 9600, 19200, 38400, 76800 |
| Terminal Resistor | Built-in 120Ω terminator resistor, enabled/disabled via jumper |
| Isolation | 3 kV VDC (DC-to-DC), 2500 Vrms (photo coupler) |
| BACnet MS/TP | |
|---|---|
| Protocol | BACnet MS/TP Master |
| Max. Connections | 32 |
| Objects | AI, AO, AV, BI, BO, BV, MSI, MSO, MSV |
| BIBBs | DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A |
| Power | |
|---|---|
| Consumption | 5 W @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 33 × 120 × 116 |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
