GTP-541M
GTP-541M

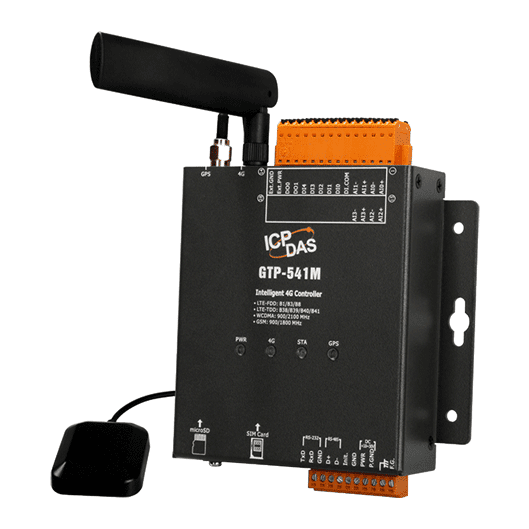

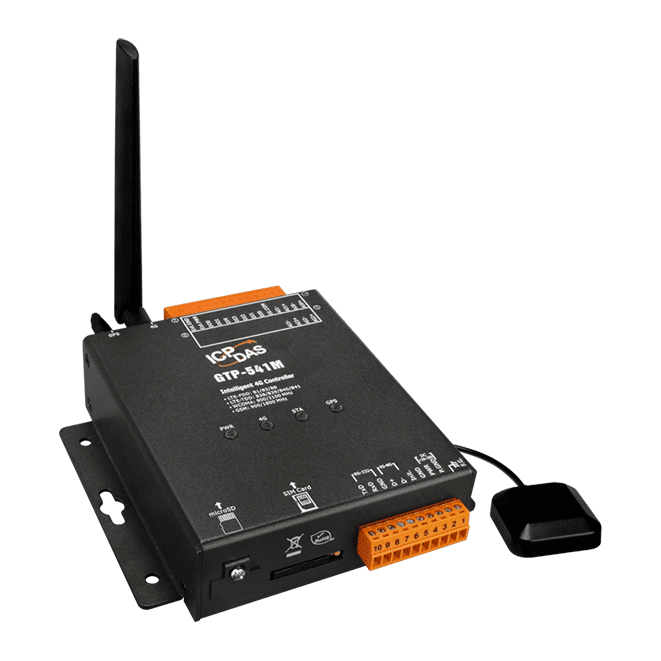

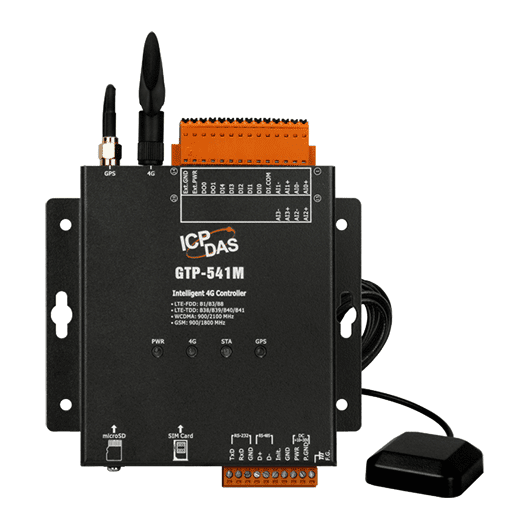

4G Multi Function Controller with GPS (Asia Only)(Does not support VoLTE)
Features
- Support LTE-FDD Band B1/B3/B8
- Support LTE-TDD Band B38/B39/B40/B41
- Support WCDMA/HSPA+ Dual-band 900/2100 MHz
- Support GSM/GPRS Dual-band 900/1800 MHzn
- 1 x RS-485 and 1 x RS-232 for general COM port
- Power Reverse Polarity Protection
- Power supply +10 VDC ~ +30 VDC

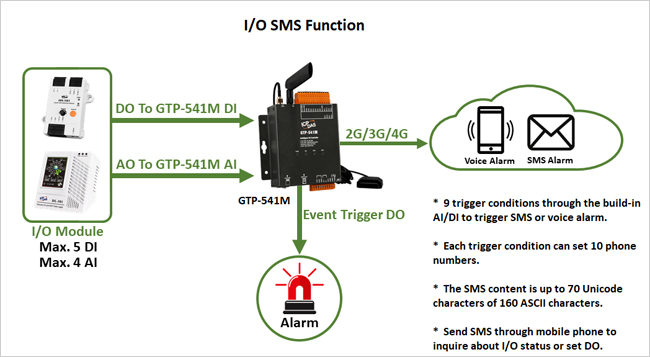

- I/O Trigger SMS/Voice Alarm Function
- Modbus Trigger SMS/Voice Alarm Function
- 4G RTU Function with GPS
- 4G/Serial gateway function
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The GTP-541M is an industrial smart 4G remote terminal device that is backward compatible with the 2G/3G frequency band and can be used with different software interfaces to meet user needs. 4G remote terminal equipment transmits I/O signals to the remote management platform through LTE/WCDMA/GPRS. ICP also provides related software support to facilitate customers to quickly establish monitoring programs. These softwares include VxServer. Virtual COM software such as VxComm. In addition, users can switch GTP-541M different functions such as ModBusSMS, DIOSMS and RMV through SD card replacement firmware to meet different application requirements. The powerful features of the GTP-541M reduce user development costs and time, making it ideal for IoT applications.
| Model | 2G Frequency (MHz) |
3G Frequency | 4G Frequency (MHz) |
GPS | Interface | I/O | Modbus RTU Slave |
RTU Data Report |
|
|---|---|---|---|---|---|---|---|---|---|
| GTP-541M
|
GSM/GPRS: 900/1800 MHz |
WCDMA: 900/2100 MHz |
FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41 |
Yes | 1 x RS-232/ S-485 |
5 x DI 2 x DO 4 x AI |
3 | RTU Center FTP |
|
| GTP-541M-UDR
|
|||||||||
| GTP-542M
|
B2, B3, B5, B8 | B1, B2, B5, B8 | FDD LTE : B1, B2, B3,B4,B5, B7, B8,B28 TDD LTE : B40 |
Yes | 1 x RS-232/ S-485 |
5 x DI 2 x DO 4 x AI |
3 | RTU Center | |
Application
Specification
| Software | |
|---|---|
| Service | Virtual COM, RTU, SMS Alarm |
| CPU Module | |
|---|---|
| CPU | ARM Cortex™ A5 processor |
| Storage Expansion | SD Card (Max. 32GB SDHC) |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x PWR, 1 x 4G, 1 x STA, 1 x GPS |
| 2G System | |
|---|---|
| Data Transmission Rate |
GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 85.6kbps |
| Frequency Band | 900/1800 MHz |
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| CSD |
GSM Downlink transfer: Max. 14.4 kbps; Uplink transfer: Max. 14.4 kbps |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class |
Class 4 (2 W @ 900 MHz) Class 1 (1 W @ 1800 MHz) |
| SMS Format |
Sending: UCS2/7bits Receiving: UCS2/7bits |
| 3G System | |
|---|---|
| Data Transmission Rate |
DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps |
| Frequency Band | WCDMA 900/2100 MHz |
| Power Class | Class 3(250mW @ WCDMA) |
| 4G System | |
|---|---|
| Data Transmission Rate |
LTE(Cat.3) Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50Mbps |
| Frequency Band |
FDD LTE : B1/B3/B8
TDD LTE : B38/B39/B40/B41 |
| GPS/GNSS | |
|---|---|
| Protocol | NMEA 0183 |
| Support Channels | 32 |
| Analog Input | |
|---|---|
| Channels | 4 < |
| Type | Voltage |
| Range | +10V ~ -10V |
| Resolution | 16-bit |
| Digital Input | |
|---|---|
| Channels | 5 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source, Isolated channel with common power or ground |
| ON Voltage Level | +5V ~ +24V |
| OFF Voltage Level | +1V Max |
| Digital Output | |
|---|---|
| Channels | 2 |
| Load Voltage | +24 VDC Max |
| Load Current | 100mA Max |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/485, Non-isolated |
| Baud Rate | 9600、19200、38400、57600 and 115200 bps |
| Power | |
|---|---|
| Consumption | 4.8W ( 200 mA @ 24 VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 113 x 125 x 34 (W x L x H) |
| Installation | DIN-Rail/ Screw |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
