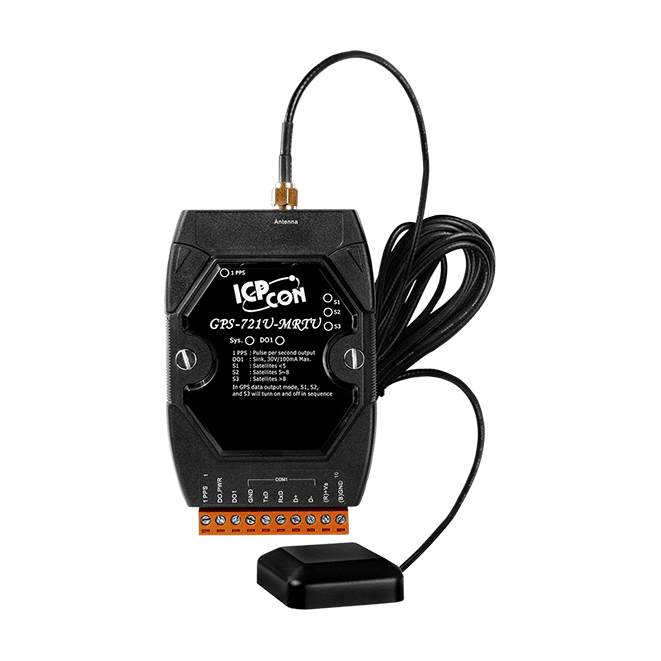

GPS-721U-MRTU
GPS-721U-MRTU
GPS/GLONASS Receiver Module with RS-232, RS-485, supports NMEA, DCON and Modbus/RTU protocols
Features
- Support GPS/GLONASS
- RS-232/RS-485 supports NMEA v0183 format, DCON or Modbus RTU protocol
- Built-in 1 channel DO, 1 channel PPS(1 pulse per second), 1 RS-485 port, 1 RS-232 port
- PPS: 100 ms pulse output/sec for precise timekeeping and time measurement
- With various system LED indicators
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

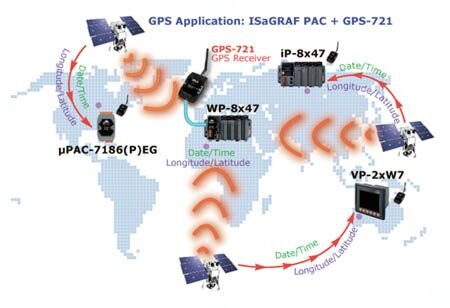

The GPS-721U-MRTU(-UTA) is a GPS/GLONASS receiver module, features high sensitivity, low power consumption and ultra small form factor with DCON, Modbus RTU and NMEA protocols. It provides you with superior sensitivity and outstanding performance even in the harshest environment. The GPS-721U-MRTU(-UTA) provides extra 1 channel DO and 1 channel PPS for users PPS signals can be used for precise timekeeping and time measurement. One can combine the PPS functionality with another as time synchronization source. It can also be applied in Automotive navigation, Personal positioning and navigation, Marine navigation, Satellite time correction and etc. You can use DCON Utility Pro software to select the appropriate GNSS system and then power it on and off to take effect.
| GPS Modem & Receiver | |||||
|---|---|---|---|---|---|
| Model Name | GNSS | SBAS | NMEA Output Interface | Digital Output | Protocol / Interface |
| GPS-721 | GPS | WAAS, EGNOS, MSAS | RS-232 | 1 | DCON / RS-485 |
| GPS-721-MRTU | GPS | WAAS, EGNOS, MSAS | RS-232 | 1 | DCON, Modbus RTU / RS-485 |
| GPS-721U-MRTU | GPS / GLONASS | WAAS, EGNOS, MSAS | RS-232 / RS-485 | 1 | DCON, Modbus RTU / RS-485 |
| GPS-721U-MRTU-UTA | GPS / GLONASS | WAAS, EGNOS, MSAS | RS-232 / RS-485 | 1 | DCON, Modbus RTU / RS-485 |
Application
Specification
| LED Indicators | |
|---|---|
| Status |
1 × Power / Communication 3 × GNSS |
| GPS / GNSS | |
|---|---|
| Acquisition Time | Cold Start (Open Sky): 29 s (Typical) |
| Chipset | u-blox Solution |
| Frequency | L1: 1575.42 MHz (C/A Code) |
| Max. Altitude | < 50,000 m |
| Max. Velocity | < 500 m/s |
| Position Accuracy |
Autonomous: 2.5 m SBAS: 2.0 m |
| Protocol | NMEA 0183 (9,600 bps, 8N1 Fixed) |
| Sensitivity |
Tracking: −161 dBm Cold Start: −148 dBm |
| Support Channels | 56 |
| 1 PPS | Pulse Per Second Output (Default: 100 ms Pulse / sec) |
| Digital Output | |
|---|---|
| Channels | 1 (Sink) |
| Type | Non-Isolated Open Collector |
| Load Voltage | +5 VDC to +30 VDC |
| Load Current | 100 mA |
| COM Ports | |
|---|---|
| Ports |
1 × RS-232 1 × RS-485 |
| Baud Rate | 1,200 to 115,200 bps |
| Data Format | 8N1, 8N2, 8E1, 8O1 |
| Protocol |
DCON Modbus RTU NMEA 0183 (9,600 bps, 8N1 Fixed) |
| Power | |
|---|---|
| Input Range | +10 VDC to +30 VDC (Non-Regulated) |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 × 117 × 35 mm (W × L × D) |
| Weight | 200 g |
| Environment | |
|---|---|
| Operating Temperature | −25 °C to +75 °C |
| Storage Temperature | −40 °C to +80 °C |
| Humidity | 5% to 95% RH (Non-Condensing) |
