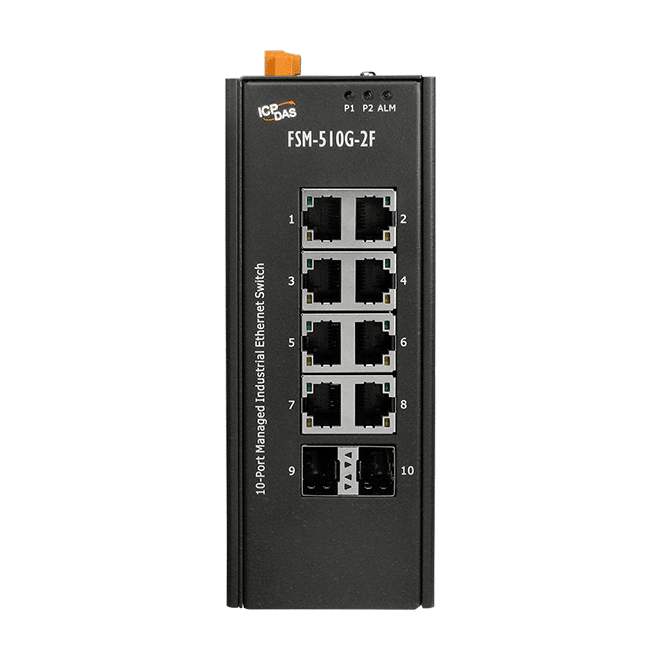

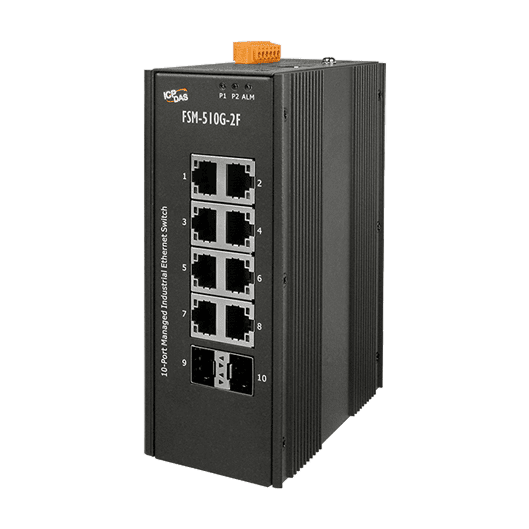

FSM-510G-2F
FSM-510G-2F
8-port 10/100/1000Base-T + 2 (100/1G) SFP L2 Plus Managed Switch
Features
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- L2+ features provide better manageability, security, QoS, and performance
- Network redundant Ring fail-over protection (< 20 ms)
- Multicasting support IGMP v1/v2/v3, proxy & snooping
- Multicast/Broadcast/Flooding Storm Control
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
FSM-510G-2F is a L2 Managed Switch that meets all IEEE 802.3ab/u/x/z Gigabit, Gigabit Ethernet and Ethernet specifications. It provides 8 gigabit Ethernet ports (10/100/1000 Mbps TP) 2 SFP ports.
The switch can be managed through RS-232 serial port via direct connection, or through Ethernet port using Telnet or Web-Based management unit, associated with SNMP agent. With the SNMP agent, the network administrator can logon the switch to monitor, configure and control each port activity in a friendly way. The overall network management is enhanced and the network efficiency is also improved to accommodate high bandwidth applications. In addition, the switch features comprehensive and useful function such as QoS (Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON .
Application
Specification
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |
|---|---|
| Status | POWER, ALARM, TP Port LED |
| Ethernet | |
|---|---|
| Ports | 8 x RJ-45, 10/100/1000Base-TX |
| Standards |
Port Mirroring for network monitoring IEEE 802.1Q VLAN (Tag-based) IEEE 802.1X Access Control IEEE 802.1D / 802.1w (RSTP) / 802.1s (MSTP) IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z Gigabit Ethernet (Fiber) Unknown Unicast / Broadcast / Multicast Storm Control IP–MAC–Port Binding for LAN Security QCL-based QoS & Rate Limitation DHCP Snooping Support ACL (Ethernet Type / ARP / IPv4) Filtering & Rate Control Green Ethernet Power Saving LLDP (Link Layer Discovery Protocol) |
| Processing Type | Store & Forward |
| MAC Table | 8K |
| Protocol | VLAN, QoS, Port Trunk, NTP, TELNET, SNMP, IGMP, IEEE 802.1X, LLDP |
| Redundant Strategy | STP, RSTP |
| Isolation | 1500 Vrms (1 minute) |
| Fiber | |
|---|---|
| Ports | 2 × 100 / 1000 Mbps SFP Fiber Module Slots |
| COM Ports | |
|---|---|
| Ports | 1 × RS-232 |
| Power | |
|---|---|
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 10.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) |
DIN-rail mounting: 57 × 164 × 121 (W × L × H) Wall mounting: 57 × 203 × 113 (W × L × H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 ~ 95% RH, non-condensing |
