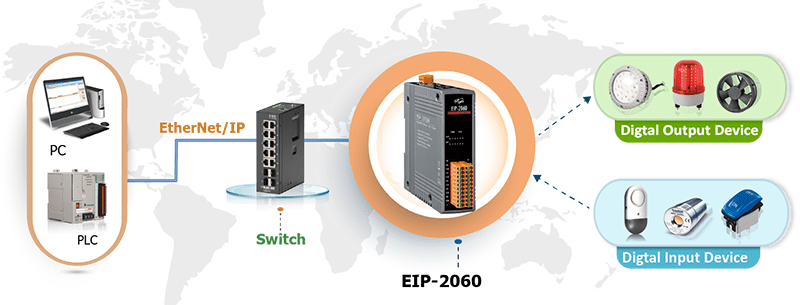

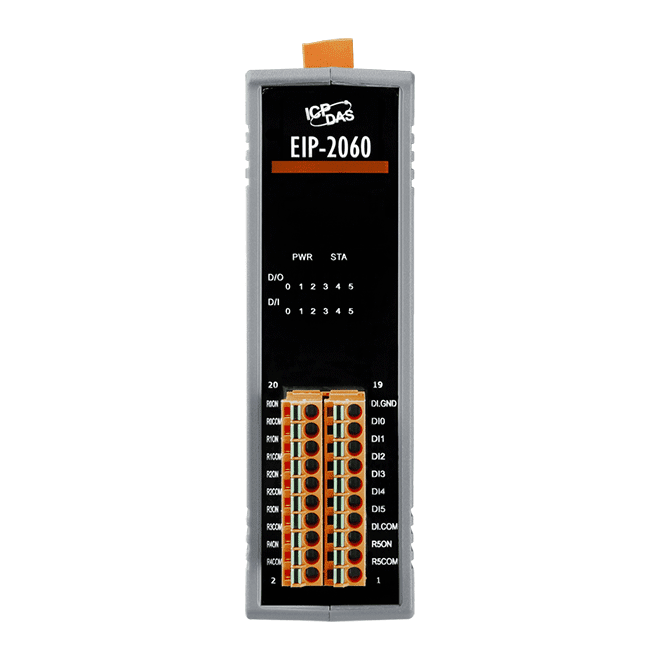

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2060 is a remote digital I/O module with 6 DIs and 6 Relay. It is designed as an EtherNet/IP adapter. Users can obtain the I/O status as well as the connection status of the EIP-2060 by the LEDs. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.
| Model |
Digital Input & Output Module |
| Module Name |
IP-2042 |
EIP-2051 |
EIP-2055 |
EIP-2060 |
| Digital Input |
| Channels |
- |
16 |
8 |
6 |
| Contact |
Dry + Wet |
| Sink / Source |
Sink/Source |
| Wet Contact ON Voltage |
+10 ~ 50 VDC |
| Wet Contact OFF Voltage |
+4 VDC Max. |
| Dry Contact ON |
Close to GND |
| Dry Contact OFF |
Open |
| Input Impedance |
10 kΩ, 0.5 W |
| Digital Output |
| Channels |
16 |
- |
8 |
6 |
| Type |
Open Collector |
Open Collector |
Power Relay |
| Sink / Source |
Sink (NPN) |
Sink (NPN) |
Form A |
| Load Voltage |
+3.5 ~ 50 VDC |
+3.5 ~ 50 VDC |
30 VDC / 125 VAC |
| Max. Load Current |
700 mA/Channel |
700 mA/Channel |
5 A @ 30 VDC
5 A @ 125 VAC |
| Overvoltage Protection |
60 VDC |
60 VDC |
- |
| Overload Protection |
Yes |
Yes |
- |
| Power-on Value |
Yes |
Yes |
Yes |
| Safe Value |
Yes |
Yes |
Yes |
