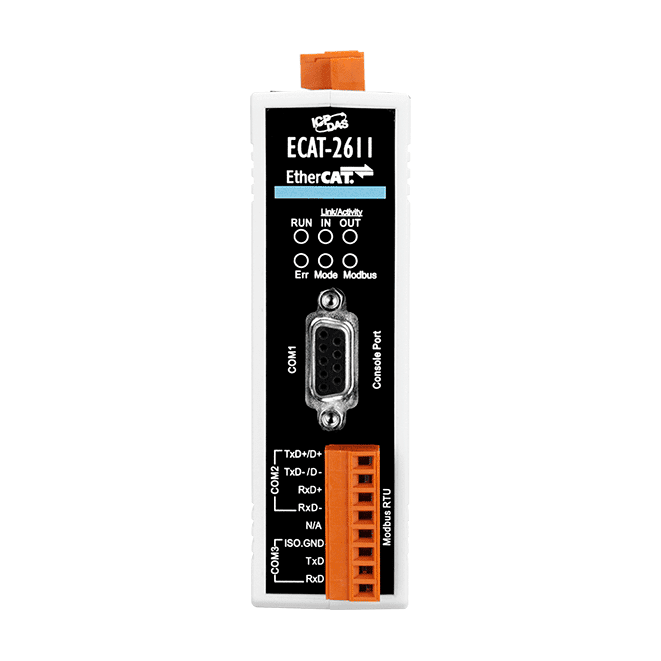

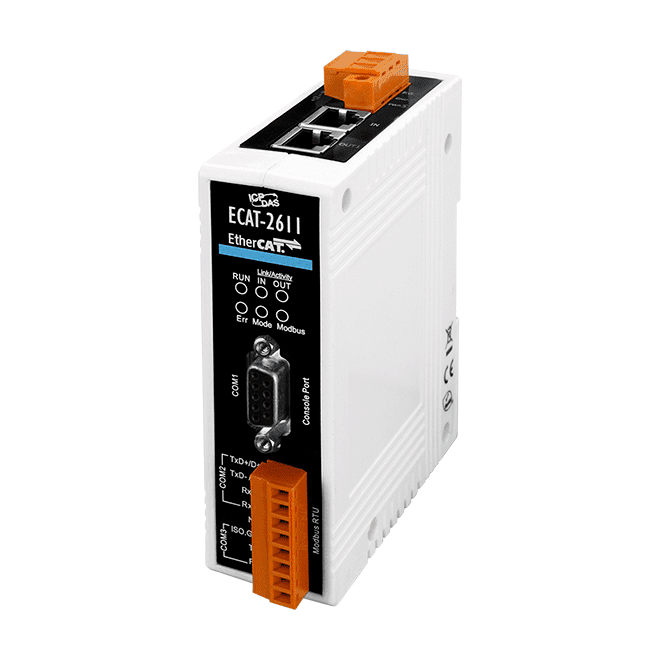

EtherCAT SubDevice to Modbus RTU SubDevice Gateway
Features
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 EtherCAT connectors
- Transfer of I/O data between two networks
- Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
- Requires no hardware or software changes to be made to the connected device
- Compatible with all PLCs with EtherCAT support
- Performs complete serial protocol conversion, no PLC function blocks required
- Supports maximum 256 WORD Input and 256 WORD Output Data
- Supports serial port interface
- Supports Modbus RTU (SubDevice) protocol
- Supports RS-232/422/485 Port
- Supports maximum Baud Rate 115200 bps
- Supports Modbus Function code 03, 04, 06 and 16
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

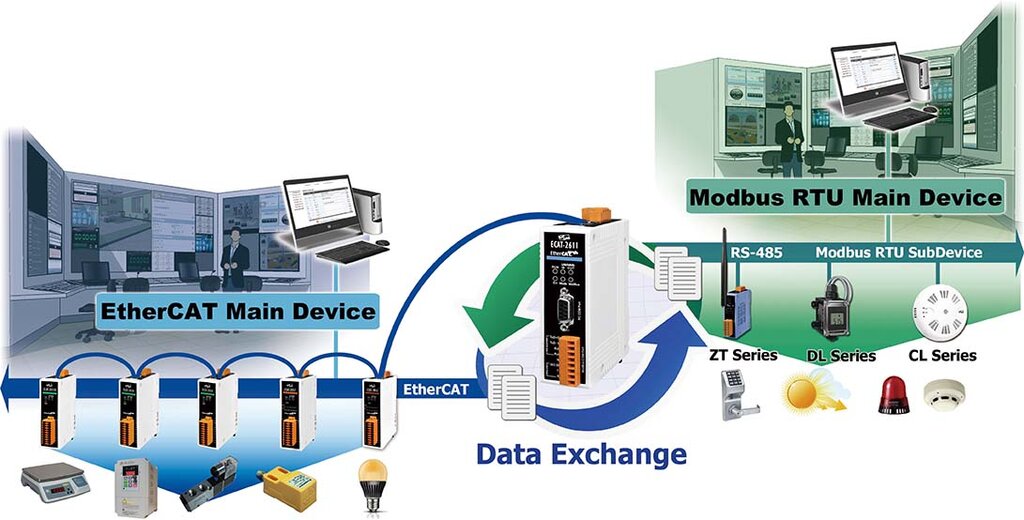

The ECAT-2611 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus RTU networks. The ECAT-2611 acts as a SubDevice on both networks, allowing I/O data to be transferred between the two networks.
| EtherCAT Slave Gateway | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Cyclic Time | Distributed Clocks | EtherCAT Interface | Protocol | Comm Interface | Remark | ||
| ECAT-2610 | 10 ms | - | 2 × RJ45 | Modbus RTU (Master) | 1 × RS-232/422/485 | - | ||
| ECAT-2611 | 10 ms | - | 2 × RJ45 | Modbus RTU (Slave) | 1 × RS-232/422/485 | - | ||
| ECAT-2610-DW | 10 ms | - | 2 × RJ45 | Modbus RTU (Master) | 1 × RS-232/422/485 | Supports ICP DAS Modbus RTU meter | ||
| ECAT-2612 | 10 ms | - | 2 × RJ45 | Modbus TCP (Master) | 1 × RJ45 | - | ||
| ECAT-2613 | 10 ms | - | 2 × RJ45 | Modbus TCP (Slave) | 1 × RJ45 | - | ||
| ECAT-2614C | 10 ms | - | 2 × RJ45 | CANopen (Master) | 1 × RS-232 | Supports DS401 | ||
| ECAT-2615C | 10 ms | - | 2 × RJ45 | CANopen (Slave) | 1 × RS-232 | - | ||
| ECAT-2614D | 10 ms | - | 2 × RJ45 | DeviceNet (Master) | 1 × RS-232 | - | ||
| ECAT-2615D | 10 ms | - | 2 × RJ45 | DeviceNet (Slave) | 1 × RS-232 | - | ||
| ECAT-2718 | 10 ms | Yes | 2 × M12 (D-Code) | IO-Link | 8 × M12 (A-Code) | - | ||
Application
Specification

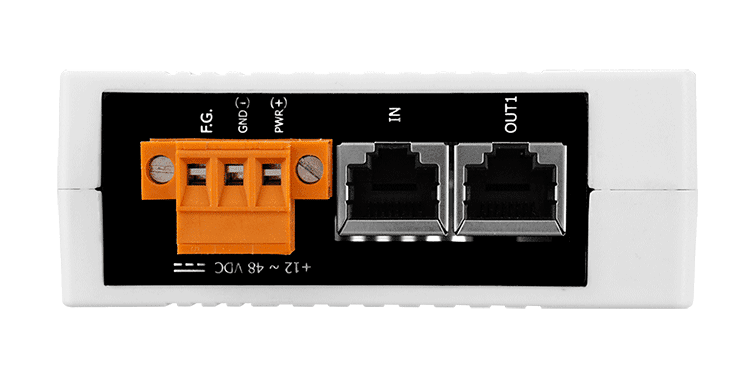

| COM Ports | |
|---|---|
| Ports | 1 x RS-232 / RS-422 / RS-485 |
| Protocol | Modbus RTU (Slave) |
| EtherCAT | |
|---|---|
| Ports |
RJ-45 x 2 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 10 ms |
| Distributed Clocks | N/A |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 × 127 × 99 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 to +75 °C |
| Storage Temperature | -30 to +80 °C |
| Humidity | 10 to 90% RH (non-condensing) |
