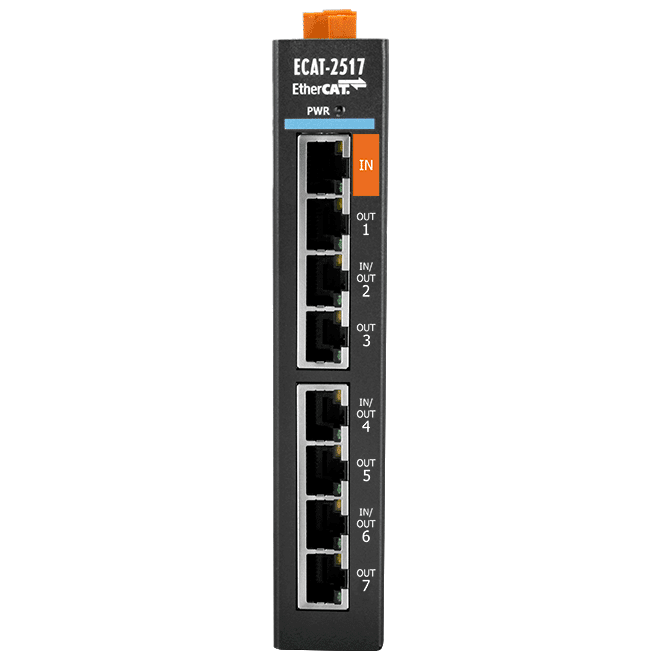

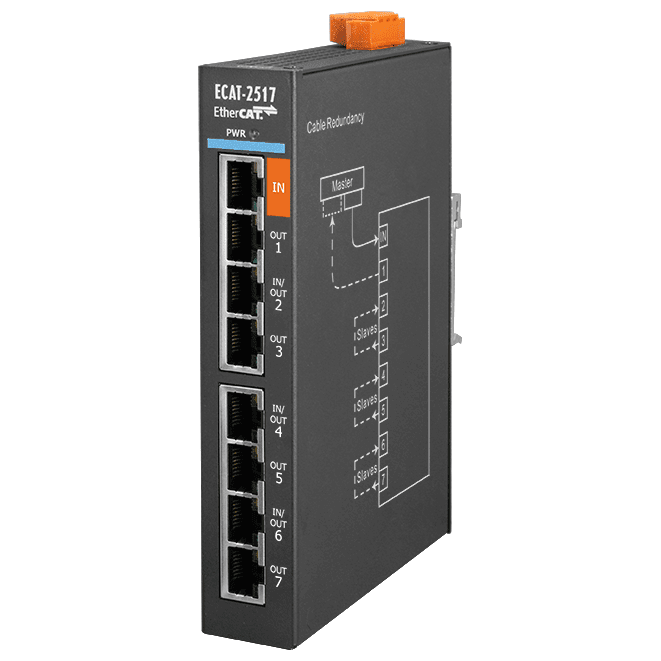

8-port EtherCAT Junction SubDevice Module
Features
- Maximum distance between Stations can be up to 100 m (100BASE-TX)
- Support daisy chain and star connection
- EtherCAT conformance test tool verified
- ESD Protection 4 KV Contact for each port
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
ECAT-2517 is 1-to-7 port EtherCAT junction SubDevice. It is designed to implement wiring deployment by daisy chain and branch more flexibly and easy to maintain.
| Model | EtherCAT | |
|---|---|---|
| Ports | No. of Nodes | |
| ECAT-2512 | 3 × RJ-45 (1 IN / 2 OUT) | 1 |
| ECAT-2513 | 4 × RJ-45 (1 IN / 3 OUT) | 2 |
| ECAT-2515 | 6 × RJ-45 (1 IN / 5 OUT) | 4 |
| ECAT-2517 | 8 × RJ-45 (1 IN / 7 OUT) | 6 |

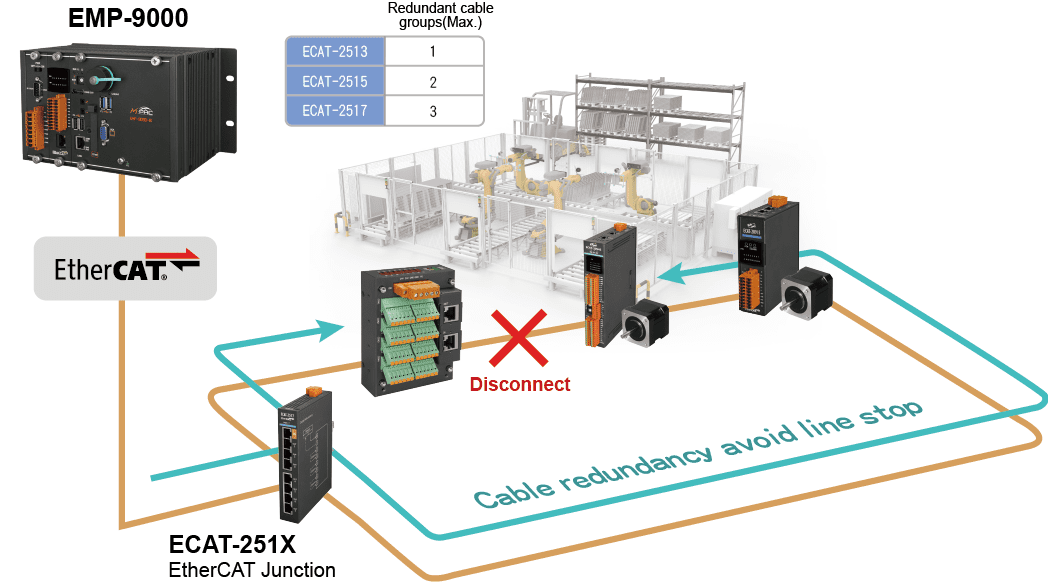

Application
Specification
| EtherCAT | |
|---|---|
| Ports | 8 × RJ-45 (1 IN; 7 OUT) |
| No. of Nodes | 6 |
| Distance Between Stations | Max. 100 m (100BASE-TX) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.23 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 28 × 154 × 110 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
