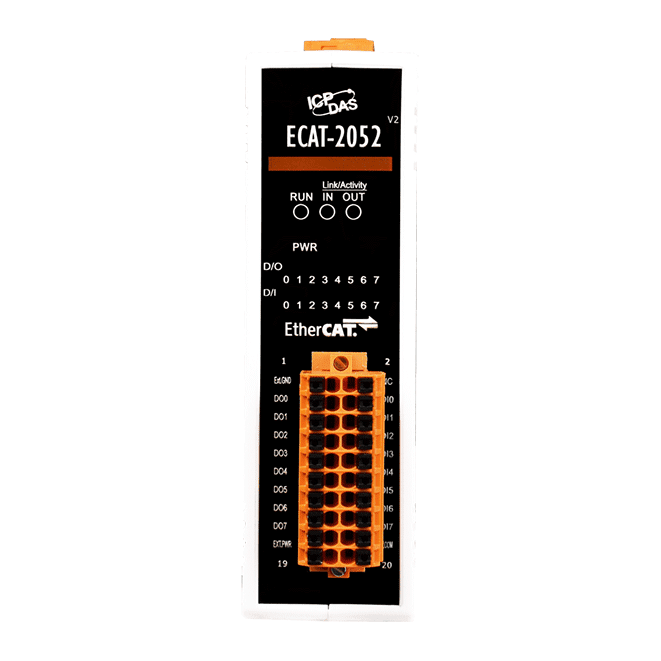

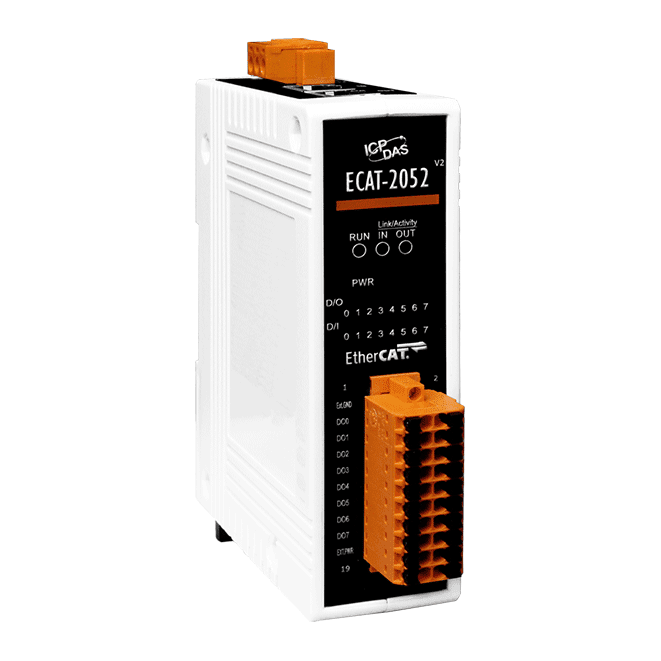

ECAT-2052
ECAT-2052
EtherCAT SubDevice I/O Module with Isolated 8-ch DI and 8-ch DO
Features
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connectionn
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In digital I/O: 8 DI and 8 DO
- ESD Protection 4 KV Contact for each channel
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2052 is built in isolated 8 digital inputs and 8 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Main Device or configurator can manipulate it simply and implement your various applications easily.
| DC Digital I/O | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | EtherCAT | Digital Input | Digital Output | |||||
| Cycle Time | Distributed Clocks | Channel | Type | Channel | Type | Max. Load Current | ||
| ECAT-2057 | 200 µs | Yes | - | - | 16 | Open Collector (Source, PNP) |
100 mA/Channel | |
| ECAT-2057P | 500 mA/Channel | |||||||
| ECAT-2057-NPN | Open Collector (Sink, NPN) |
100 mA/Channel | ||||||
| ECAT-2057-8P8N | 16 | Open Collector (Sink, NPN) |
||||||
| Open Collector (Source, PNP) |
||||||||
| ECAT-2057-32 | 32 | Open Collector (Source, PNP) |
500 mA/channel | |||||
| ECAT-2045 | 200 µs | Yes | - | - | 16 | Open Collector (Sink, NPN) |
700 mA/channel | |
| ECAT-2045-32 | 1 ms | 32 | 500 mA/channel | |||||
| ECAT-2045K-32 | ||||||||
| ECAT-2051 | 200 µs | Yes | 16 | Dry (Source), Wet (Sink/Source) |
- | - | - | |
| ECAT-2051-32 | 1 ms | 32 | ||||||
| ECAT-2050 | 200 µs | Yes | 13 | Dry (Source), Wet (Sink/Source) |
4 | Open Collector (Sink NPN / Source PNP) |
100 mA/channel | |
| ECAT-2052 | 200 µs | Yes | 8 | Wet (Sink/Source) | 8 | Open Collector (Source, PNP) |
100 mA/channel | |
| ECAT-2052-NPN | Open Collector (Sink, NPN) |
|||||||
| ECAT-2053 | 200 µs | Yes | 16 | Wet (Sink/Source) | - | - | - | |
| ECAT-2055 | 200 µs | Yes | 8 | Dry (Source), Wet (Sink/Source) |
8 | Open Collector (Sink, NPN) |
700 mA (Single Output) | |
| ECAT-2055-32 | 1 ms | 16 | 16 | 700 mA/channel | ||||
| ECAT-2060 | 200 µs | Yes | 6 | Dry (Source), Wet (Sink/Source) |
6 | Relay, Form A (SPST-NO) |
5 A/channel | |
| ECAT-2061 | - | - | 16 | |||||
Application
Specification
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV (Class A); Power: ±1 kV (Class A) |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ±1 kV (Class A) |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 V ~ +50 V |
| OFF Voltage Level | +2 V (Max.) |
| Isolation | 3750 VDC |
| Digital Output | |
|---|---|
| Channels | 8 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Source (PNP) |
| Load Voltage | +3.5 VDC ~ +50 VDC |
| Load Current | 100 mA per channel |
| Isolation | 3750 Vrms |
| EtherCAT | |
|---|---|
| Ports | 2 × RJ-45 |
| Distance Between Stations | Max. 100 m (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 200 µs |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Power Consumption | Max. 4 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 × 127 × 108 (W × L × H) |
| Installation | DIN-Rail Mount |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
