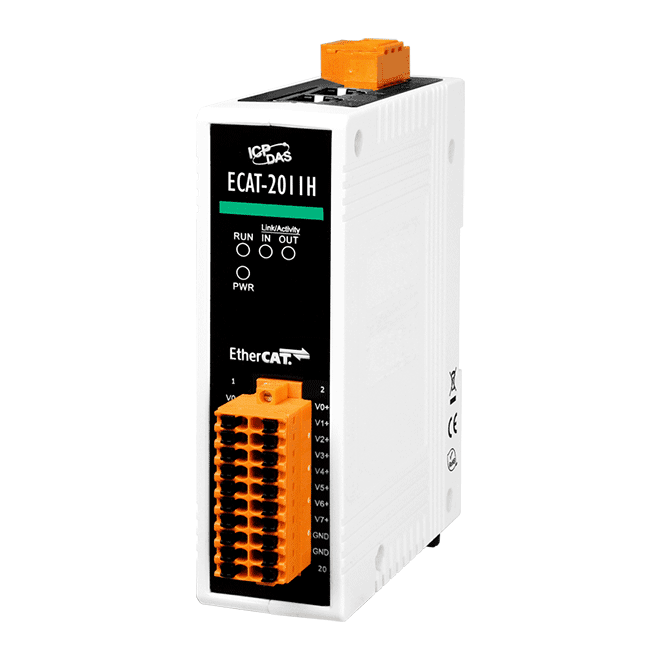

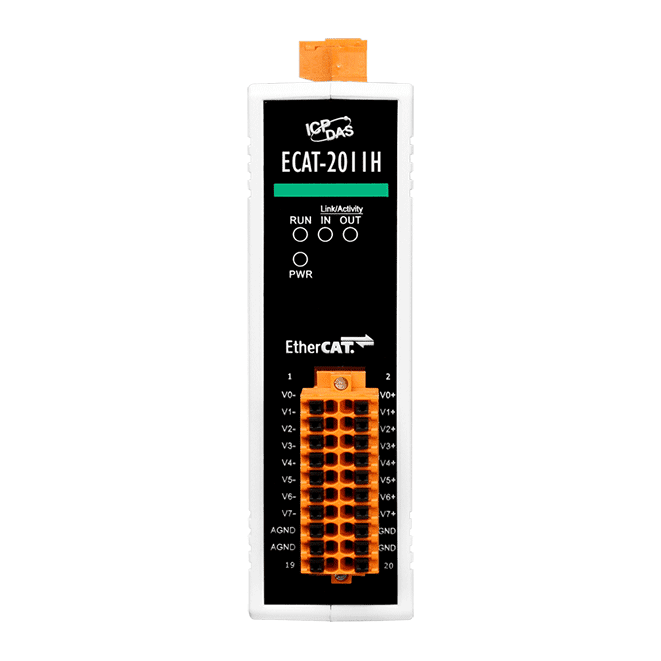

ECAT-2011H
ECAT-2011H
EtherCAT SubDevice I/O Module with 12-bit, 16-ch AI
Features
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators
- 12-bit 16 S.E/8 Diff. Analog Inputs
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The ECAT-2011H is built in 8-ch differential inputs or 16-ch single-ended inputs by software selectable. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Main Device or configurator can manipulate it simply and implement your various applications easily.
| Model | EtherCAT | Analog Input (AI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Cycle Time | Distributed Clocks | Channel | Resolution | Sampling Rate | Input Range | Sensor Input | Accuracy | |
| ECAT-2011H | 1 ms | N/A | 8 Diff / 16 S.E | 12-bit | 1 kHz / channel |
0 ~ 10 V, ±10 V, ±5 V, ±2.5 V, 0 ~ 20 mA, ±20 mA, 4 ~ 20 mA (Software selectable) |
- | ±0.2% of LSB |
| ECAT-2012H | 16-bit |
1 kHz / channel (Max. for 6 channels enabled) |
±0.05% of LSB | |||||
| ECAT-2016-3 | 3 (Strain Gauge) | 16-bit | 1 kHz / channel |
±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312 mV, ±200 mV, ±100 mV, ±50 mV, ±25 mV |
Full-Bridge | ±0.1% of FSR | ||
| ECAT-2016N | 1 (Strain Gauge) |
±1.25 V, ±600 mV, ±300 mV, ±125 mV, ±80 mV, ±60 mV, ±40 mV, ±30 mV, ±20 mV, ±15 mV, ±10 mV |
||||||
Application
Specification
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV (Class A); Power: ±1 kV (Class A) |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ±1 kV (Class A) |
| Analog Input | |
|---|---|
| Channels | 8 Differential or 16 Single-ended (Software Selectable) |
| Type | Voltage, Current |
| Range |
0 ~ 10 V, ±10 V, ±5 V, ±2.5 V, 0 ~ 20 mA, ±20 mA, 4 ~ 20 mA, ±4 ~ 20 mA (Software selectable) |
| Resolution | 12-bit |
| Accuracy | 0.2% of FSR |
| Sampling Rate | 1 kHz per channel |
| Overvoltage Protection | ±35 VDC |
| Individual Channel Configuration | Yes (Range & Filter setting function not supported) |
| Open Wire Detection | No |
| EtherCAT | |
|---|---|
| Ports | 2 × RJ-45 |
| Distance Between Stations | Max. 100 m (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W (Max.) |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 × 127 × 108 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
