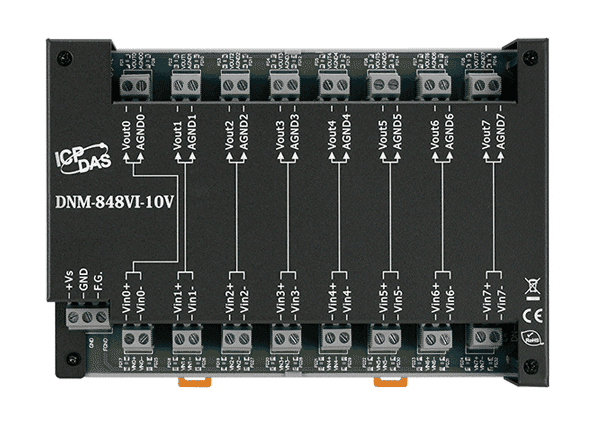

DNM-843VI/848VI series
DNM-843VI/848VI series
3-channel / 8-channel Voltage Attenuator with channel to channel isolation
Characteristic
- AC/DC Source Input
- High Voltage Input Measurement
- Linear Attenuation Ratio
- High Input Impedance
- Channel to Channel Isolation
- 4 kV ESD Protection
- 3 kV Surge Protection
- Easily Wire Connection
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The DNM-843VI series and DNM-848VI series are voltage input attenuator. The maximum input range is from ±10 Vpp to ±800 Vpp can be attenuated to ±10 Vpp. provide 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high voltage.
| Voltage Attenuator | |||||||
|---|---|---|---|---|---|---|---|
| metal cover | without metal cover | Input Channel | Input Type | Input Range | CT Type | Cable | Output |
| - | DN-843V-600V
|
3 x Voltage | AC/DC | ±600 Vpp | N/A | N/A | ±10 Vpp |
| DNM-843VI-600V
|
DN-843VI-600V
|
||||||
| DNM-843VI-800V
|
- | ±800 Vpp | |||||
| DNM-848VI-10V
|
DN-848VI-10V
|
8 x Voltage | ±10 Vpp | ||||
| DNM-848VI-80V
|
DN-848VI-80V
|
±80 Vpp | |||||
| DNM-848VI-150V
|
DN-848VI-150V
|
±150 Vpp | |||||

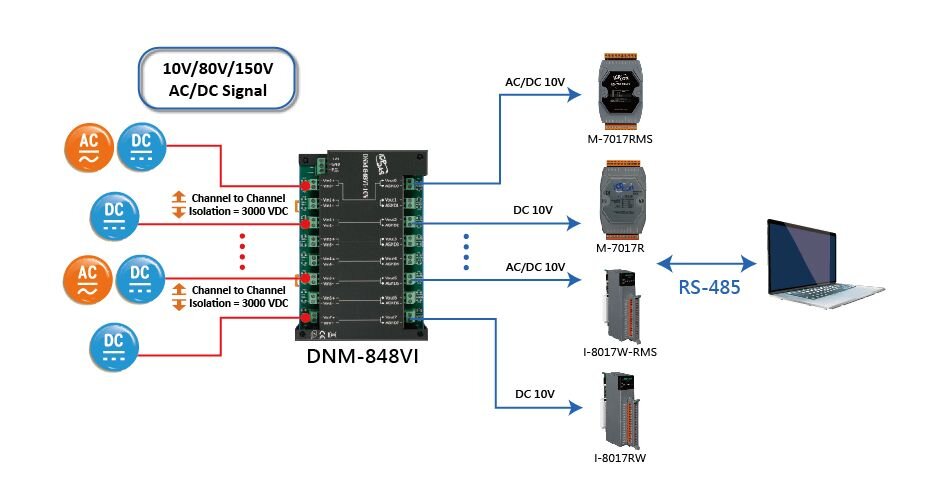

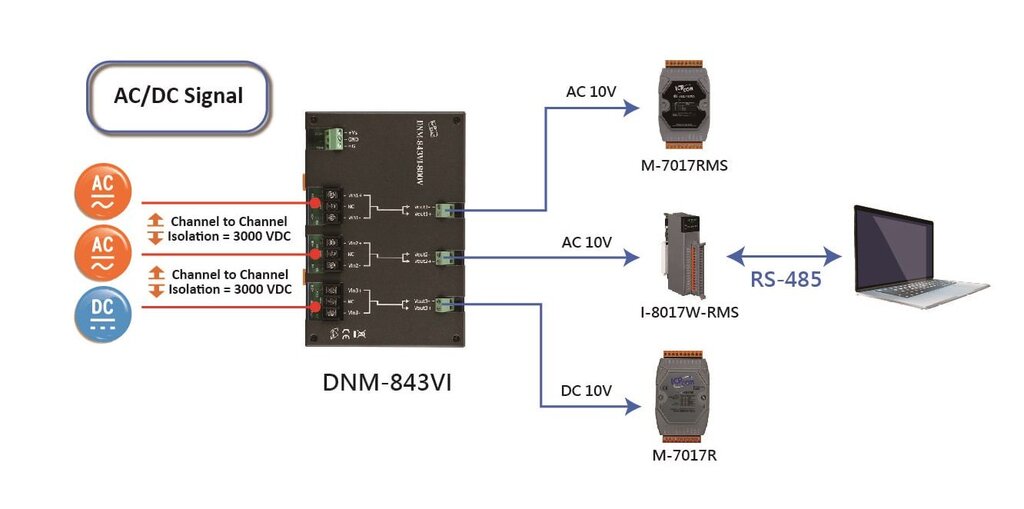

Application
Specification
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) |
±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power line |
| Analog Input | |
|---|---|
| Channels |
3 : DNM-843VI-600V, DNM-843VI-800V 8 : DNM-848VI-10V, DNM-848VI-80V, DNM-843VI-150V |
| Type | AC/DC Voltage |
| Range | ±10 ~ ±800 Vpp |
| Accuracy | 1% of FSR |
| Bandwidth | 30 KHz |
| Input Impedance | >1 MΩ |
| Channel-to-Channel Isolation | 3000 VDC |
| Intra-module Isolation | 3000 VDC |
| Analog Output | |
|---|---|
| Channels |
3 : DNM-843VI-600V, DNM-843VI-800V 8 : DNM-848VI-10V, DNM-848VI-80V, DNM-843VI-150V |
| Type | AC/DC Voltage |
| Range | ±10 Vpp |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption |
0.56 W : DNM-843VI-600V, DNM-843VI-800V 9.2 W : DNM-848VI-10V, DNM-848VI-80V, DNM-843VI-150V |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) |
173 x 122 x 25 (W x L x D) : DNM-843VI-600V, DNM-843VI-800V 173 x 122 x 35 (W x L x D) : DNM-848VI-10V, DNM-848VI-80V, DNM-843VI-150V |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
