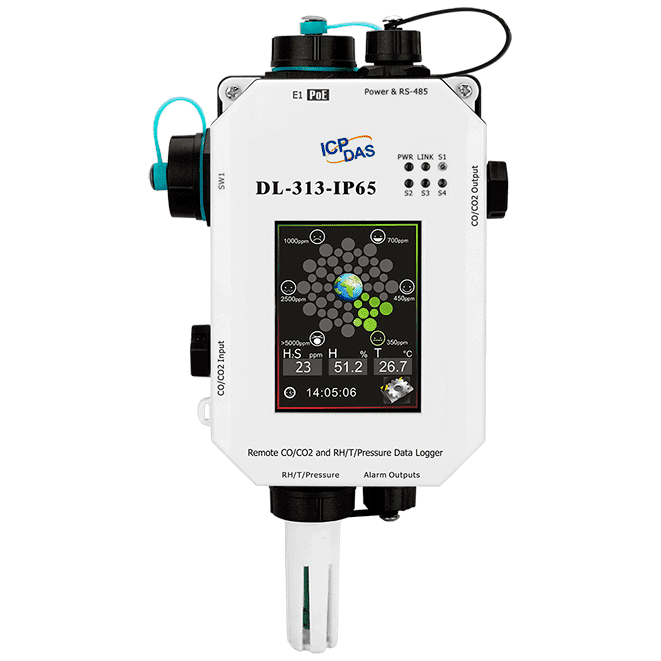

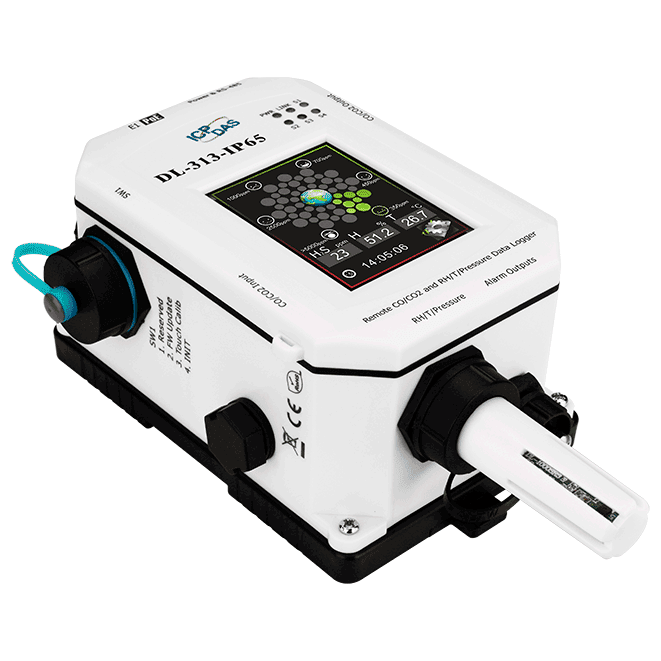

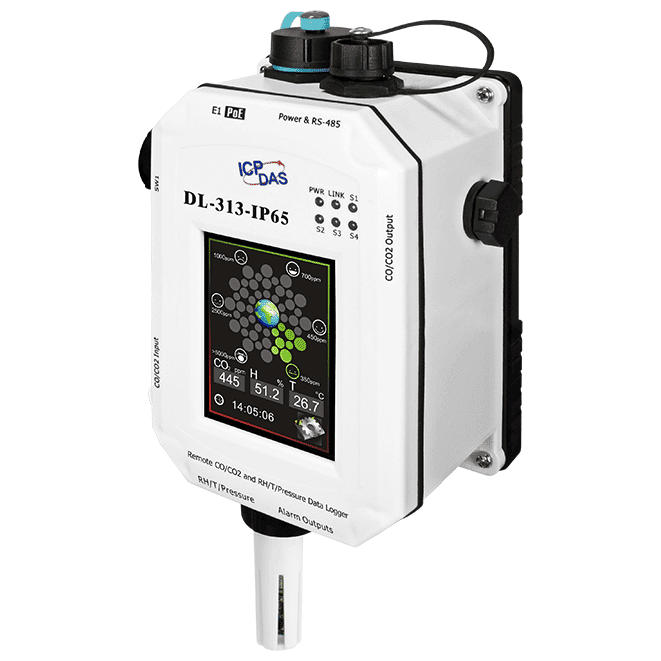

IP65 Remote CO/CO2/Temperature/Humidity/Dew Point/Pressure Data Logger with Safety Alarm (RS-485, Ethernet, PoE)
Features
- Able to record CO, CO2, Temperature, Humidity, Dew Point and Pressure Measurements
- Non-dispersive Infrared (NDIR) CO2 Sensor
- Electrochemical Sensor
- 2.8" LCD Touch Screen
- Up to 450,000 records with date and time stamps
- Touch-screen and Web-based Configuration Interface
- Simple and Powerful Software Utility, iOS APP and Android App Included
- Able to Display Multilingual Messages on the Screen
- Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
- Includes RS-485/Ethernet/PoE Communication Interfaces
- Relay Output for Audible/Visual Alarm or IAQ Device Control
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- IP65 Protection Approval
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The DL-300-IP65 series of Data Logger devices can be used to record CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300-IP65 Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol - MQTT. The DL-300-IP65 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

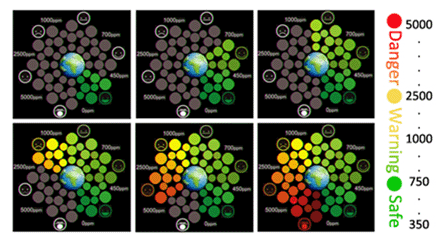

► Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level

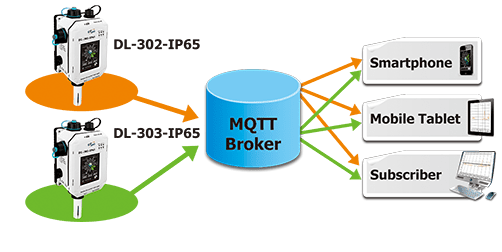

►Supports the MQTT Protocol for IoT Applications
► Free and Power DL300 Utility Software

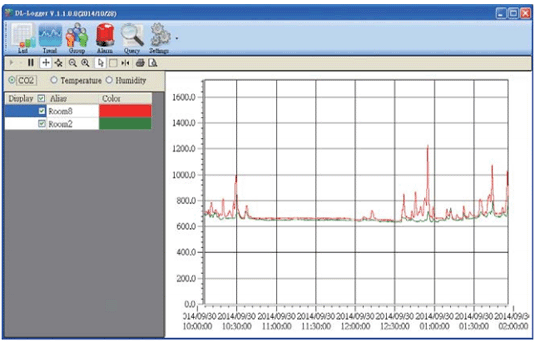

The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV fi le that can then be imported into any industry-standard software or spread sheet for analysis.
► Display Messages in Multiple Languages

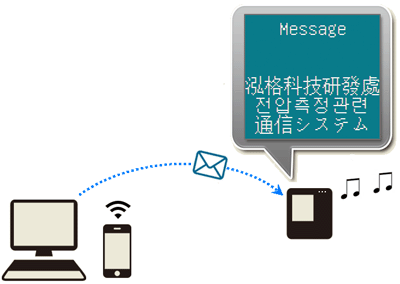

The display-message-on-screen function supports multiple language character sets based on UTF-8 encoding. Users can remotely display either pre-configured messages or dynamic messages to prompt an operator with a daily schedule or IAQ device control instructions.
► Multi-platform Remote Access Software

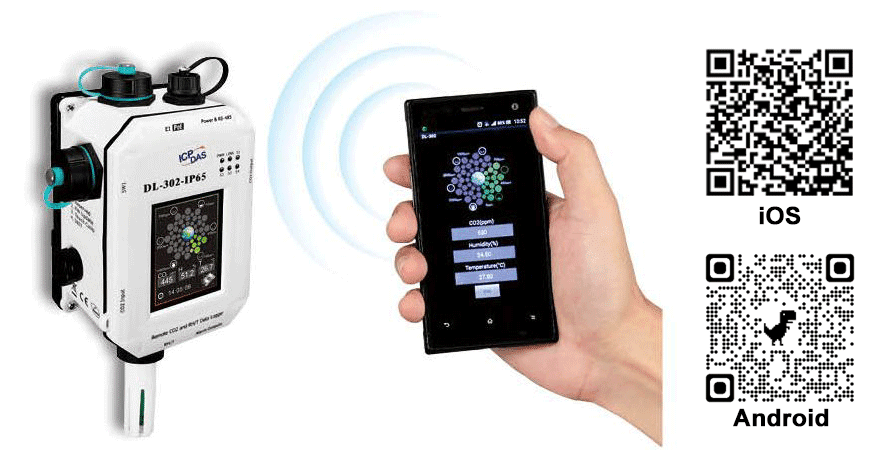

Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.
| Series | Basic Type (RS-485 + Ethernet/PoE) |
Wi-Fi | Type of Sensor | IP Code | |||
| DL-31X-IP65 |
Fume Sensor | Pressure | Temperature | Humidity | |||
| DL-311-IP65 | DL-311-WF-IP65 | CO | Yes |
Yes | Yes | IP65 | |
| DL-312-IP65 | DL-312-WF-IP65 | CO2 | |||||
| DL-313-IP65 | DL-313-WF-IP65 | CO + CO2 | |||||
| DL-314-IP65 | DL-314-WF-IP65 | HCHO + TVOC | |||||
| DL-315-IP43 | DL-315WF-IP43 | NH3 | IP43 | ||||
| DL-316-IP65 | DL-316-WF-IP65 | H2S | IP65 | ||||
| DL-317-IP65 | DL-317-WF-IP65 | HCHO | |||||
| DL-318-IP65 | DL-318-WF-IP65 | TVOC | |||||

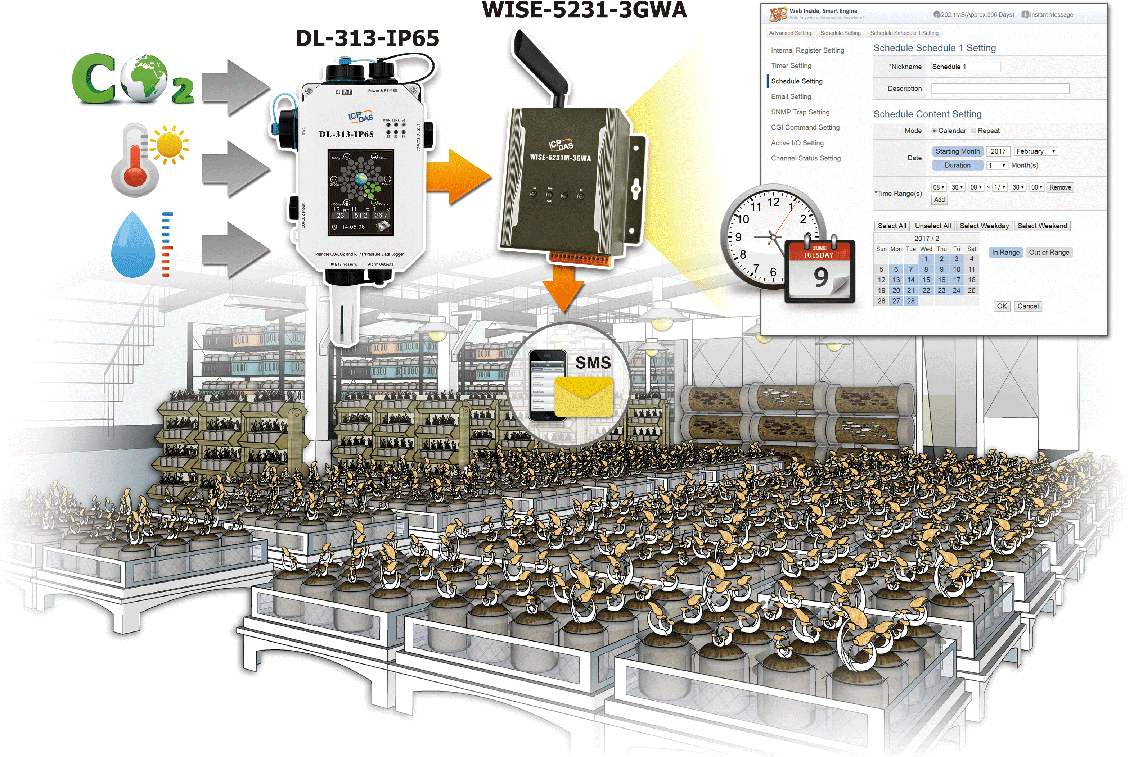

Application
Specification
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Real Time Clock | Yes |
| Watchdog Timer | Yes, Module (2.3 sec), Communication (Programmable) |
| Display | |
|---|---|
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Yes |
| LCD Information Displayed | 2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3 Backlight Life 20,000 hours |
| LED Indicators | |
|---|---|
| Status | PWR: Green for normal operation Link: Green for the Ethernet-linked S1 ~ S4: Red for an alarm condition |
| System | |
|---|---|
| Security | IP filter (whitelist) and Password (web) |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Temperature Measurement | |
|---|---|
| Range | -20 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Humidity Measurement | |
|---|---|
| Range | 0 ~ 100% RH, Non-condensing |
| Resolution | 0.1% RH, Non-condensing |
| Accuracy | ±5% RH, Non-condensing |
| Dew Point | |
|---|---|
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| CO Measurement | |
|---|---|
| Sensor Type | Electrochemical Sensor |
| Range | 0 ~ 1000 ppm |
| Resolution | 1 ppm |
| Accuracy | ±5% of measured value |
| Response Time | 30 seconds |
| Warm-up Time | 300 seconds |
| CO2 Measurement | |
|---|---|
| Sensor Type | Non-dispersive infrared (NDIR) Sensor |
| Range | 0 ~ 9999 ppm |
| Resolution | 1 ppm |
| Accuracy | ±30 ppm ±3% of measured value |
| Response Time | 20 seconds |
| Warm-up Time | 60 seconds |
| Atmospheric Pressure | |
|---|---|
| Range | 300 ~ 1200 hPa |
| Accuracy | 1 hPa |
| Resolution | 0.1 hPa |
| Relay Output | |
|---|---|
| Type | PhotoMos Relay × 4, 100 VDC @ 1 A |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| PoE | Yes |
| Protocol | Modbus/TCP, MQTT |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | DCON, Modbus/RTU |
| Power | |
|---|---|
| Consumption | PoE: 3.1 W (Max.) Non-PoE: 2.8 W (Max.) |
| Powered from PoE | IEEE 802.3af, Class 1 (48 V) |
| Powered from Terminal Block | +12 ~+48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 116 x 211 x 70 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Ingress Protection Rating | IP65 |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
