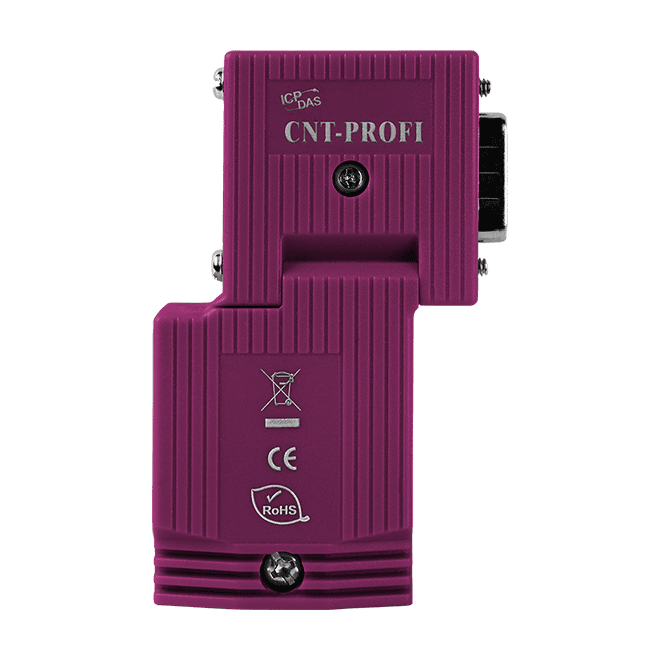

CNT-PROFI
CNT-PROFI
PROFIBUS Connector
Features
- Built-in switch to select terminal resistor
- 2 cable entries
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
PROFIBUS (PROCESS FIELD BUS) which is anchored in the international standards IEC 61158 and IEC 61784 is an open, digital communication system with a wide range of applications, particularly in the fields of factory and process automation. The CNT-PROFI connector is used to connect a PROFIBUS node to the PROFIBUS line featuring quick-connect technology, making the stripping of bus conductors superfluous. The connector is quick to install, and has a plastic housing and integrated terminating resistors. Anyway the CNT-PROFI could link a PROFIBUS device to a PROFIBUS line easily and fast.

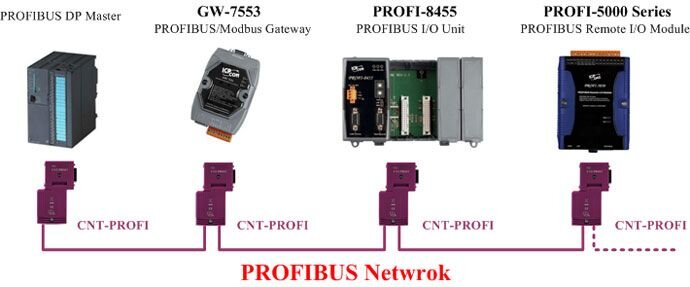

Application
Specification
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| PROFIBUS | |
|---|---|
| Baud Rate | 9.6 kbps ~ 12 Mbps |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
| Cable | |
|---|---|
| Type | 9-pin D-Sub male connector |
| Angle | 90° cable outlet |
