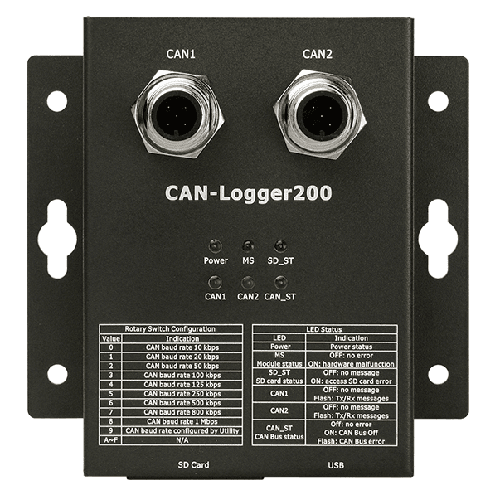

CAN-Logger200
CAN-Logger200
2-port CAN Bus Data Logger Device
Features
- Compatible with CAN specification 2.0 parts A and B
- 2500 Vrms photocoupler isolation on the CAN side
- Full compatible with the ISO 11898-2 standard
- Supports CAN bus acceptance filter configuration
- Max. CAN data flow for a single channel is 15000 fps
- Programmable CAN bus baud rate from 10 kbps ~ 1Mbps
- USB 2.0 High Speed Compatibility
- Supports 4 to 32 GB SDHC type flash for saving CAN messages
- Built-in jumper for the 120 Ω terminal resistor of the CAN side
- Power by the USB port or CAN port
- 3 kV galvanic isolation for the CAN port
- Provides a configuration utility that can be used to transmit/receive CAN messages
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The CAN-Logger200 are high-performance intelligent CAN bus data logger device with one/two CAN port that can help to make data collection and to process on a CAN bus network easier and quicker. The powerful CPU of the CAN-Logger devices provide the accurately time-stamp for each CAN message and supports storage media like SD or SDHC type flash for saving these CAN messages that is useful to analysis and diagnostic the CAN Bus network. In order to enhance the portability of the CAN-Logger200, this module is powered by the USB interface or M12 connectors of CAN bus interface. The CAN-Logger devices use the standard USB HID driver of the Windows system.
| CAN Bus Data Logger | |
|---|---|
| Model | Description |
| CAN-Logger100 | 1-port CAN Bus Data Logger Device |
| CAN-Logger200 | 2-port CAN Bus Data Logger Device |

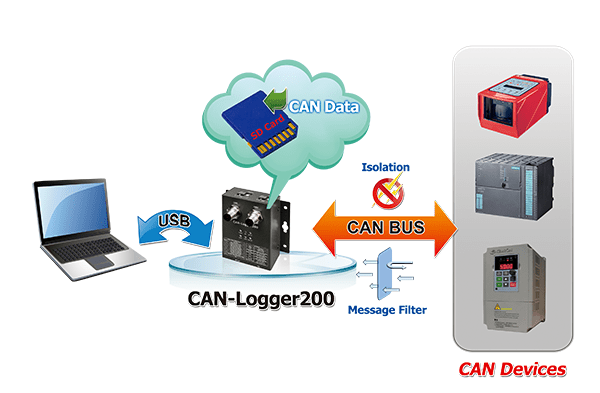

Application
Specification
| Data Logger | |
|---|---|
| Trigger Mode | Continuous logging |
| Time Stamp Resolution | 10 µs |
| Storage Media | SDHC flash (supports 4 GB to 32 GB) |
| File Format | Binary |
| Configuration | Utility tool |
| LED Indicators | |
|---|---|
| Status |
1 × Power 1 × Module Status 1 × SD Status 3 × CAN Status |
| USB | |
|---|---|
| Specification | USB 2.0 (High-Speed) |
| Transfer Speed | 480 Mbps (High-Speed mode) |
| Connector | 1 × USB Type-B (Utility port) |
| Driver Support | Built-in support for Windows 7 / 8.1 / 10 |
| CAN | |
|---|---|
| Ports | 2 |
| Specification | ISO 11898-2, CAN 2.0A, CAN 2.0B |
| Baud Rate | 10 kbps ~ 1 Mbps |
| Isolation |
3000 VDC (DC-to-DC) 2500 Vrms (Opto-isolation) |
| Termination Resistor | 120 Ω termination resistor (DIP switch selectable) |
| Filter | Yes |
| Connector | 2 × 5-pin M12 male |
| Data Flow | 15,000 fps (Rx) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC or USB power delivery |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 102 x 102 x 44 (W x L x H) |
| Installation | Wall Mount |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
