CAN-2088C
CAN-2088C

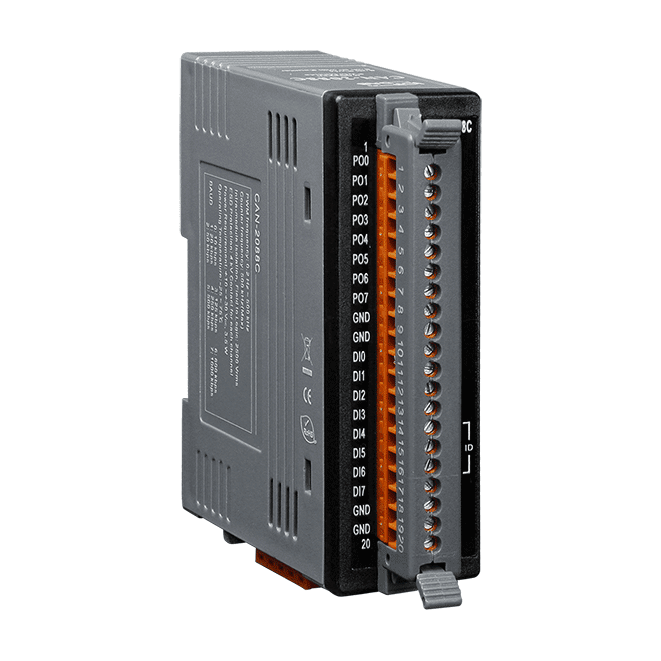

CANopen Slave Module of 8-channel PWM Output, 8-channel High Speed Counter Input
Features
- Hardware-controlled PWM output
- PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle
- PWM Output Modes: software trigger / hardware trigger
- Trigger each PWM output individually or all PWM outputs synchronously
- Support Burst output mode and Continue output mode
- Provide 32-bit 500 kHz high-speed counter for each DI channel
- Pass the validation of CANopen conformance test
- Provide EDS file for CANopen master interface
- Introduction

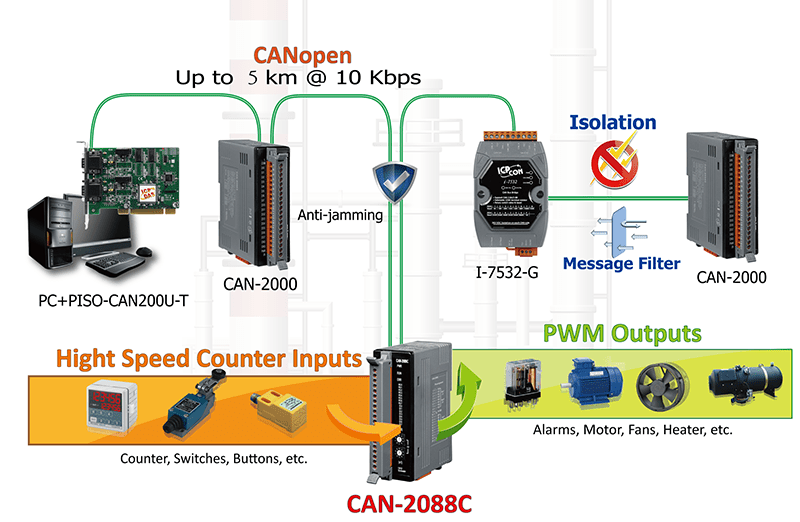

- Application
- Specification
- Download
- Get A Quote
Introduction
PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088C is a PWM slave module of CANopen protocol. It has 8 PWM output channels and 8 high speed counter channels. It can be used to develop powerful and cost effective analog control system.
Counter / PWM Modules
| Model | Counter Input | PWM Output | ||||||
|---|---|---|---|---|---|---|---|---|
| Channels | Signal | Resolution | Speed | Channels | Load Current | Resolution | Speed | |
| CAN-2084C | 4 / 8 |
Up, Up/Down, Dir/Pulse, A/B Phase, Frequency |
32-bit | 250 kHz | — | |||
| CAN-2088C | 8 | Up Counter | 32-bit | 500 kHz | 8 | 1 mA | 16-bit | 500 kHz |
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Hardware Watchdog |
| LED Indicators | |
|---|---|
| Status | 3 LEDs for PWR, RUN, and ERR |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +5.5 ~ +30 VDC |
| OFF Voltage Level | < 3.5 VDC |
| Input Impedance | 2.2 kΩ, 0.5 W |
| PWM | |
|---|---|
| Channels | 8 |
| Sink/Source (NPN/PNP) | Source |
| Load Current | 1 mA |
| Frequency | 0.2 Hz ~ 500 kHz (Non-continuous) |
| Duty Cycle | 0.1 ~ 99.9 % |
| Mode | Burst Mode, Continuous Mode |
| Trigger Start | Hardware (Start and Stop) or Software (Start and Stop) |
| CANopen | |
|---|---|
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC (DC-to-DC), 2500 Vrms (Photo-coupler) |
| Terminal Resistor | Built-in 120 Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 99 |
| No. of PDOs | 10 RxPDO, 10 TxPDO |
| PDO Mode | Event Triggered, Remotely Requested, Cyclic and Acyclic SYNC |
| Error Control | Node Guarding Protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Power | |
|---|---|
| Consumption | 3.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 × 99 × 78 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 to +75 °C |
| Storage Temperature | -30 to +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
