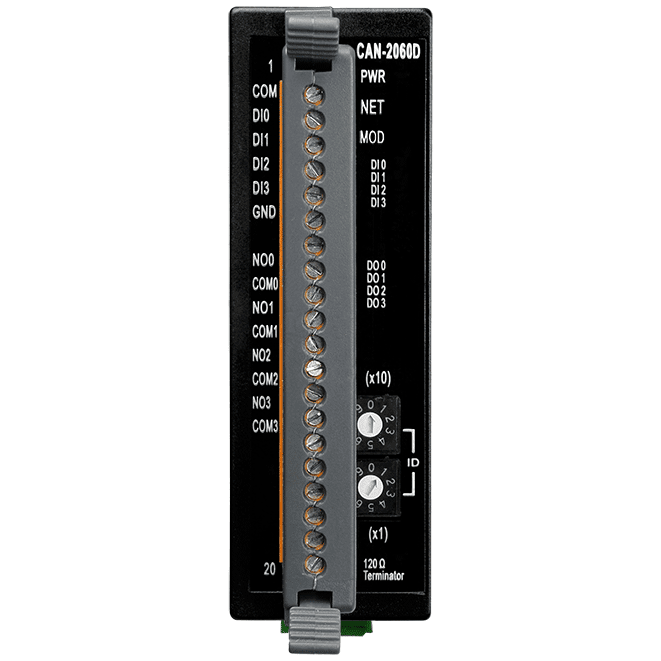

DeviceNet Slave Module of 4-channel Isolated (Wet, Dry) DI, 4-channel Relay Output
Features
- DeviceNet general I/O slave devices
- Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
- Group 2 Only Server (non UCMM-capable)
- Connection supported:
- • 1 connection for Explicit Messaging
- • 1 connection for Polled I/O
- • 1 connection for Bit-Strobe I/O connection
- Support DeviceNet heartbeat and shutdown messages

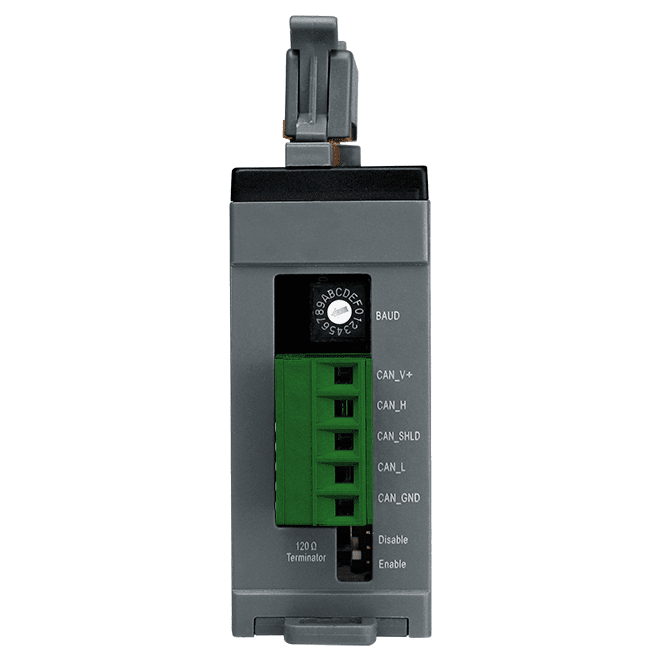

- Set the DeviceNet device station number and baud rate through the rotary switch.
- Provide EDS file for DeviceNet master interface

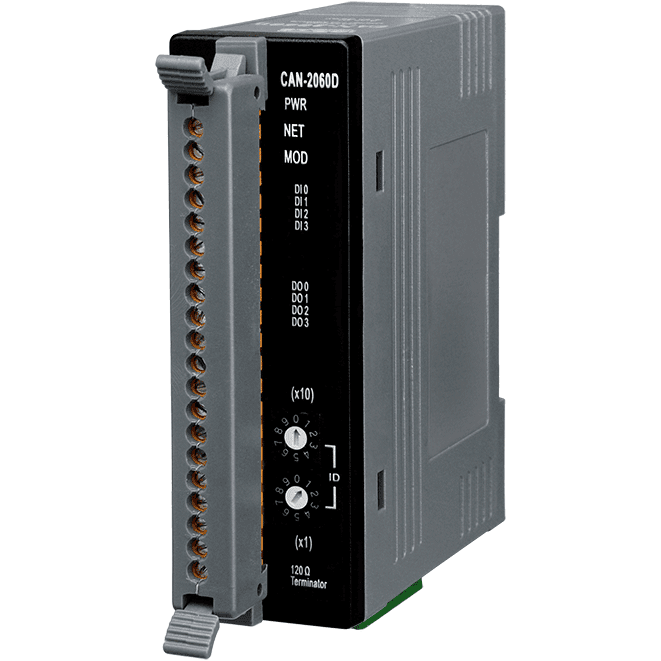

- Provide LED indicators for power status, DeviceNet status, terminal resistor status, and digital input/output channel status
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

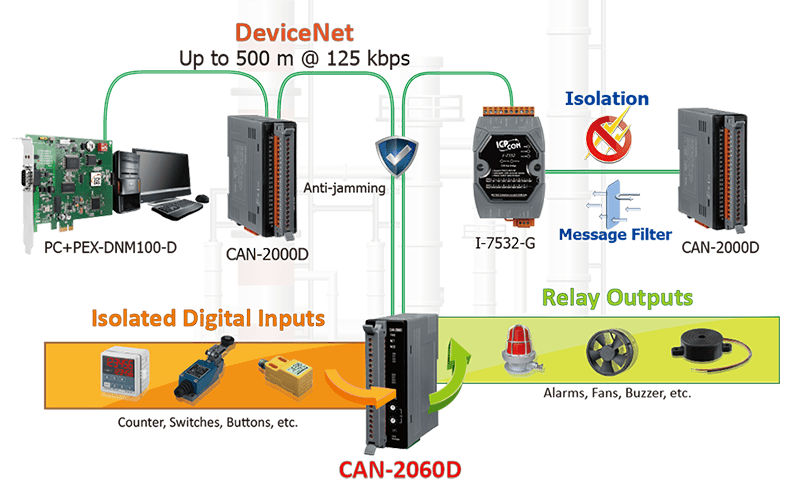

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2060D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 4 isolated digital input channels supporting both sink and source modes simultaneously, and 4 relay output channels. It can be applied to various applications, you can quickly build a DeviceNet network to approach your requirements.
Digital I/O Modules
| Model | Digital Input | Digital Output | ||||
|---|---|---|---|---|---|---|
| Channels | Contact | Sink/Source | Channels | Type | Sink/Source | |
| CAN-2053D | 16 | Wet | Sink / Source | — | — | — |
| CAN-2054D | 8 | Wet | Sink / Source | 8 | Open Collector | Sink |
| CAN-2055D | 8 | Wet | Sink / Source | 8 | Open Source | Source |
| CAN-2057D | — | — | — | 16 | Open Collector | Sink |
| CAN-2060D | 4 | Wet / Dry | Sink / Source | 4 | Relay | Form A, 5A |
