AR-300-T
AR-300-T
Accelerometer Data Logger Device with 3-ch IEPE Input, 1-ch Thermistor Input
Features
- 3 simultaneous, 16-bit resolution ADC
- Support 3-ch IEPE input, 1-ch Thermistor input, and built-in 3 mA excitation current.
- Support sampling rate: 125kHz/100kHz/50kHz/20kHz/10kHz/5kHz
- Max. Recording time: 30 m (5kHz)
- Flexible trigger modes:
• Push button trigger
• Schedule trigger
• Analog threshold trigger
• Digital input trigger
• Software remote trigger
- Supports 4 to 32 GB micro SDHC type flash
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

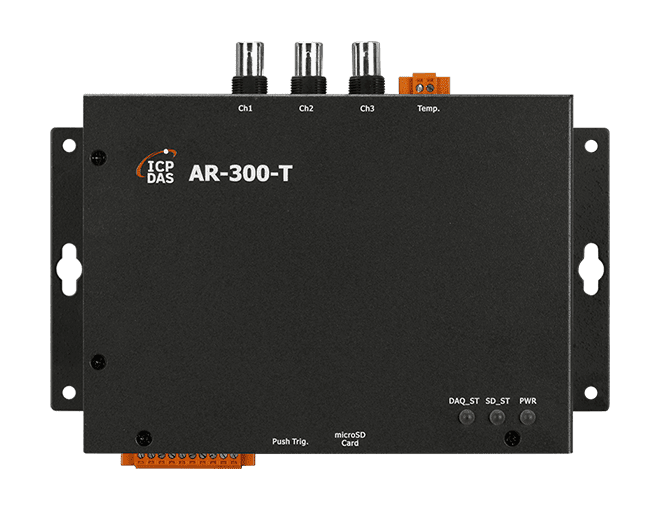

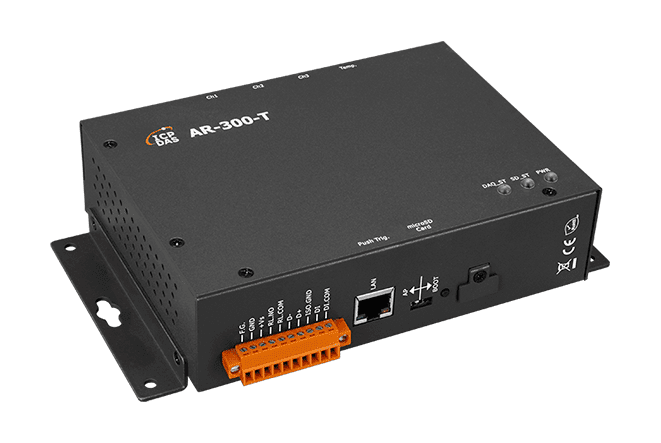

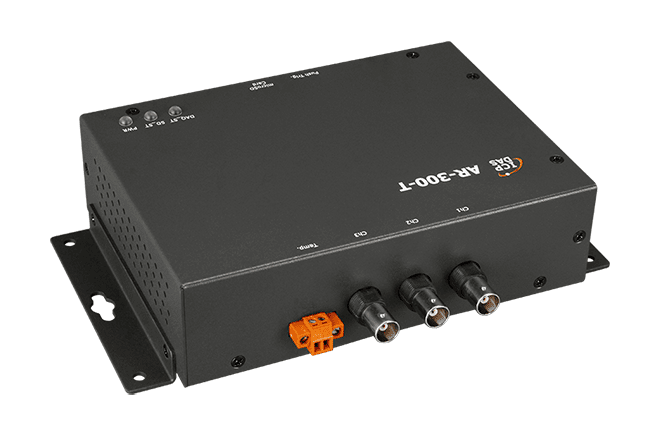

AR-300-T is a high-performance dynamic signal acquisition module equipped with 3 channel IEPE input providing simultaneous-sampling at up to 125 kHz per channel and 1 channel Thermistor input. The module has a built-in 16- bit resolution ADC and 3 mA excitation current to measure IEPE sensors, and a micro SDHC flash card for data logging. It also supports flexible trigger modes, sampling rates, and recording time span, making it ideal for signal measurement in vibration applications.
| Model | vibration | Temperature | |||||
|---|---|---|---|---|---|---|---|
| Type | Channel | Sample Rate(kHz) | Range | Type | Channel | Range | |
| AR-200 | IEPE | 2 | 5, 10, 20, 50, 100, 200 | Voltage: ±10 V Current: 3 mA |
- | - | - |
| AR-300-T | 3 | 5, 10, 20, 50, 100, 125 | Thermistor | 1 | 0 °C ~ +80 °C | ||
| AR-400
|
4 | - | - | - | |||
| Note: When using IEPE sensors. The capacitance of the cable, output level of the sensor, and amount of IEPE current supplied to IEPE sensors are variables which determine the frequency response. AR Series allow maximum cable length is 30 meters. | |||||||
Application
Specification
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x DAQ 1 x SD |
| Temperature Measurement | |
|---|---|
| Sensor Type | Thermistor |
| Channels | 1 |
| Range | 0 °C ~ +80 °C |
| Accuracy | ±2 °C |
| Installation | Wall-mount |
| Analog Input | |
|---|---|
| Channels | 3 (simultaneous sampling) |
| Type | IEPE |
| Range | Voltage: ±10 V Current: 3 mA |
| Resolution | 16 bit |
| Sampling Rate | 5, 10, 20, 50, 100, 125 (kHz) |
| Trigger Mode | Push-button triggering, timed triggering, threshold triggering, digital input triggering, remote triggering by utility software |
| Digital Input | |
|---|---|
| Channels | 1, Dry Contact: Source / Wet Contact: Sink or Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC to +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC max |
| Relay Output | |
|---|---|
| Channels | Form A x 1 |
| Type | Power Relay |
| Contact Rating | 5A@250 VAC (47 ~ 63 Hz) 5A@30 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 100,000 times min |
| Mechanical Endurance | 20,000,000 times min |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Power | |
|---|---|
| Consumption | 4.3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 197 x 139 x 57 (W x L x H) |
| Installation | Wall mounting, rail type |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ 80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
