R5020
R5020
Industrial Dual-SIM 5G Router with 4x LAN, Serial, GNSS & PoE
The Robustel R5020 is an industrial 5G router designed for dependable site and in-vehicle connectivity across global 5G/4G/3G bands. Built on RobustOS, it supports familiar networking features with centralized fleet operations via RCMS for monitoring, configuration, and updates.
Compliant with 3GPP Release 15, the R5020 suits three common roles: in-vehicle backhaul (passenger Wi-Fi, onboard systems), broadband failover, or primary wireless broadband where fixed lines are impractical.
Vehicle deployments are supported with E-mark certification, GNSS positioning, and an ignition-sense option to protect batteries when engines are off.
In summary, the R5010 delivers cost-effective 5G backup for SD-WAN appliances, centrally managed at scale.
For branch and enterprise use, the router can use Ethernet or Wi-Fi as primary access with automatic failover to 5G/4G. Security options include IPsec, OpenVPN and DMVPN to connect sites to core networks.
The result is reliable, scalable 5G connectivity with straightforward, centralized management, the R5020 delivers high-throughput 5G with centralized fleet management to reduce rollout time and downtime across vehicles and branches.
Features
- Global 5G/4G/3G cellular connections
- Supports Ethernet, Wi-Fi and 4G/5G internet with auto-failover
- Cost-effective industrial 5G router solution
- Fully programmable operating system with a well-documented SDK
- Multiple VPN options available including DMVPN & IPSec
- GNSS, ignition sense & E-mark features make the R5020 ideal for vehicles
- Free cloud management platform (RCMS)
- Robust metal enclosure with a compact design for DIN-rail and wall mounting
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The R5020 is Robustel's first 5G-capable router supporting global 5G, 4G, and 3G bands. It leverages a proven high-performance CPU platform and RobustOS - a mature and stable operating system developed in-house by Robustel. The R5020 is compliant with 3GPP Release 15 and is designed for the following applications:
In-vehicle Applications: Whether for passenger Wi-Fi, CCTV monitoring, ticketing, or other onboard requirements, the R5020 provides a simple and effective solution to enhance internet speeds and future-proof existing installations. It has achieved E-Mark certification for in-vehicle use and supports GNSS positioning. A version with vehicle ignition sensing is also available to protect vehicle batteries when the engine is off.
Broadband Failover: The R5020 can be configured to use Ethernet or Wi-Fi as the primary internet connection, with automatic failover to 4G/5G in the event of an outage. This provides resilience for establishments such as retail shops and small offices at a reasonable cost,ensuring sufficient bandwidth for multiple users. It supports IPsec, DMVPN, and OpenVPN protocols for secure connections to core networks.
Primary Broadband: Cellular networks now offer unlimited 5G plans at competitive prices, delivering hundreds of Mbps of internet connectivity wirelessly. For many users, the opportunity to eliminate wired connections and utilize a wireless internet solution can be both technically and commercially advantageous.
The Robustel Cloud Manager Service (RCMS) is a unified cloud-based platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
| R5020-5G-A09GL-A Vehicle ACC Global |
5G NR NSA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79 5G NR SA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79 4G LTE FDD: B1/2/3/4/5/7/8/12(B17)/13/14/18/19/20/25/26/28/29/30/32/66/71 4G LTE TDD: B34/38/39/40/41/42/43/48 4G LTE LAA: B46 3G: B1/2/3/4/5/6/8/19 |
CB, CE, UKCA, RCM, FCC, IC, AT&T, PTCRB, POSTEL, NTC, E-Mark | – |
1 x R5020 Router (B Code: B064803) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x Power Adapter |
| R5020-5G-A09GL-A PoE-PD Global |
(Same frequency bands as above) | CB, CE, UKCA, RCM, FCC, IC, AT&T, PTCRB, POSTEL, NTC, E-Mark | – |
1 x R5020 Router (B Code: B064802) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x Power Adapter |
| R5020-5G-A25GL-B PoE-PD Global |
5G NR NSA/SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 4G LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 4G LTE TDD: B34/38/39/40/41/42/43/48 4G LTE LAA: B46 3G: B1/2/4/5/8/19 |
– | A006400811 |
1 x R5020 Router (B Code: B006400809) 1 x Wall Mounting Kit |

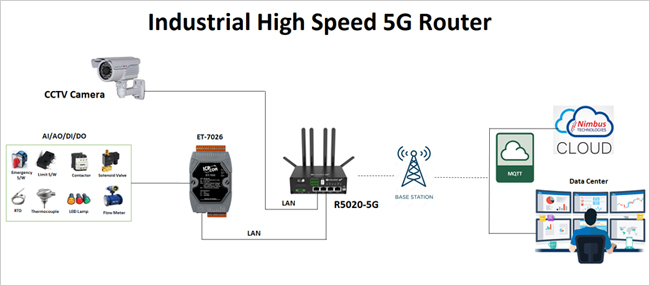

Application
Specification
System Architecture
| Operating System | RobustOS Pro |
| CPU | Dual-core MIPS, 880 MHz |
| RAM | 512MB |
| Flash | 32MB |
Cellular
| Supported Technologies | 5G, 4G/LTE, 3G |

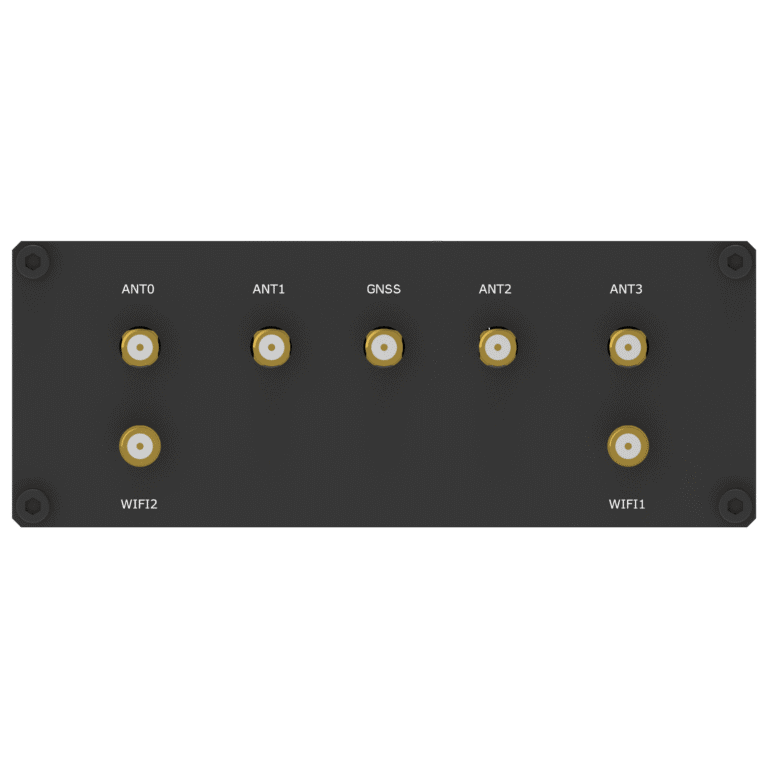

| Antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | Number of ports 4 x 10/100/1000 Mbps, 4 x LAN by default, can be configured as 1 x WAN + 3 x LAN |
| Magnet Isolation Protection | 1 KV |
Ethernet
| PoE Ports | ETH |
| ETH0 | 802.3at PD |
| PoE Voltage | Possibility to power up throught ETH 44 ~ 57 V DC |
Serial Port
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 5-pin 3.5 mm female socket |
| ESD Protection | ±8 KV air discharge, ±4 KV contact discharge |
| Baud Rate | 300 bps ~ 115200 bps |
| Signal Definition | RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) |
Digital Input/Output
| DI/DO Ports | 1 x DI + 1 x DO, wet contact |
| Connector | 2 x 5-pin 3.5 mm female socket |
| Absolute Maximum VDC | +30 V DC (DI), +30 V DC (DO) |
| Absolute Maximum ADC | 100 mA (DO) |
| Signal Definition | IN, OUT, IGND, OGND |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac, 2 × 2 MIMO, supporting AP and Client modes |
| Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) 5.15 ~ 5.825 GHz (5 GHz ISM band) |
| Security | WPA, WPA2, WEP, WPA3 |
| Encryption | AES, TKIP, WEP64 |
GNSS/GPS (Optional)
| GNSS Antennas | 1 |
| Connector | SMA-K |
| GNSS Frequency |
GPS: L1, L5 QZSS: L1, L5 Galileo: E1, E5a GLONASS: L1OF BDS: B1 |
Note: The GNSS antenna interface is exclusively compatible with models R5020-5G-A30EU-A and R5020-5G-A30EU-B.
Other Interfaces
| Reset Button | 1 × RST |

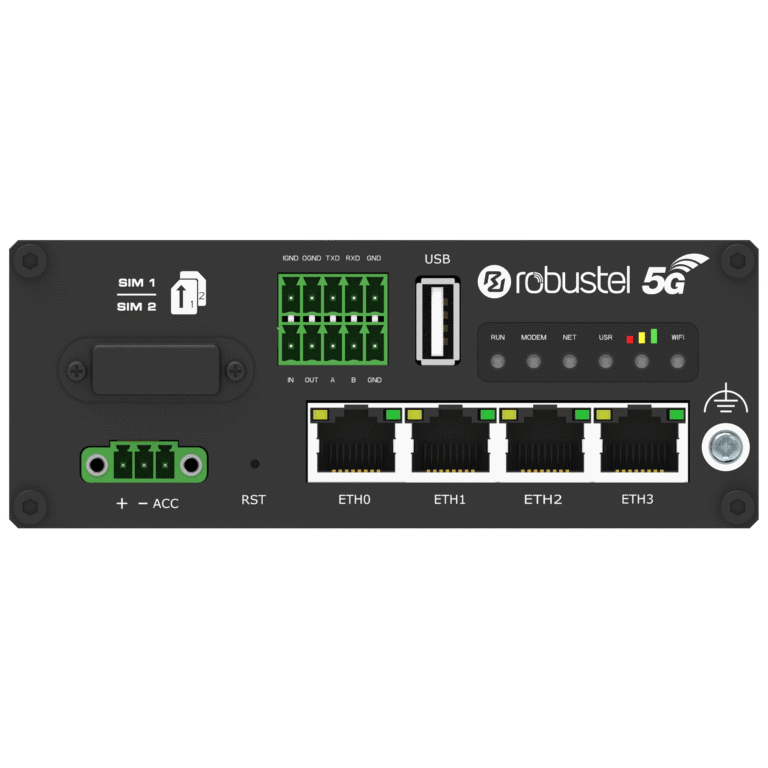

| LED Indicators | 1 × RUN, 1 × MODEM, 1 × NET, 1 × USR, 1 × RSSI, 1 × Wi-Fi |
| Watchdog | External |
| USB | 1 × USB 2.0 (host), Type A, 5 V, 500 mA |
Power Supply & Consumption
| PSU Connector | 3-pin 3.5 mm female socket with lock |
| Input Voltage |
PoE-PD version: 12/24 V DC (9 ~ 36 V DC in); 42.5 ~ 57 V (PoE-PD@ETH0) ACC version: 12/24 V DC (10 ~ 30 V DC in) Reverse polarity protection, surge protection |
| Power Consumption | Idle: 5.5 W@12 V Max: 12.5 W@12 V |
| Recommended Power Supply | 24 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 500 g |
| Dimensions | 48 x 100 x 125 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature |
-20 – +55 °C (normal operation) -25 – +70 °C (extended operation) |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 5MB |
| RAM available for SDK | 256MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0, WEEE |
| EMI |
EN 55032 Conducted Emission Class A EN 55032 Radiated Emission Class A |
| EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 3 EN 61000-4-5 (Surge) Line to line Level 3, Line to ground Level 3 EN 61000-4-6 (CS) Level 3 EN 61000-4-11 (Dips) Class 2 |
