R5010
R5010
Industrial 5G Router with 2.5GB LAN, PoE-PD and USB Connectivity
The Robustel R5010 is an industrial 5G (Release 16) router built to deliver high-performance, manageable connectivity for multi-site networks.
It supports global 5G/4G/3G bands, pairs a 2.5 GbE LAN port with PoE-PD (802.3at) for flexible installation, and offers USB modem mode so it can present as a 5G modem to firewalls and SD-WAN appliances useful when the unit is mounted externally for stronger signal.
Security and operations are enterprise-grade: IPsec, OpenVPN, WireGuard, L2TP/DMVPN options plus fleet monitoring, configuration and updates via RCMS. Typical deployments include primary 5G broadband or SD-WAN failover where rapid rollout and resilient backhaul matter.
In summary, the R5010 delivers cost-effective 5G backup for SD-WAN appliances, centrally managed at scale.
Features
- Low-cost industrial 5G router
- Global 5G/4G/3G cellular connections
- Cutting-edge 5G 3GPP Release 16 cellular interface
- 1 x 2.5 Gbps Ethernet port
- PoE-PD compatibility with IEEE 802.at standard
- USB modem mode
- Fully programmable operating system with comprehensive SDK support
- Multiple VPN options available including DMVPN, IPsec, L2TP, and more
- Free cloud management platform (RCMS)
- Robust metal enclosure with a compact design for DIN-rail and wall mounting
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The R5010 is Robustel's latest 5G-capable router supporting global 5G, 4G, and 3G bands. It utilizes our proven high-performance RobustOS - an in-house developed operating system that has successfully undergone extensive third-party penetration testing. The R5010 is compliant with 3GPP Release 16 and is designed for the following applications:
Primary Broadband: Cellular network operators now offer unlimited 5G plans at competitive prices. For many businesses, transitioning from wired connections to wireless internet can be both technically and commercially beneficial.
SD-WAN: While many appliances come with built-in cellular options, the R5010 provides a cost-effective solution for adding a 5G backup route. Its ability to be positioned externally enhances the likelihood of receiving a strong 5G signal.
The Robustel Cloud Manager Service (RCMS) is a unified cloud-based platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
|
R5010-A-5G-A28EU Global |
5G NR SA/NSA: n1/3/5/7/8/20/28/38/40/41/75/76/77/78 4G LTE FDD: B1/3/5/7/8/20/28/32 4G LTE TDD: B38/40/41/42/43 3G: B1/5/8 |
CE, UKCA, CB, RCM | A011300001 |
|
|
R5010-A-5G-A28EU Global |
5G NR SA/NSA: n1/3/5/7/8/20/28/38/40/41/75/76/77/78 4G LTE FDD: B1/3/5/7/8/20/28/32 4G LTE TDD: B38/40/41/42/43 3G: B1/5/8 |
CE, UKCA, CB, RCM | A011300002 |
|

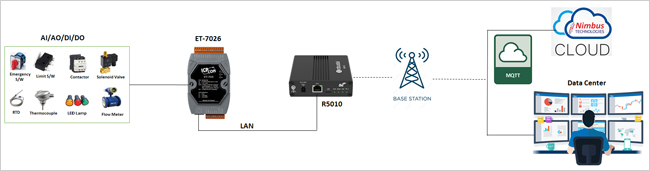

Application
Specification
System Architecture
| Operating System | RobustOS Pro |
| CPU | System on Module |
| RAM | 110MB |
| Flash | 45MB |
Cellular
| Supported Technologies | 5G, 4G/LTE, 3G |

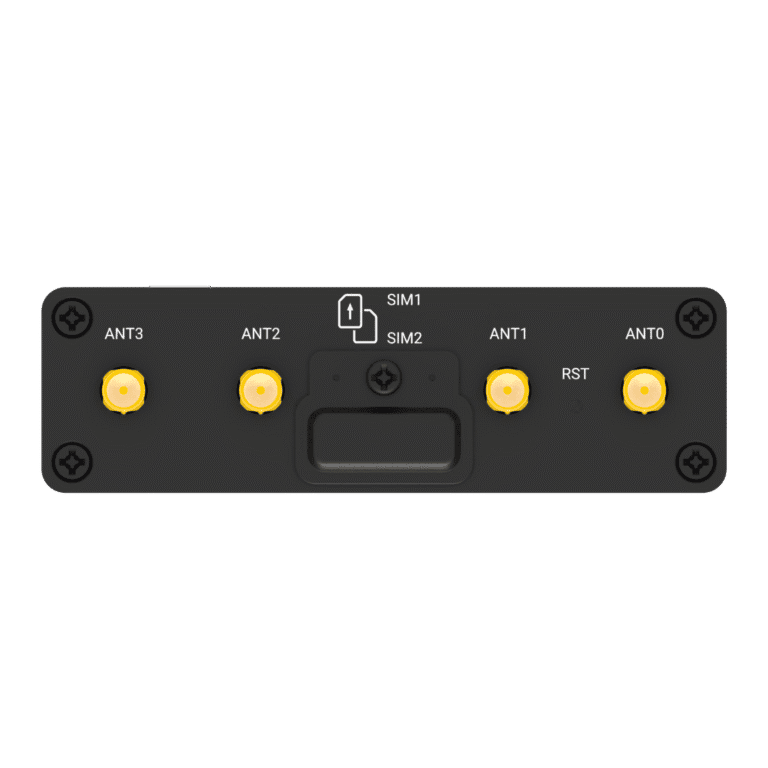

| Antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 1 x 2.5 Gbps, LAN |
| Magnet Isolation Protection | 1 KV |
Ethernet
| PoE Ports | ETH |
| PoE Standards | 802.3at PD |
| PoE Voltage | Possibility to power up throught ETH 44 ~ 57 V DC |
Other Interfaces
| Reset Button | 1 x RST |

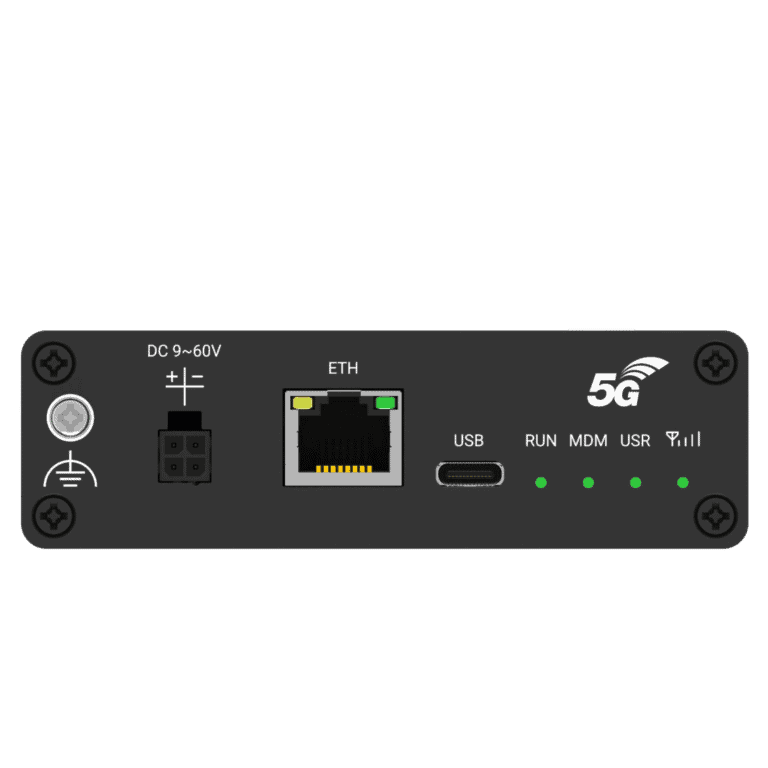

| LED Indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI |
| Watchdog | External |
| USB | 1 x USB 3.1 (Type C), for power supply, network supply and debug |
Power Supply & Consumption
| PSU Connector | 4-pin Micro-Fit socket |
| Input Voltage |
12/24/48 V DC, 9 ~ 60 V DC 5 V/3 A by USB Type C Port Reverse polarity protection, surge protection |
| Power Consumption |
Idle: 1.5 W@12 V Max: 15 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 276 g |
| Dimensions | 30 x 94 x 100 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -40 – +70 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 10MB |
| RAM available for SDK | 45MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| Testing |
IEC 60068-2-6 (Sinusoidal Vibration) IEC 60068-2-27 (Mechanical Shock) IEC 60068-2-64 (Random Vibration) |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 3, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Power Ports Level 2, Signal Ports Level 2 EN 61000-4-5 (Surge) Line to line Level 2, Line to ground Level 2 EN 61000-4-6 (CS) Level 2 EN 61000-4-11 (Dips) Class 2 |
