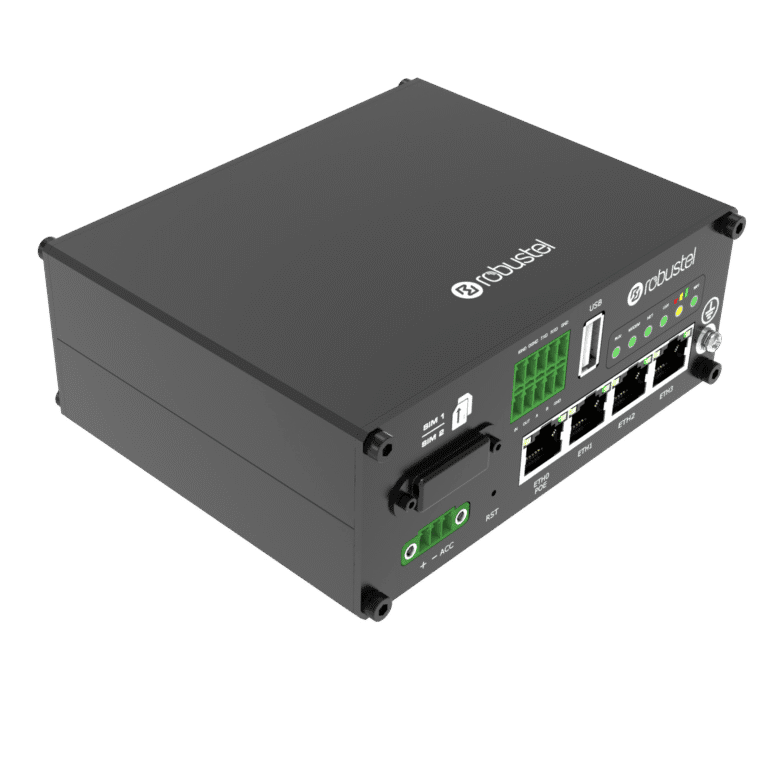

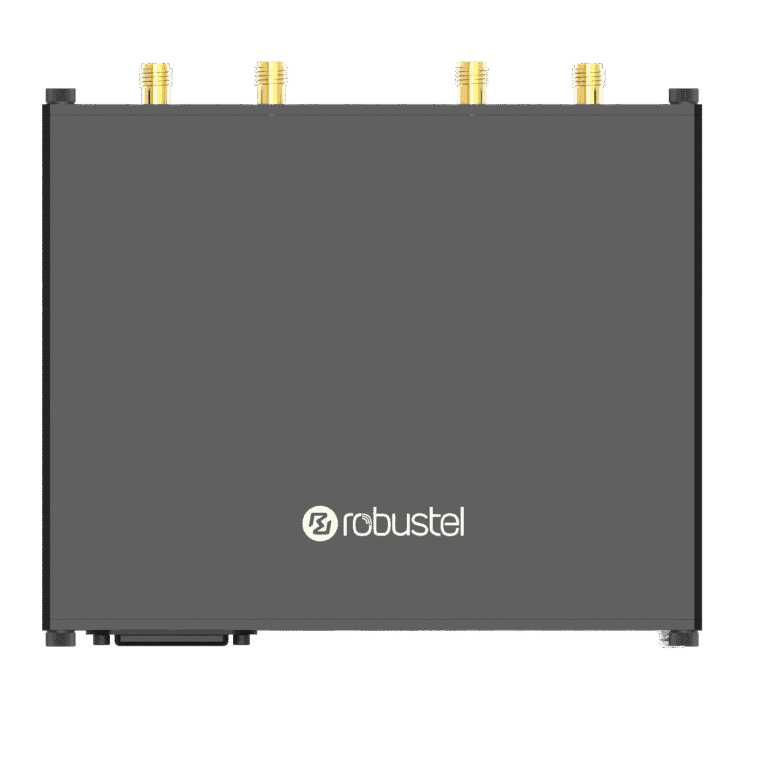

Industrial Dual-SIM 4G/LTE Router with 4 x Gigabit LAN Ports
The Robustel R2110-4L is an industrial LTE Cat-4 router designed for resilient site connectivity and secure fleet operations. It provides four gigabit Ethernet ports configurable as 1×WAN + 3×LAN, with dual-SIM and link backup across cellular/Ethernet/Wi-Fi to maintain service continuity; cold/warm backup and load balancing further optimise uptime and bandwidth.
Security is comprehensive with IPsec, OpenVPN, GRE and WireGuard, managed via Web/CLI/SNMP and at scale through RCMS. PoE-PD (optional) on ETH0 simplifies installation near antennas or panels.
Integration is straightforward: dual-band 802.11ac Wi-Fi, RS-232/RS-485, DI/DO, plus USB and micro-SD for field workflows. Built on RobustOS with a C/C++ SDK and App Centre, the R2110-4L lets teams tailor networking without changing upstream applications.
An IP30 metal enclosure, 9-36 V DC input, and desktop/wall/DIN-rail mounting suit control cabinets, remote sites and in vehicle applications.
Features
- Supports WWAN, WAN, WLAN link backup and ICMP detection
- Supports cold backup , warm backup and load balancing
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE
- Ignition sensing(optional)
- Management and maintenance via Web/CLI/SNMP/RCMS
- Robust industrial design desktop or wall mounting or DIN rail mounting
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The Robustel High Speed Smart LTE /LTE-A Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
R2110 is a powerful platform developed based on RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with excellent user experience. Meanwhile, RobustOS offers Software Development Kit (SDK) allows partners and customers to develop IoT applications by using C, Python or Java. It also provides various Apps to meet fragmented IoT market demands.
Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
| R2110-4L EMEA + SE Asia |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
E-Mark, CE, UKCA | A004400703 | 1 × R2110 Router (B Code: B044746) |
| R2110-4L EMEA + SE Asia PoE-PD |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
E-Mark, CE, UKCA | A004400704 | 1 × R2110 Router (B Code: B044722) |
| R2110-4L Global |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400705 | 1 × R2110 Router (B Code: B044751) |
| R2110-4L Global PoE-PD |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400706 | 1 × R2110 Router (B Code: B044730) |
| R2110-4L Global GNSS |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400707 | 1 × R2110 Router (B Code: B044748) |
| R2110-4L Global GNSS + PoE-PD |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400708 | 1 × R2110 Router (B Code: B044744) |

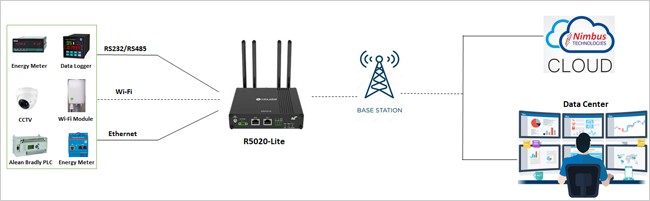

Application
Specification
System Architecture
| Operating System | RobustOS |
| CPU | Dual-core MIPS, 880 MHz |
| RAM | 512MB |
| Flash | 32MB |
Cellular
| Supported Technologies | 4G/LTE, 3G, 2G |
| Antennas | 2 (MAIN + DIV) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 4 x 10/100/1000 Mbps, 4 x LAN by default, can be configured as 1 x WAN + 3 x LAN |
| Magnet Isolation Protection | 1 KV |
PoE In (Optional)
| PoE Ports | WAN1 |
| PoE Standards | 802.3at PD |
Serial Port
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 3-pin on 2 x 5-pin 3.5 mm female socket |
| Baud Rate | 300 bps – 115200 bps |
| Signal Definition | RS-232: TXD, RXD, GND RS-485: A, B |
Digital Input/Output
| DI/DO Ports | 1 x DI + 1 x DO (wet contact) |
| Connector | 2 x 2-pin on 2 x 5-pin 3.5 mm female socket |
| Isolation | 3.75 KV DC |
| Absolute Maximum VDC | +30 V DC (DI), +30 V DC (DO) |
| Absolute Maximum ADC | 100 mA (DO) |
| Signal Definition | DI+, DI-, DO+, DO- |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
| Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) 5.18 – 5.825 GHz (5 GHz ISM band) |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | AES, TKIP, WEP64 |
GNSS/GPS (Optional)
| GNSS Antennas | 1 |
| Connector | SMA-K with 50 ohms impedance |
| GNSS Frequency | GPS/QZSS/GOLNASS/Galileo/BeiDou |
| Tracking sensitivity | GNSS: greater than -148 dBm |
| Horizontal position accuracy | GNSS: 2.5 m |

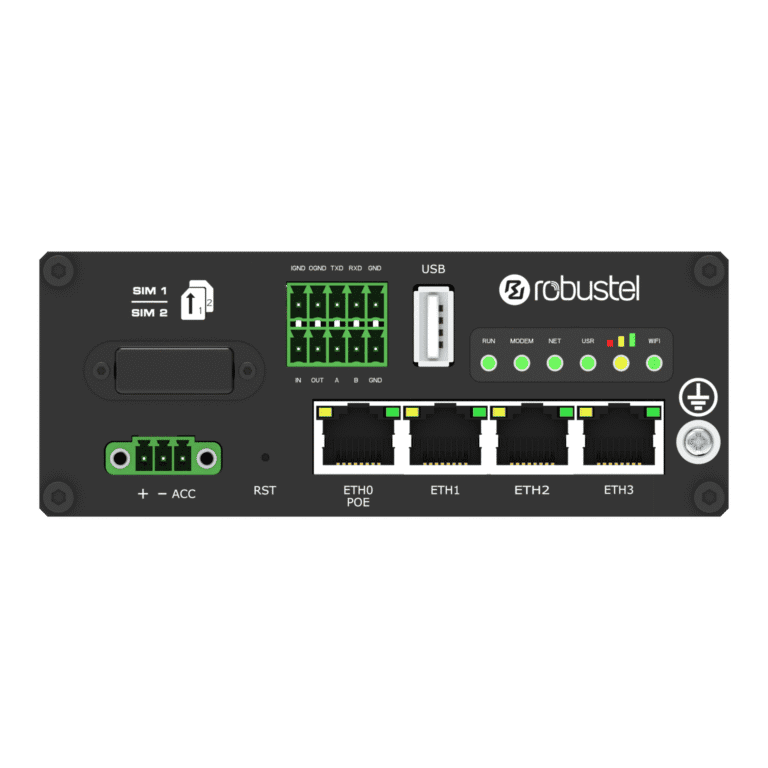

Other Interfaces
| Reset Button | 1 × RST |
| LED Indicators | 1 × RUN, 1 × MODEM, 1 × NET, 1 × USR, 1 × RSSI, 1 × Wi-Fi |
| Watchdog | Built-in |
| SD Card | 1 x Micro SD |
| USB | 1 x USB 2.0 (host), 5 V, 500 mA |
Power Supply & Consumption
| PSU Connector | 3-pin 3.5 mm female socket with lock |
| Input Voltage |
12/24 V DC, 9 ~ 36 V DC
42.5 ~ 57.0 V (PoE-PD) Reverse polarity protection, surge protection |
| Power Consumption | Idle: 6 W@12 V Max: 16 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 500g |
| Dimensions | 48 x 100 x 125 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -35 – +55 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, WireGuard |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 16MB |
| RAM available for SDK | 64MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 2 EN 61000-4-11 (Dips) Class 2 |
