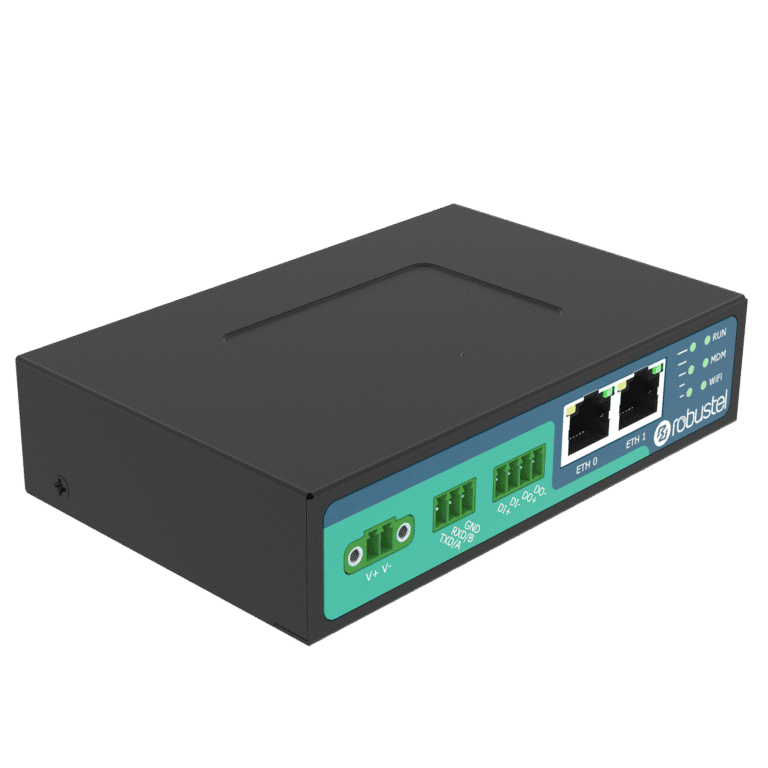

R2010-4L
R2010-4L
Industrial Dual-SIM 4G/LTE Router with 4 x Gigabit LAN Ports
The Robustel R2010 is an industrial 4G/LTE router designed for dependable site connectivity with Dual-SIM redundancy, dual Ethernet, and carrier-grade failover managed by Link Manager.
Running RobustOS (Linux-based) with a C/C++ SDK, it supports deep customization and a broad app catalogue for diverse IoT use cases. Security is comprehensive: IPsec, OpenVPN, GRE, and WireGuard are available, with Web/CLI/SMS management and RCMS for fleet monitoring, configuration, and updates.
Install flexibly with PoE-PD (optional) on the WAN port, while Wi-Fi (AP/Client, 2.4 GHz) adds wireless backhaul or local access as needed. Integration is straightforward: RS-232/RS-485, DI/DO, and LAN/WAN modes simplify connection to PLCs, meters, and on-site controllers.
Built for harsh environments, the metal IP30 enclosure supports 9–36 V DC input and –35 to +75 °C operation, with desktop, wall, or DIN-rail mounting.
Features
- Dual-SIM redundancy for continuous cellular network connections
- Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
- WAN – Static/DHCP Client
- RobustOS + SDK + Apps
- IPsec/OpenVPN/GRE/Wireguard VPN capabilities
- Management and maintenance via Web/RCMS Cloud
- Auto reboot via SMS/time schedule
- Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The Robustel R2010 Industrial Cellular Gateway is a rugged, versatile 4G Gateway with dual Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.
The R2010 runs on Robustel’s own Linux based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++. It also provides rich Apps to meet fragmented IoT market demands such as: RobustVPN - Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP Gateway”
RCMS is Robustel’s free router monitoring service that is fully compatible with the R2010. It allows customer to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network and much more can then be viewed on a per router basis. Over-the-air updates are supported for Firmware, router configuration and Apps serving as essential ‘insurance’ if anything was not quite right during deployment.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
| R2110-4L EMEA + SE Asia |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
E-Mark, CE, UKCA | A004400703 | 1 × R2110 Router (B Code: B044746) |
| R2110-4L EMEA + SE Asia PoE-PD |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
E-Mark, CE, UKCA | A004400704 | 1 × R2110 Router (B Code: B044722) |
| R2110-4L Global |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400705 | 1 × R2110 Router (B Code: B044751) |
| R2110-4L Global PoE-PD |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400706 | 1 × R2110 Router (B Code: B044730) |
| R2110-4L Global GNSS |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400707 | 1 × R2110 Router (B Code: B044748) |
| R2110-4L Global GNSS + PoE-PD |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, UKCA, RCM |
A004400708 | 1 × R2110 Router (B Code: B044744) |

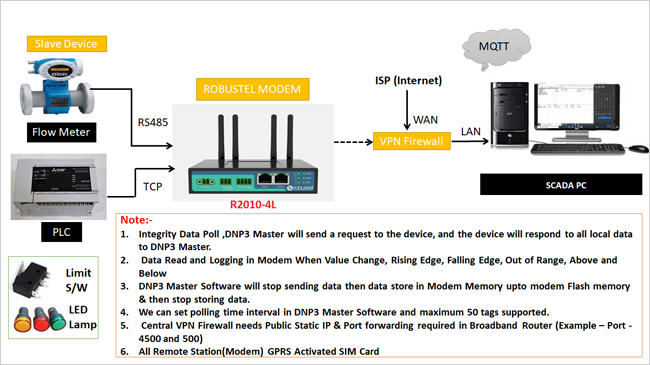

Application
Specification
System Architecture
| Operating System | RobustOS |
| CPU | Dual-core MIPS, 880 MHz |
| RAM | 512MB |
| Flash | 32MB |
Cellular
| Supported Technologies | 4G/LTE, 3G, 2G |

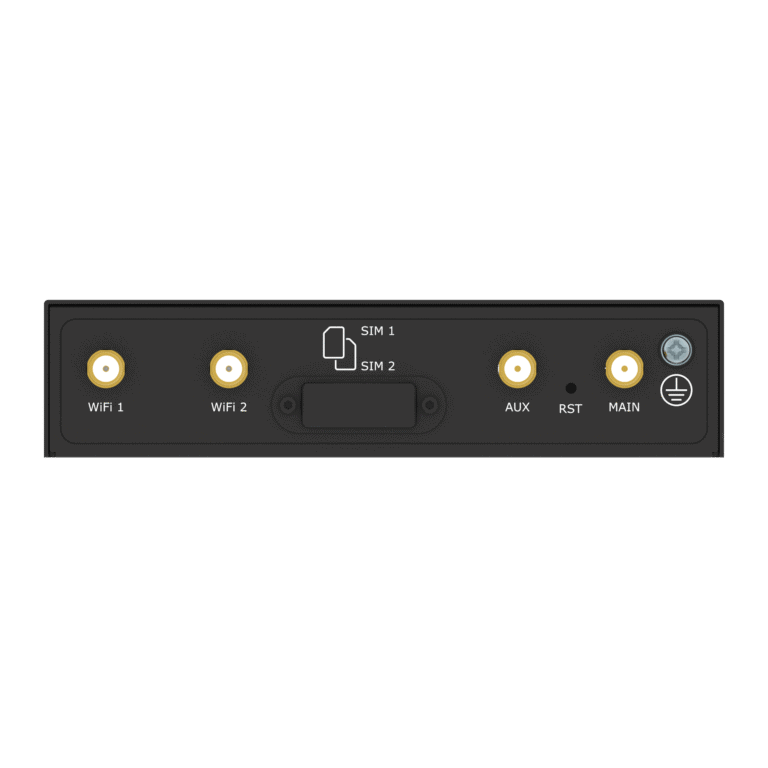

| Antennas | 2 (MAIN + DIV) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |

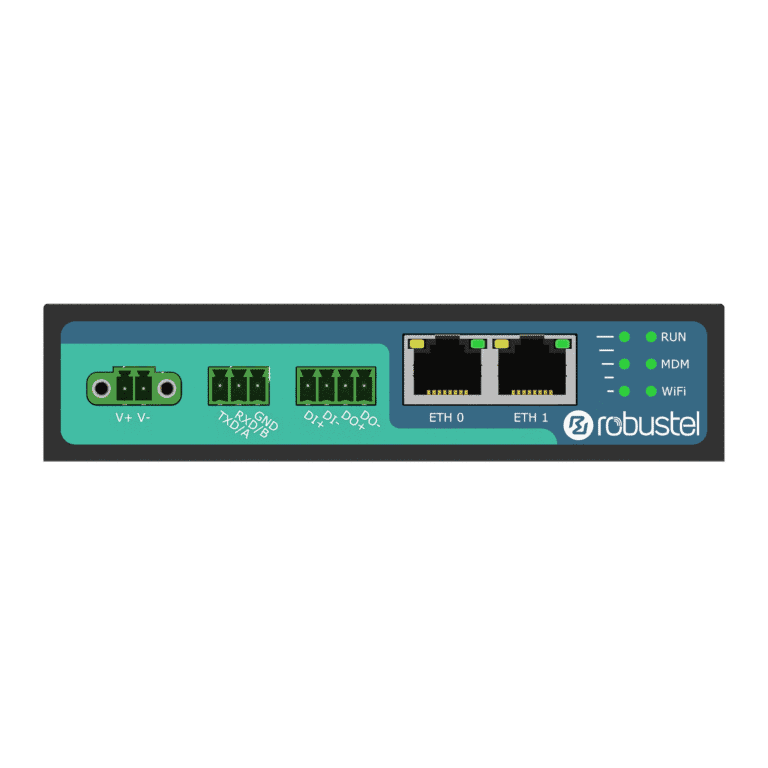

Ethernet
| Ethernet Ports | 2 x 10/100 Mbps – 1 x WAN + 1 LAN or 2 x LAN |
| Magnet Isolation Protection | 1.5 KV |
PoE In (Optional)
| PoE Ports | WAN1 |
| PoE Standards | 802.3at PD |
Serial Port
| Serial Ports | 1 x RS-232 or 1 x RS-485 (software configurable) |
| Connector | 1 x 3-pin 3.5mm female socket |
| Baud Rate | 300 bps – 115200 bps |
| Signal Definition | RS-232: TXD, RXD, GND RS-485: A, B |
Digital Input/Output
| DI/DO Ports | 1 x DI + 1 x DO (wet contact) |
| Connector | 1 x 4-pin 3.5 mm female socket |
| Level | 3.5 ~ 30 V DC = HIGH, 0 ~ 1 V DC = LOW |
| Absolute Maximum VDC | 30 V DC (DI/DO) |
| Absolute Maximum ADC | 10 mA (DI/DO) |
| Signal Definition | DI+, DI-, DO+, DO- |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 b/g/n, supporting AP and Client modes |
| Frequency Bands | 2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | 64/128 AES, TKIP |
Other Interfaces
| Reset Button | 1 × RST |
| LED Indicators | 3 x RSSI, 1 x RUN, 1 x MDM, 1 x Wi-Fi |
| Watchdog | Built-in |
Power Supply & Consumption
| PSU Connector | 2-pin 3.5mm female socket with lock |
| Input Voltage |
12/24 V DC, 9 ~ 36 V DC
44 ~ 57 V (PoE-PD) Reverse polarity protection, surge protection |
| Power Consumption | Idle: 1 W@12 V Max: 7 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 500g |
| Dimensions | 30 x 82 x 127 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -35 – +75 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, WireGuard |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 16MB |
| RAM available for SDK | 64MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 |
